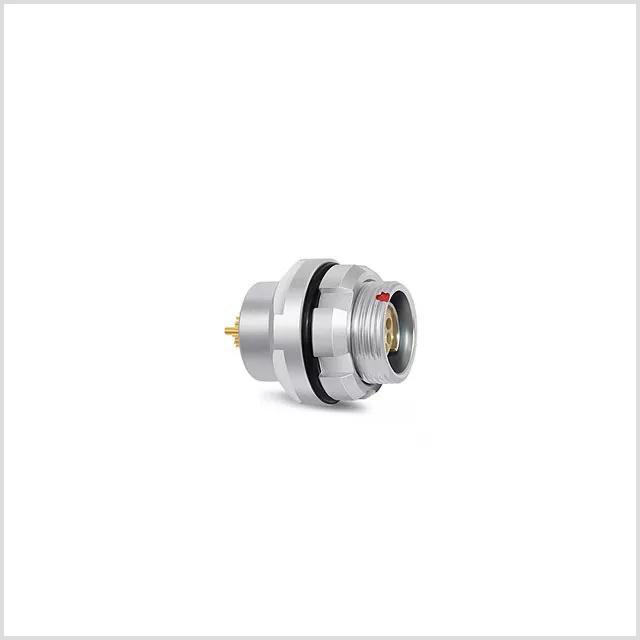

FGX Series Connectors
FGX series connectors are high-performance electrical connectors designed for reliable signal transmission in harsh environments. They feature excellent shielding, durability, and adaptability.
Save to Favorites
Overview
Specifications

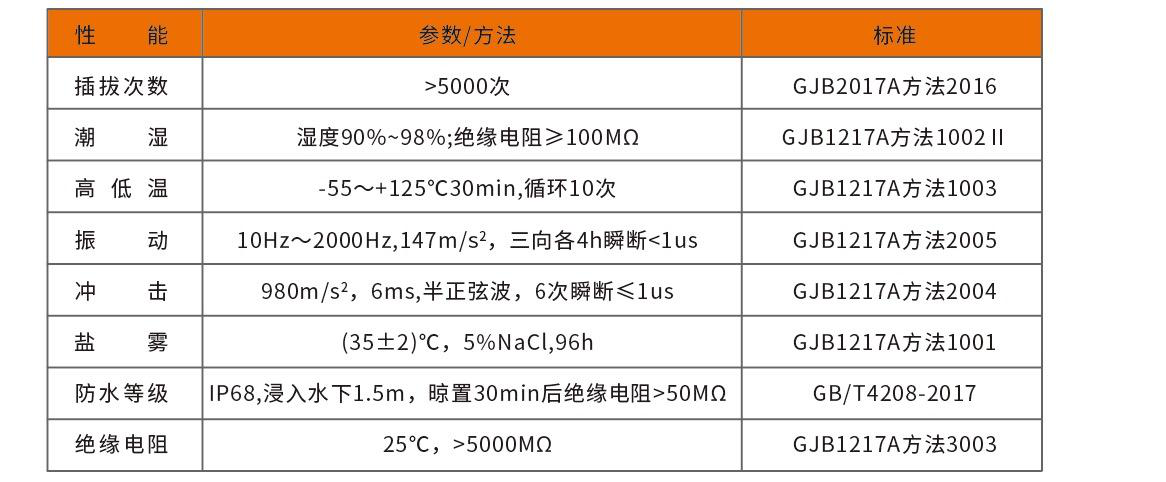

| Parameter | Value |
|---|---|
| Insertion Cycles | ＞5000次 |
| Humidity | 湿度90%~98%;绝缘电阻≥100MΩ |
| High and Low Temperature | -55~+125°C30min,循环10次 |
| Vibration | 10Hz~2000Hz,147m/s²,三向各4h瞬断＜1us |
| Shock | 980m/s²,6ms,半正弦波,6次瞬断＜1us |
| Salt Spray | (35±2)°C,5%NaCl,96h |
| Waterproof Level | IP68,浸入水下1.5m,喷置30min后绝缘电阻＞50MΩ |
| Insulation Resistance | 25°C,＞5000MΩ |

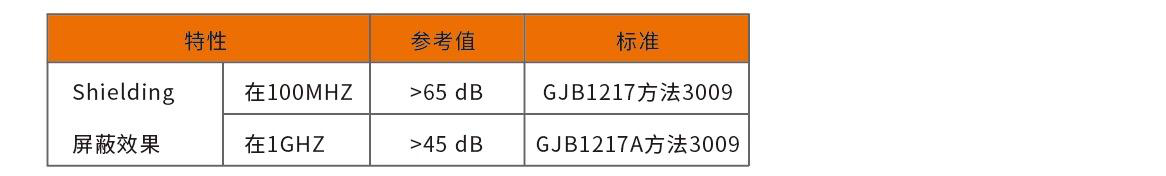

| Shielding Effectiveness at 100MHz | ＞65dB |
| Shielding Effectiveness at 1GHz | ＞45dB |

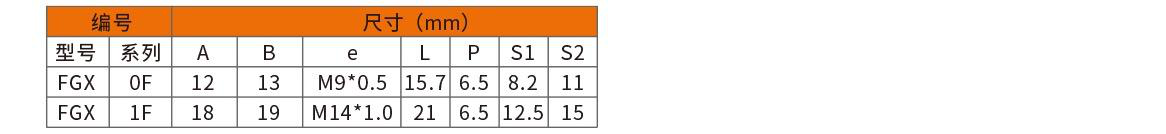

| Model 0F A | 12 |
| Model 0F B | 13 |
| Model 0F e | M9*0.5 |
| Model 0F L | 15.7 |
| Model 0F P | 6.5 |
| Model 0F S1 | 8.2 |
| Model 0F S2 | 11 |
| Model 1F A | 18 |
| Model 1F B | 19 |
| Model 1F e | M14*1.0 |
| Model 1F L | 21 |
| Model 1F P | 6.5 |
| Model 1F S1 | 12.5 |
| Model 1F S2 | 15 |

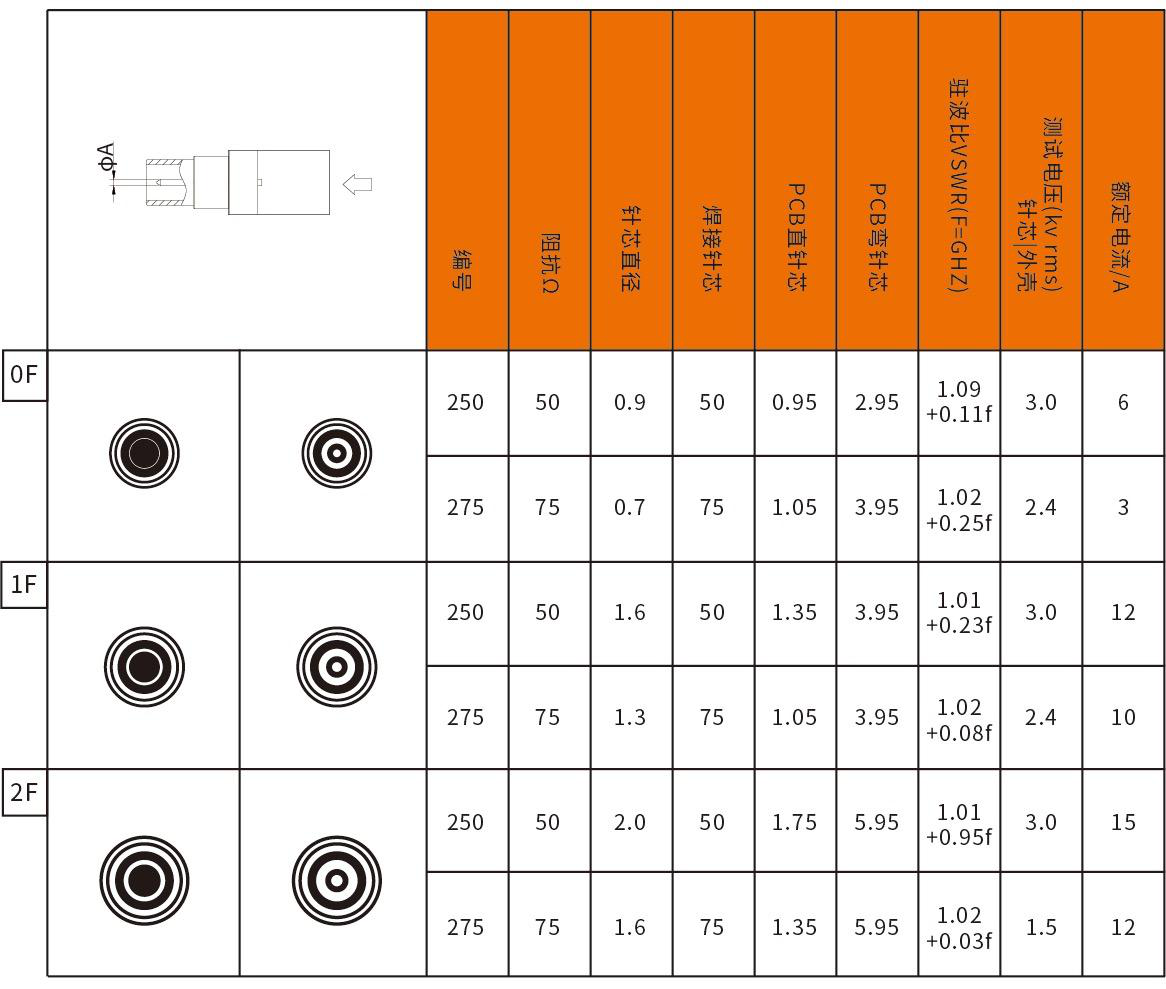

| Assembly 0F | 250 |
| Assembly 1F | 275 |
| Assembly 2F | 250 |
| Assembly 3F | 275 |

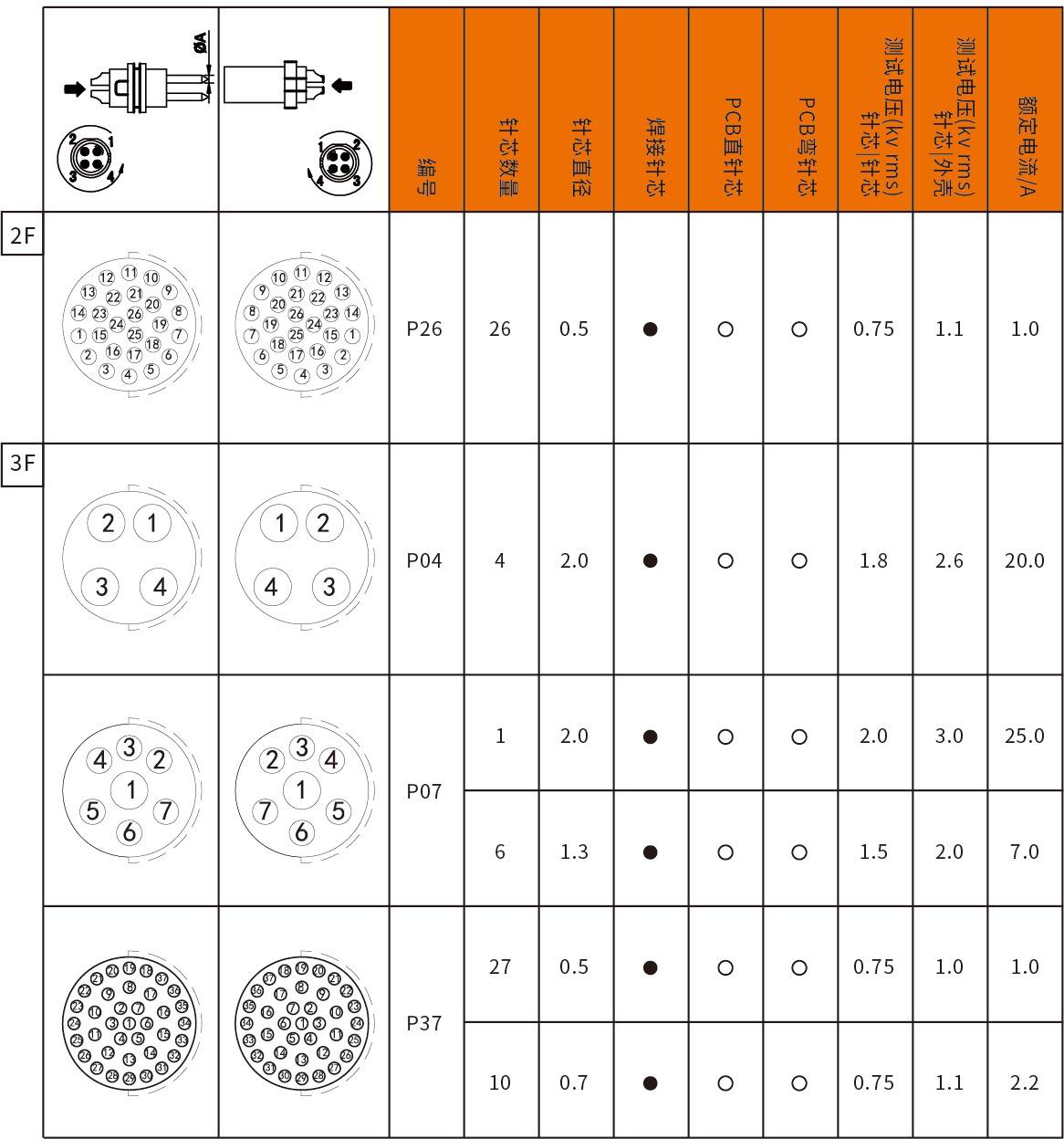

| Rated Current A 0F | 6 |
| Rated Current A 1F | 12 |
| Rated Current A 2F | 15 |
| Rated Current A 3F | 20 |
