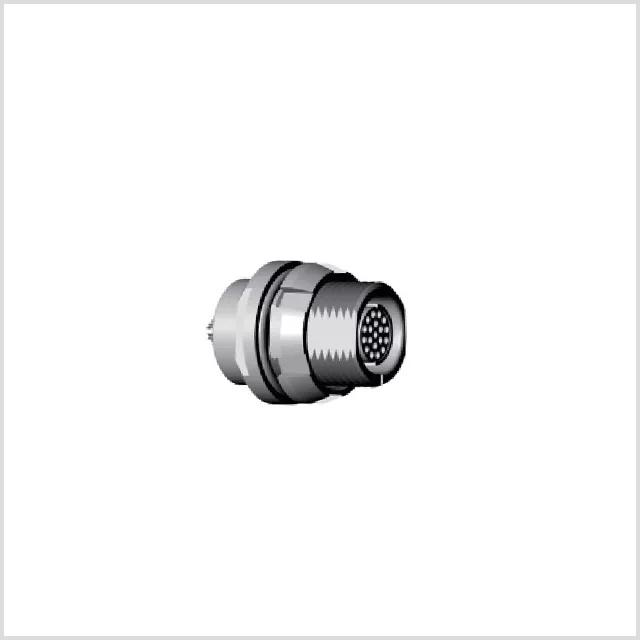

FGS Series Circular Connector
FGS Series Circular Connector is a high-performance connector designed for reliable electrical connections in various demanding environments.
Save to Favorites
Overview
Specifications

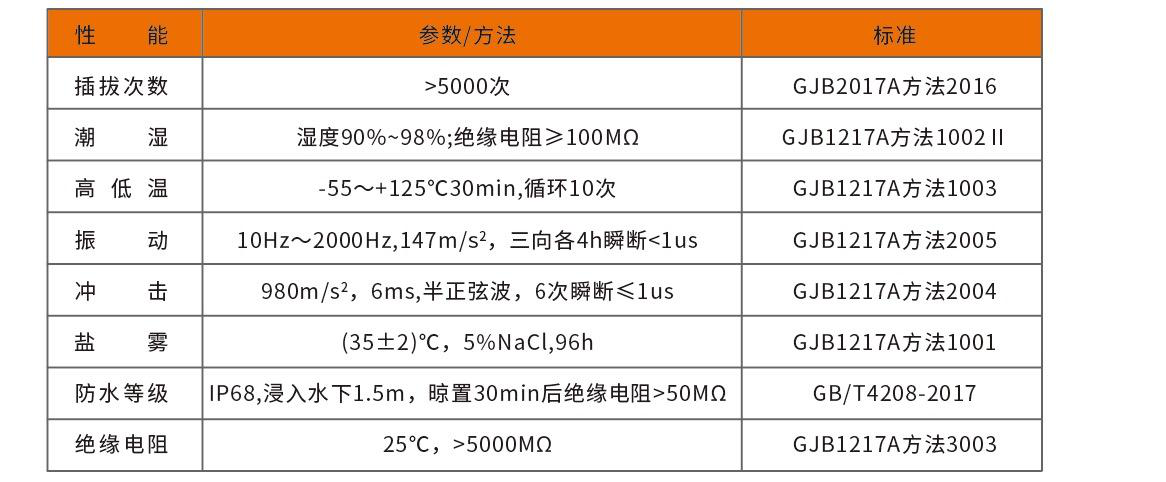

| Parameter | Value |
|---|---|
| Insertion Cycles | ＞5000次 |
| Humidity | 湿度90%~98%;绝缘电阻≥100MΩ |
| High and Low Temperature | -55~+125°C30min,循环10次 |
| Vibration | 10Hz~2000Hz,147m/s²,三向各4h瞬断＜1us |
| Shock | 980m/s²,6ms,半正弦波,6次瞬断＜1us |
| Salt Spray | (35±2)°C,5%NaCl,96h |
| Waterproof Level | IP68,浸入水下1.5m,喷置30min后绝缘电阻＞50MΩ |
| Insulation Resistance | 25°C,＞5000MΩ |

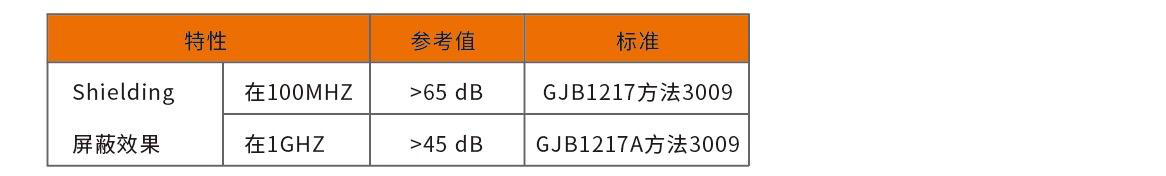

| Shielding Effectiveness at 100MHz | ＞65dB |
| Shielding Effectiveness at 1GHz | ＞45dB |

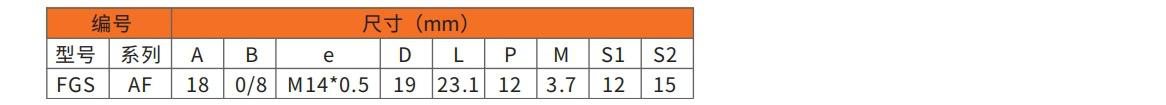

| Model | FGS |
| Series | AF |
| A | 18 |
| e | M14*0.5 |
| D | 19 |
| L | 23.1 |
| P | 12 |
| M | 3.7 |
| S1 | 12 |
| S2 | 15 |

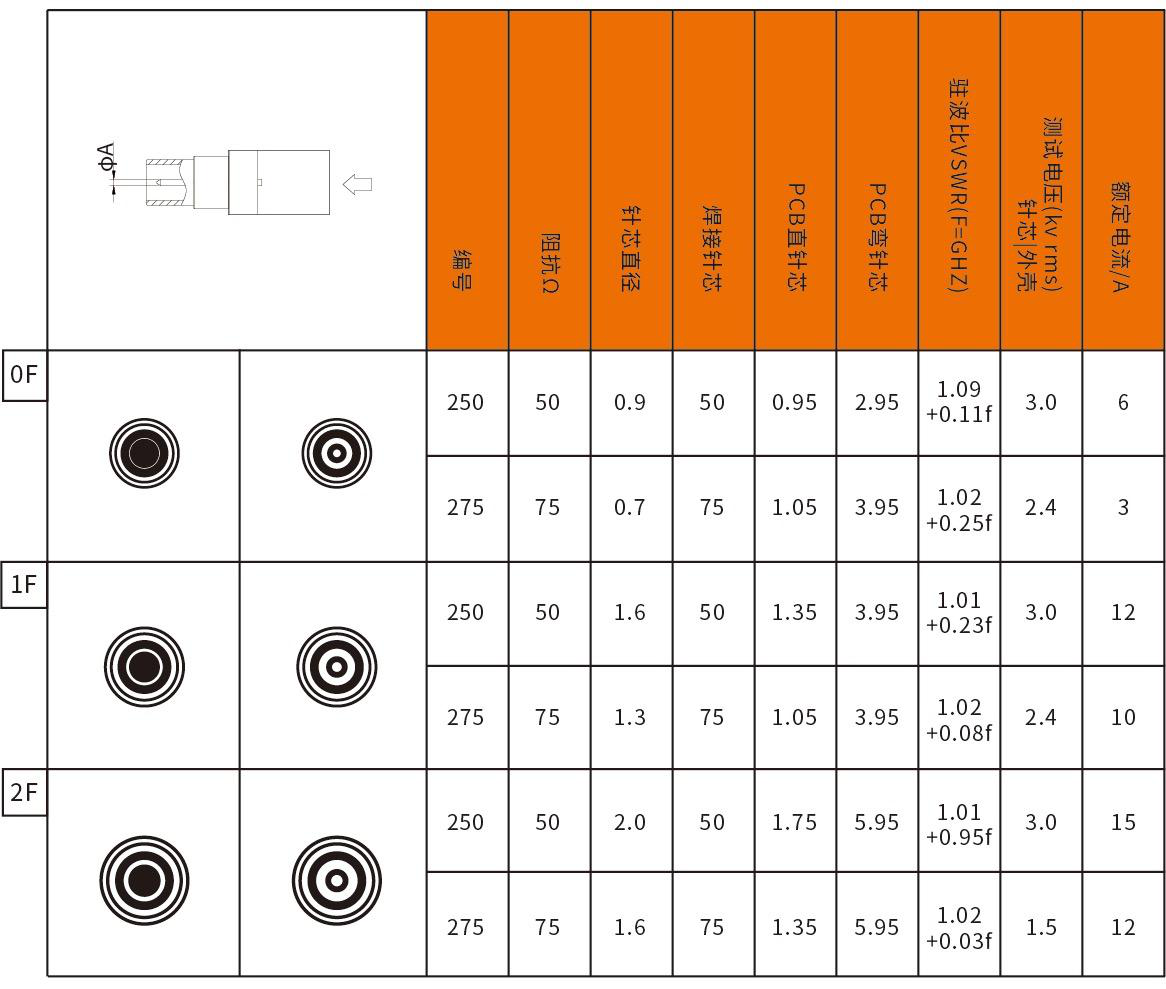

| Composite | 250 |
| U-Type Resistance | 50 |
| Space Voltage | 0.9 |
| Space Current | 50 |
| PCB DC Core | 2.95 |
| PCB Equivalent Core | 1.09+0.11f |
| Test Voltage (kVrms) | 3.0 |
| Rated Current A | 6 |
