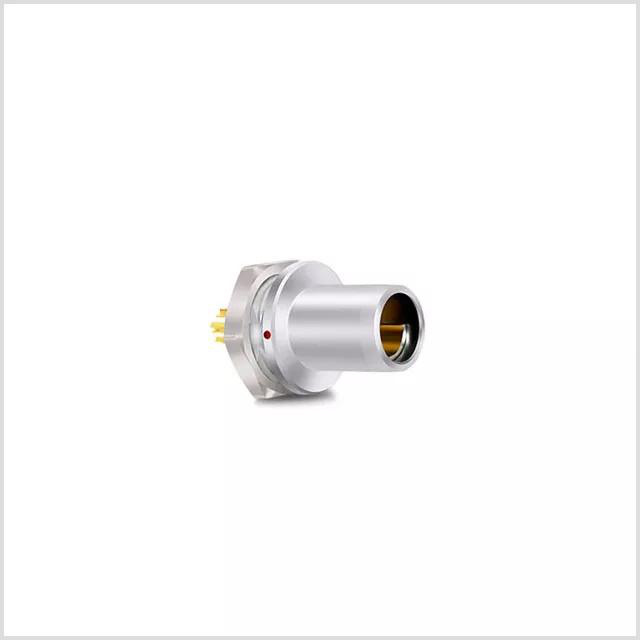

光电连接器
This product is a high-performance optical connector designed for reliable signal transmission in various environments.
Save to Favorites
Overview
Specifications

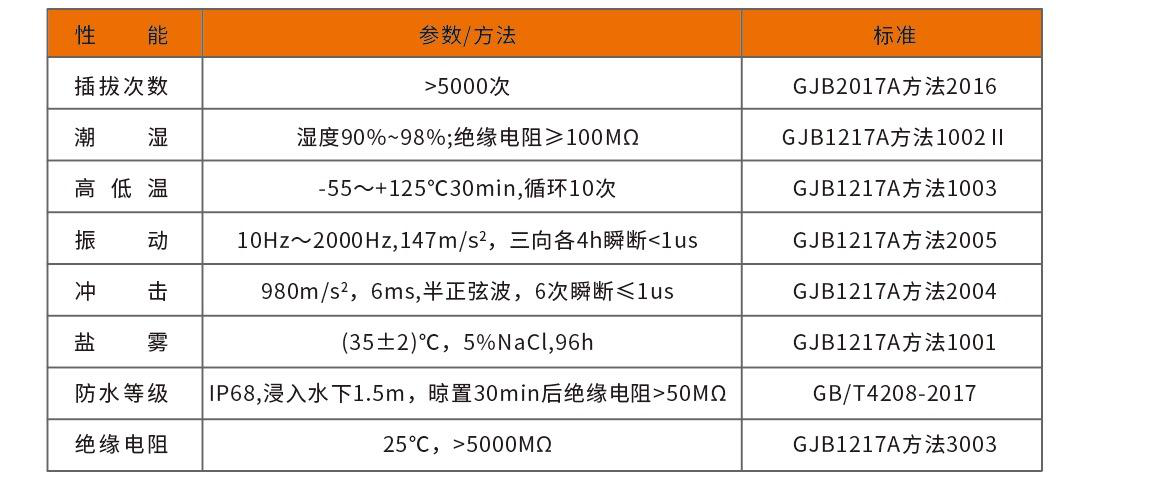

| Parameter | Value |
|---|---|
| Plugging Cycles | ＞5000次 |
| Humidity | 湿度90%~98%;绝缘电阻≥100MΩ |
| High and Low Temperature | -55~+125°C30min,循环10次 |
| Vibration | 10Hz~2000Hz,147m/s²,三向各4h瞬断＜1us |
| Shock | 980m/s²,6ms,半正弦波,6次瞬断＜1us |
| Salt Spray | (35±2)°C,5%NaCl,96h |
| Waterproof Level | IP68,浸入水下1.5m,喷置30min后绝缘电阻＞50MΩ |
| Insulation Resistance | 25°C,＞5000MΩ |

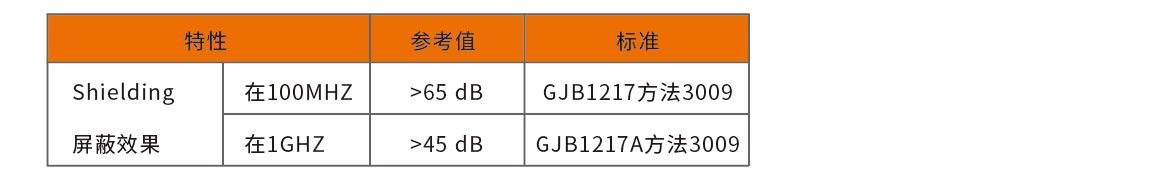

| Shielding Effectiveness at 100MHz | ＞65dB |
| Shielding Effectiveness at 1GHz | ＞45dB |

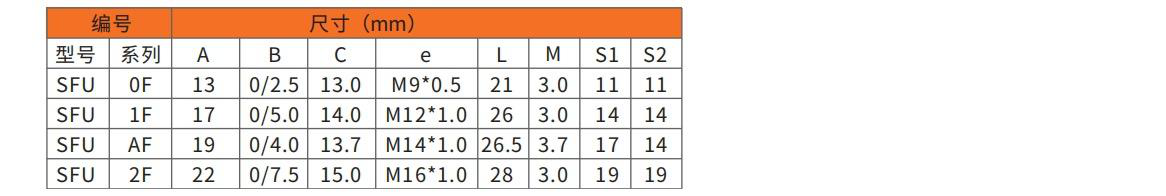

| Model SFU 0F A | 13 |
| Model SFU 0F C | 13.0 |
| Model SFU 0F e | M9*0.5 |
| Model SFU 0F L | 21 |
| Model SFU 0F M | 3.0 |
| Model SFU 0F S1 | 11 |
| Model SFU 0F S2 | 11 |
| Model SFU 1F A | 17 |
| Model SFU 1F C | 14.0 |
| Model SFU 1F e | M12*1.0 |
| Model SFU 1F L | 26 |
| Model SFU 1F M | 3.0 |
| Model SFU 1F S1 | 14 |
| Model SFU 1F S2 | 14 |
| Model SFU AF A | 19 |
| Model SFU AF C | 13.7 |
| Model SFU AF e | M14*1.0 |
| Model SFU AF L | 26.5 |
| Model SFU AF M | 3.7 |
| Model SFU AF S1 | 17 |
| Model SFU AF S2 | 14 |
| Model SFU 2F A | 22 |
| Model SFU 2F C | 15.0 |
| Model SFU 2F e | M16*1.0 |
| Model SFU 2F L | 28 |
| Model SFU 2F M | 3.0 |
| Model SFU 2F S1 | 19 |
| Model SFU 2F S2 | 19 |
