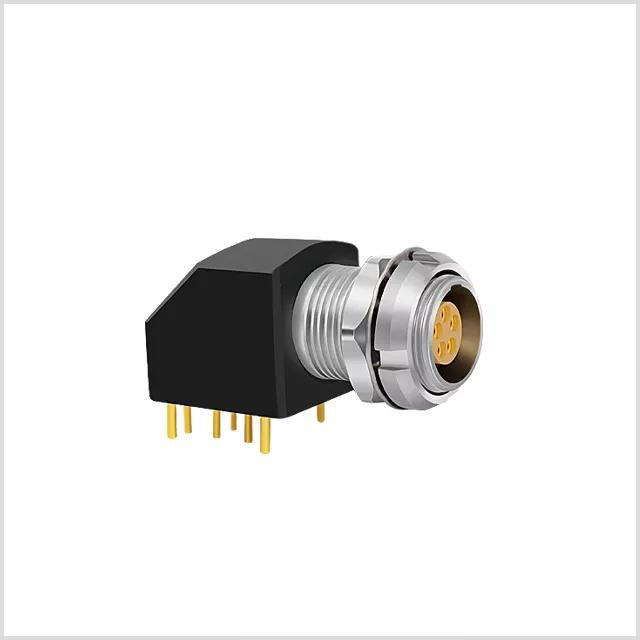

EXG Series Circular Connectors
EXG series circular connectors are designed for high-performance applications, offering reliable electrical connections with robust environmental resistance.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

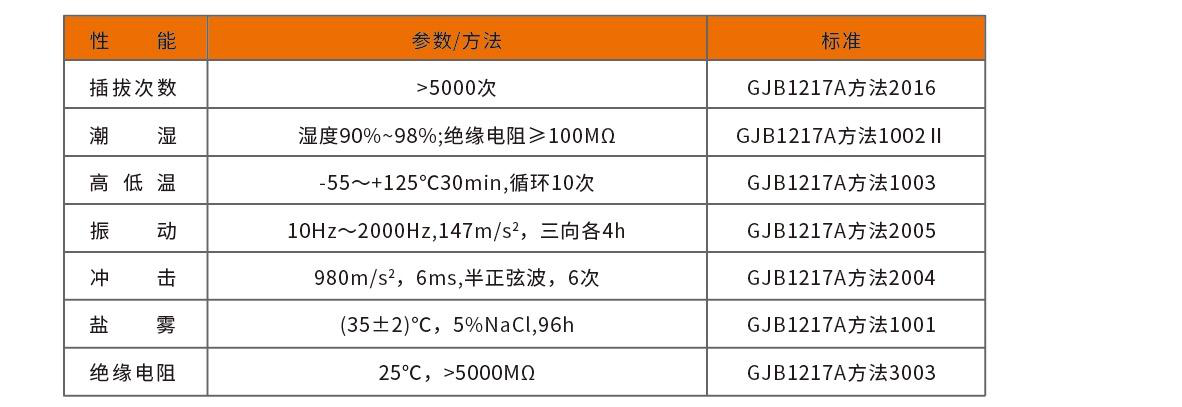

| Mating Cycles | >5000次 |
| Humidity | 湿度90%-98%;绝缘电阻≥100MΩ |
| High and Low Temperature | -55~125°C30min,循环10次 |
| Vibration | 10Hz~2000Hz,147m/s²,三向各4h |
| Shock | 980m/s²,6ms,半正弦波,6次 |
| Salt Spray | (35±2)°C,5%NaCl,96h |
| Insulation Resistance | 25°C,>5000MΩ |

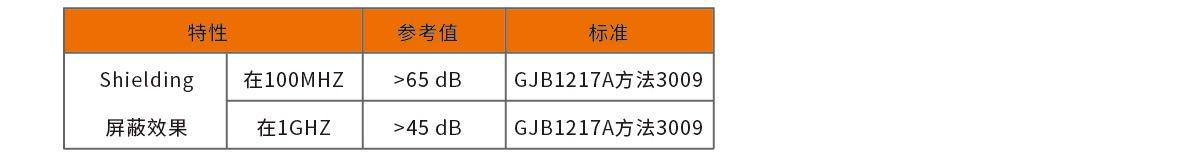

| Shielding Effectiveness at 100MHz | >65dB |
| Shielding Effectiveness at 1GHz | >45dB |

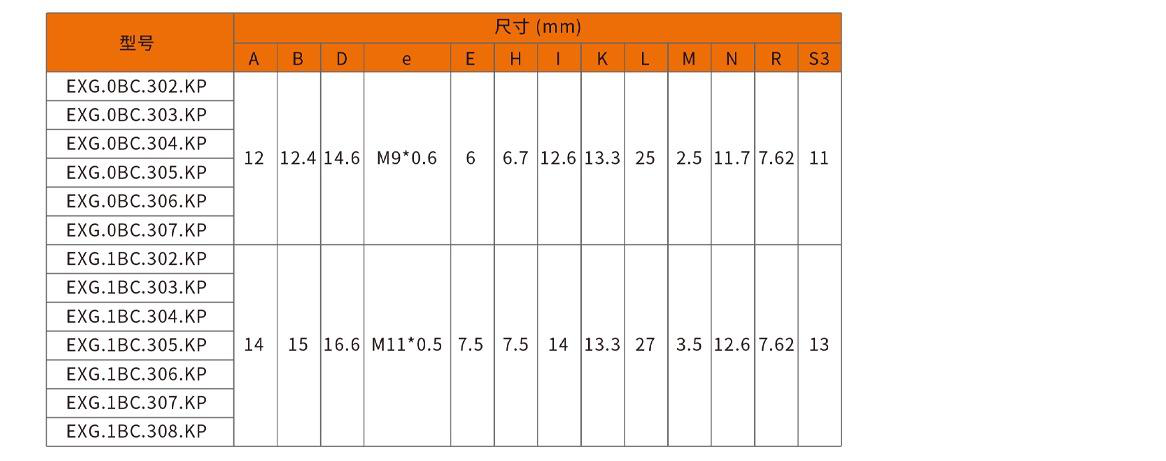

| Dimension A | 12, 14 |
| Dimension B | 12.4, 15 |
| Dimension D | 14.6, 16.6 |
| Dimension e | M9*0.6, M11*0.5 |
| Dimension e | 6, 7.5 |
| Dimension H | 6.7, 7.5 |
| Dimension I | 12.6, 14 |
| Dimension K | 13.3 |
| Dimension L | 25, 27 |
| Dimension M | 2.5, 3.5 |
| Dimension N | 11.7, 12.6 |
| Dimension R | 7.62 |
| Dimension S3 | 11, 13 |
