FHG Series Connectors
FHG series connectors are high-performance electrical connectors designed for reliable signal transmission in various industrial and military applications.
Save to Favorites
Overview
Specifications

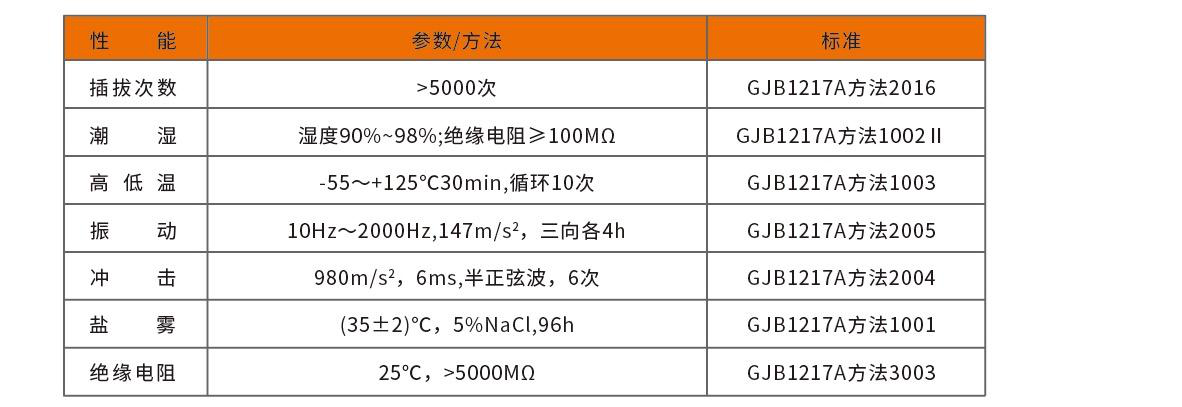

| Parameter | Value |
|---|---|
| Insertion Cycles | >5000次 |
| Humidity Resistance | 湿度90%-98%;绝缘电阻≥100MΩ |
| High and Low Temperature Resistance | -55~125°C30min,循环10次 |
| Vibration Resistance | 10Hz~2000Hz,147m/s²,三向各4h |
| Shock Resistance | 980m/s²,6ms,半正弦波,6次 |
| Salt Spray Resistance | (35±2)°C,5%NaCl,96h |
| Insulation Resistance | 25°C,>5000MΩ |

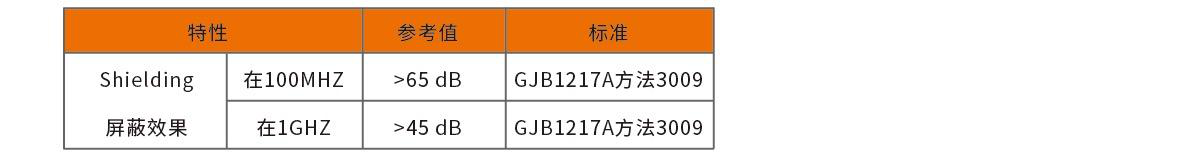

| Shielding Effectiveness at 100MHz | >65dB |
| Shielding Effectiveness at 1GHz | >45dB |

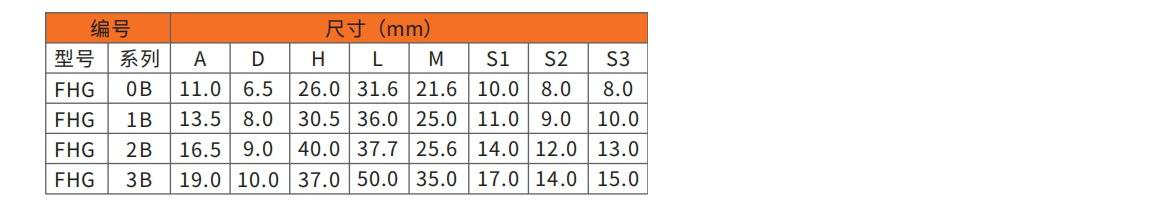

| Dimension A (mm) FHG 0B | 11.0 |
| Dimension D (mm) FHG 0B | 6.5 |
| Dimension H (mm) FHG 0B | 26.0 |
| Dimension L (mm) FHG 0B | 31.6 |
| Dimension M (mm) FHG 0B | 21.6 |
| Dimension S1 (mm) FHG 0B | 10.0 |
| Dimension S2 (mm) FHG 0B | 8.0 |
| Dimension S3 (mm) FHG 0B | 8.0 |
| Dimension A (mm) FHG 1B | 13.5 |
| Dimension D (mm) FHG 1B | 8.0 |
| Dimension H (mm) FHG 1B | 30.5 |
| Dimension L (mm) FHG 1B | 36.0 |
| Dimension M (mm) FHG 1B | 25.0 |
| Dimension S1 (mm) FHG 1B | 11.0 |
| Dimension S2 (mm) FHG 1B | 9.0 |
| Dimension S3 (mm) FHG 1B | 10.0 |
| Dimension A (mm) FHG 2B | 16.5 |
| Dimension D (mm) FHG 2B | 9.0 |
| Dimension H (mm) FHG 2B | 40.0 |
| Dimension L (mm) FHG 2B | 37.7 |
| Dimension M (mm) FHG 2B | 25.6 |
| Dimension S1 (mm) FHG 2B | 14.0 |
| Dimension S2 (mm) FHG 2B | 12.0 |
| Dimension S3 (mm) FHG 2B | 13.0 |
| Dimension A (mm) FHG 3B | 19.0 |
| Dimension D (mm) FHG 3B | 10.0 |
| Dimension H (mm) FHG 3B | 37.0 |
| Dimension L (mm) FHG 3B | 50.0 |
| Dimension M (mm) FHG 3B | 35.0 |
| Dimension S1 (mm) FHG 3B | 17.0 |
| Dimension S2 (mm) FHG 3B | 14.0 |
| Dimension S3 (mm) FHG 3B | 15.0 |

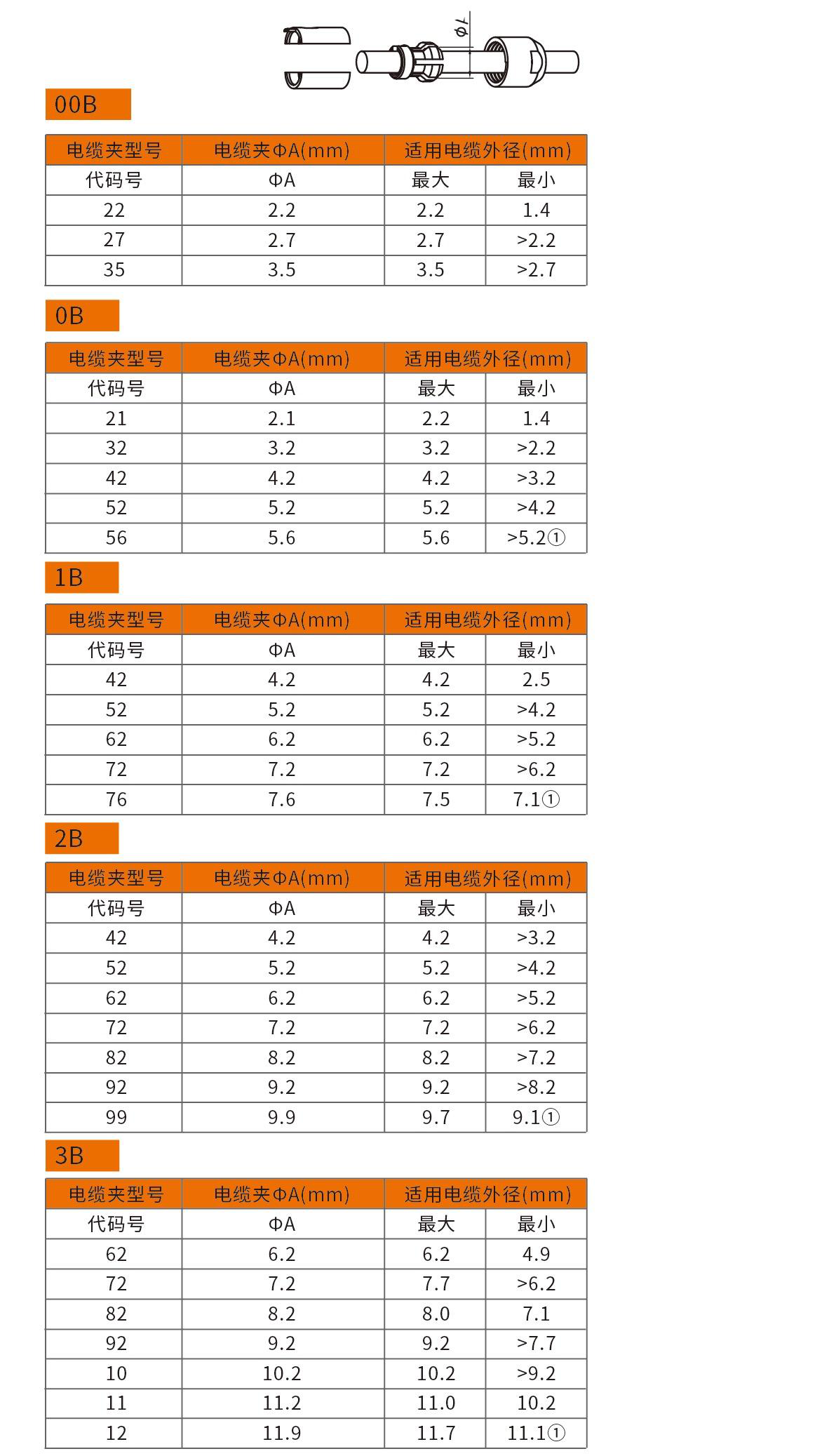

| Cable Clamp Diameter ΦA (mm) FHG 00B | 2.2,2.7,3.5 |
| Applicable Cable Outer Diameter (mm) FHG 00B | 1.4~2.2,>2.2~2.7,>2.7~3.5 |
| Cable Clamp Diameter ΦA (mm) FHG 0B | 2.1,4.2,5.2,5.6 |
| Applicable Cable Outer Diameter (mm) FHG 0B | 1.4~2.2,>2.2~3.2,>3.2~4.2,>4.2~5.2,>5.2~5.6 |
| Cable Clamp Diameter ΦA (mm) FHG 1B | 4.2,5.2,6.2,7.2,7.6 |
| Applicable Cable Outer Diameter (mm) FHG 1B | 2.5~4.2,>4.2~5.2,>5.2~6.2,>6.2~7.2,7.1~7.6 |
| Cable Clamp Diameter ΦA (mm) FHG 2B | 4.2,5.2,6.2,7.2,8.2,9.2,9.9 |
| Applicable Cable Outer Diameter (mm) FHG 2B | >3.2~4.2,>4.2~5.2,>5.2~6.2,>6.2~7.2,>7.2~8.2,>8.2~9.2,9.1~9.9 |
| Cable Clamp Diameter ΦA (mm) FHG 3B | 6.2,7.7,8.0,9.2,10.2,11.2,11.9 |
| Applicable Cable Outer Diameter (mm) FHG 3B | 4.9~6.2,>6.2~7.7,>7.1~8.0,>7.7~9.2,>9.2~10.2,>10.2~11.2,11.1~11.9 |

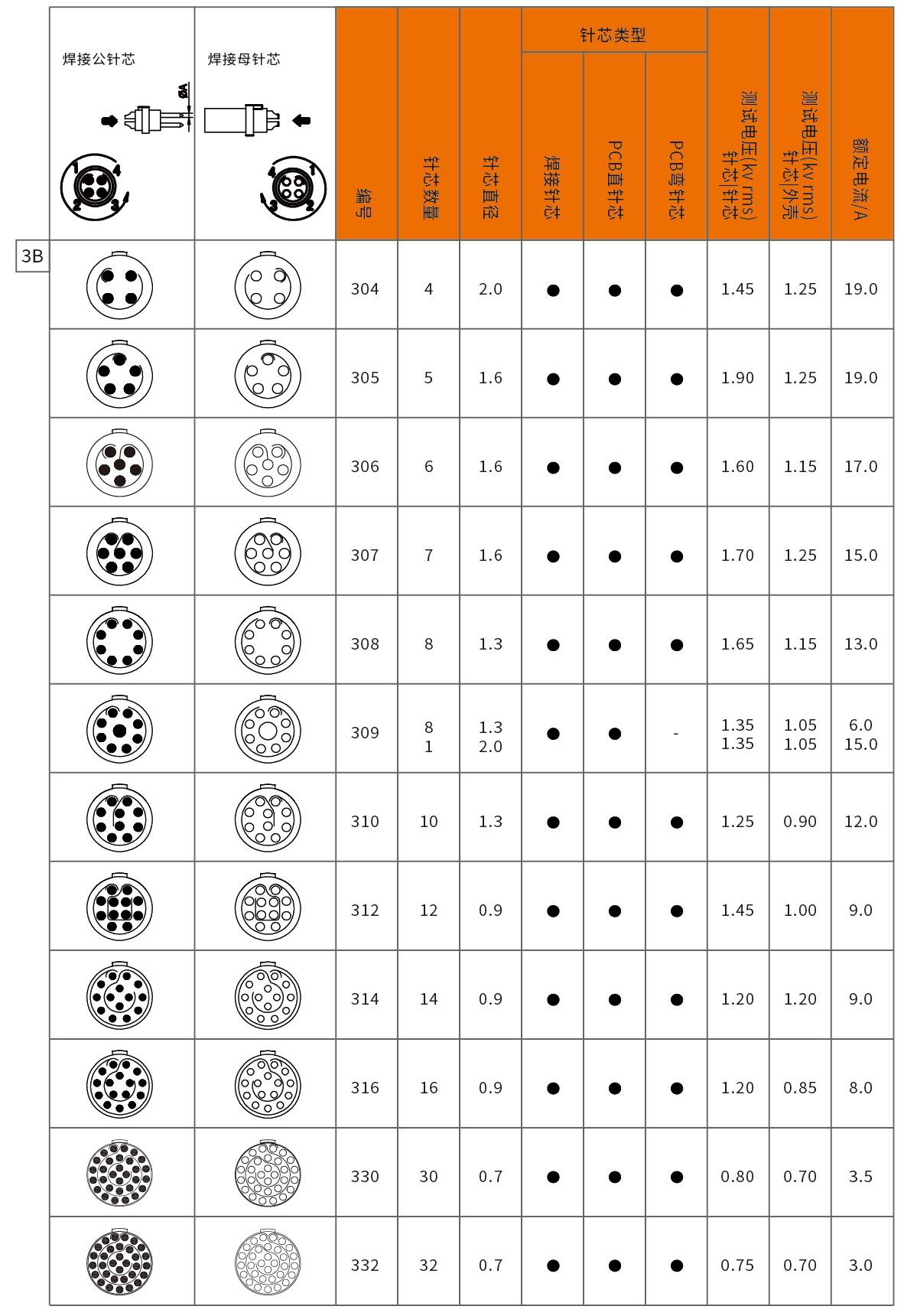

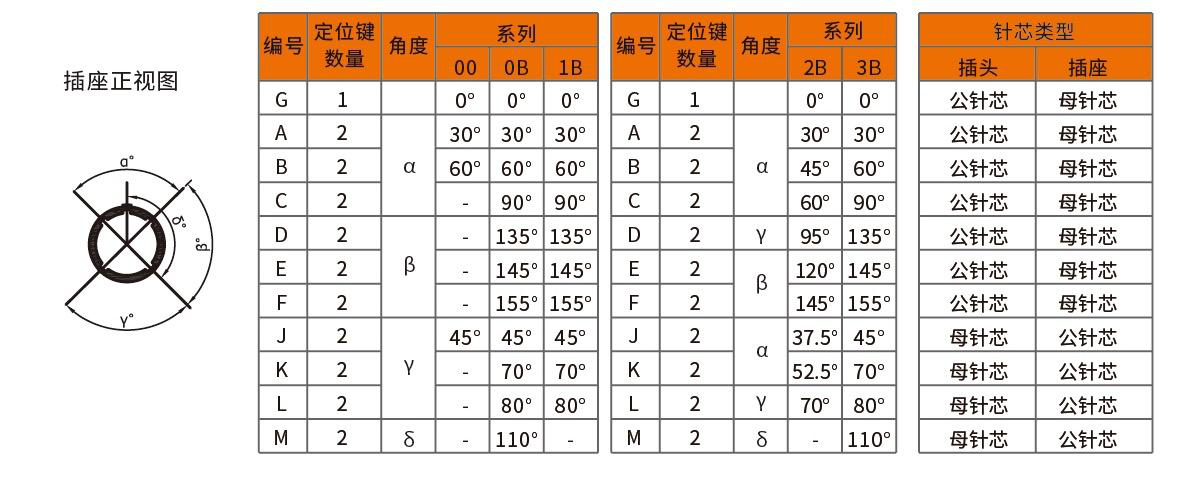

| Pin Type FHG 3B | 4,5,6,7,8,10,12,14,16,30,32 |
