T118 Series Temperature and Humidity Sensor
The T118 series temperature and humidity sensor is a digital sensor with high precision and long-term stability, suitable for various environmental monitoring applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Measurement Range Temperature | -20°C~100°C |
| Measurement Range Humidity | 0~100%RH |
| Measurement Accuracy | ±0.5°C |

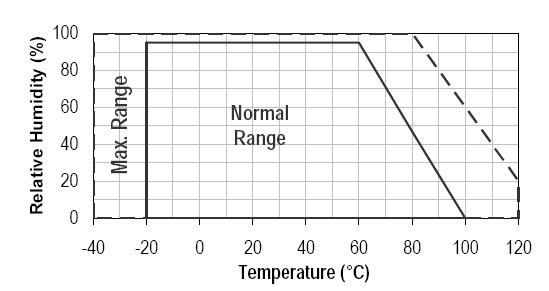

| Operating Environment Temperature | -20°C~90°C |
| Operating Environment Humidity | 0~99%RH |
| Storage Conditions Temperature | -20°C~80°C |
| Storage Conditions Humidity | 0~95%RH |
| Housing | Copper-plated |

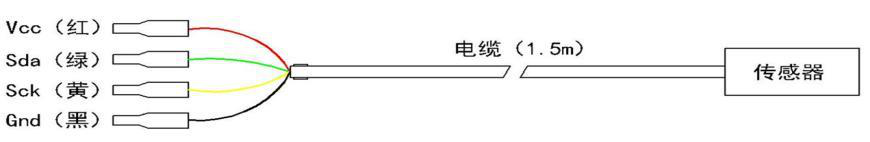

| Cable | 4x0.12mm², 1.5m |

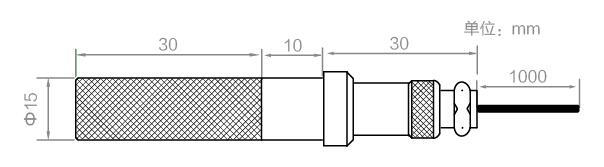

| Dimensions Total Length | 40mm |
| Dimensions Outer Diameter | 15mm |
| Dimensions Sintered Section | 31mm |
| Dimensions Inner Thread | 12*0.75mm |
Applications
Key Features
Datasheet
