HOCM03 Integrated Oil Consumption Meter

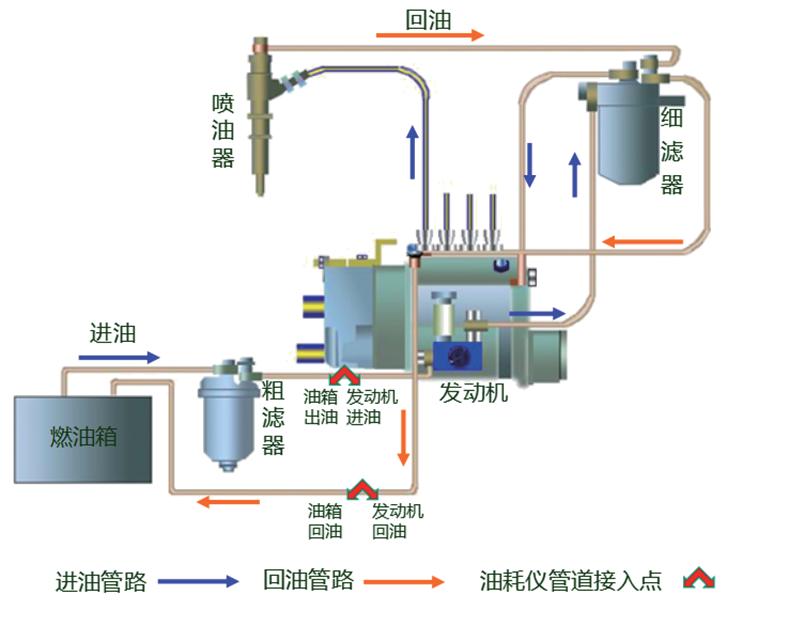

The HOCM03 integrated oil consumption meter uses a high-sensitivity displacement sensor and flow sensor as the core components. It is designed to measure the oil consumption between the fuel tank and the engine during operation. It provides real-time data, enabling precise monitoring and management of oil consumption. The device is suitable for automotive applications and other mechanical equipment, ensuring accurate oil consumption tracking and efficient management.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Measurement Accuracy | ±1% |
| Flow Range | 4-100L/H |
| Operating Temperature | -20℃~80℃ |
| Storage Temperature | -40℃~85℃ |
| Material | Aluminum |
| Dimensions | 304×164×164mm |
| Operating Voltage | 24VDC |
| Analog Input | 0-5VDC (12-bit AD) |
| Pulse/Switch Input | 10kHz (max) |
| Digital Input | RS485 port (1) |
| Digital Output | RS485 port (1), CAN port (1) |
| Relative Humidity | 5%-95% non-condensing |
