thermoMETER UC

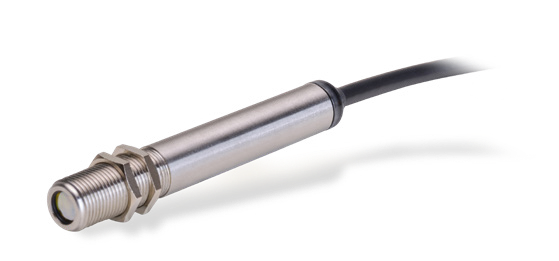

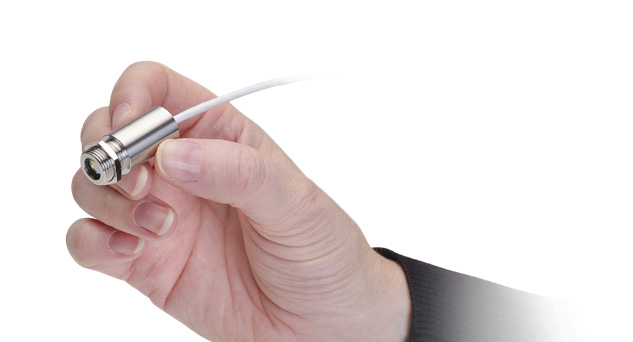

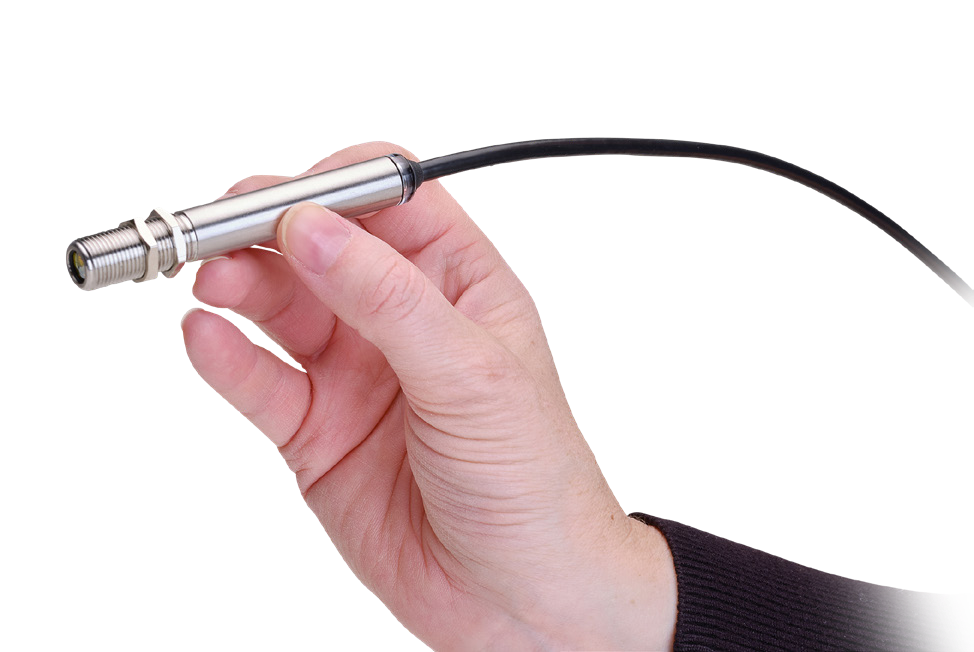

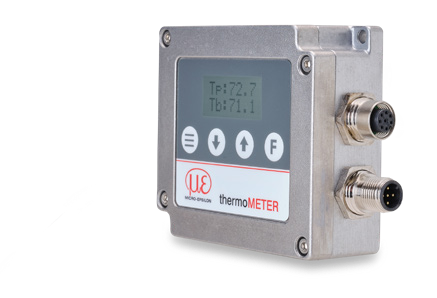

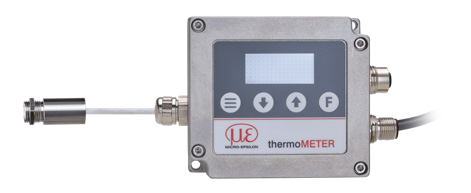

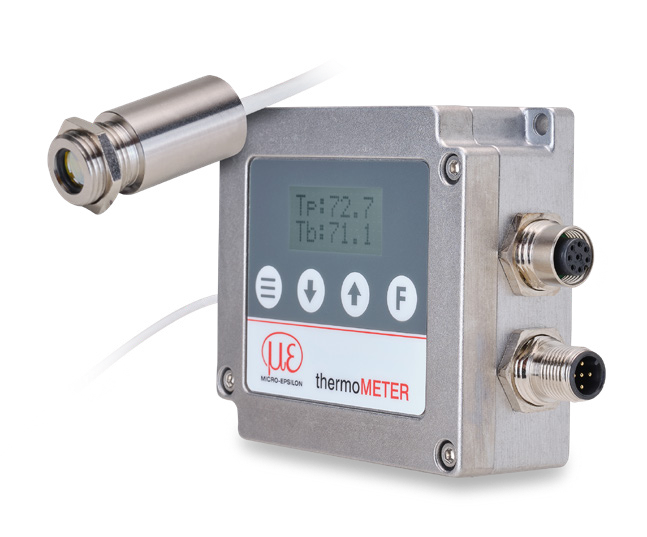

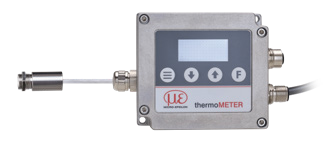

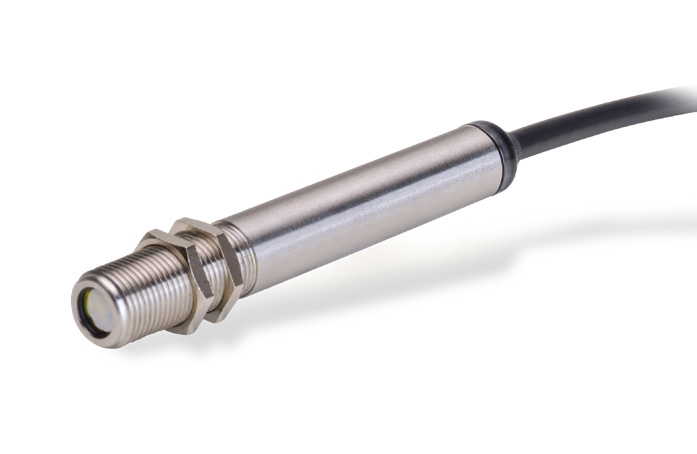

The thermoMETER UC is a high-performance industrial pyrometer designed for non-contact temperature measurement of objects in machine building, production, and quality assurance. It features a compact sensor and industrial-grade controller with IP65 housing, enabling precise measurements even in harsh environments.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Temperature Measuring Range | -50°C to +1100°C |
| Optical Resolution | 2:1, 15:1, 22:1 |
| Spectral Range | 8 to 14μm |
| System Accuracy | ±1.0% or ±1.0°C |
| Repeatability | ±0.5% or ±0.5°C |
| Temperature Resolution (NETD) | 50mK |
| Response Time | 120ms |
| Emissivity | 0.100 to 1.100 |
| Transmittance | 0.100 to 1.100 |
| Signal Processing | Intelligent averaging, Min/Max, Hold function with threshold/hysteresis |
| Supply Voltage | 5-36VDC |
| Max Current Consumption | <150mA |
| Digital Interface | RS485/USB/Ethernet/EtherCAT/PROFINET/EtherNet/IP |
| Switching Output | 2x relays for alarm |
| Connection | Integrated cable, standard length 3m, optional 1m, 8m, or 15m |
| Sensor Operating Temperature Range | -20°C to +120°C |
| Controller Operating Temperature Range | -20°C to +85°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity | 10%-95% RH, non-condensing |
| Vibration | 3g, 11-200Hz, each axis |
| Shock | 50g, 11ms, each axis |
| Protection Class | IP65 |
| Material | Stainless steel (sensor), Aluminum die-cast (controller) |
| Weight | Sensor: approx. 20g, Controller: approx. 280g |

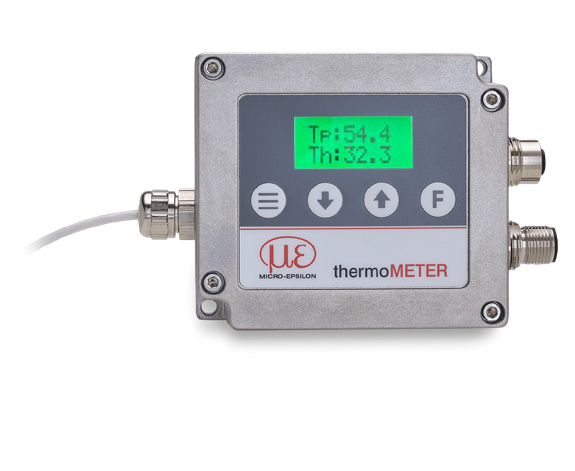

| Control and Indicator Elements | LCD display & membrane keypad for button operation |
