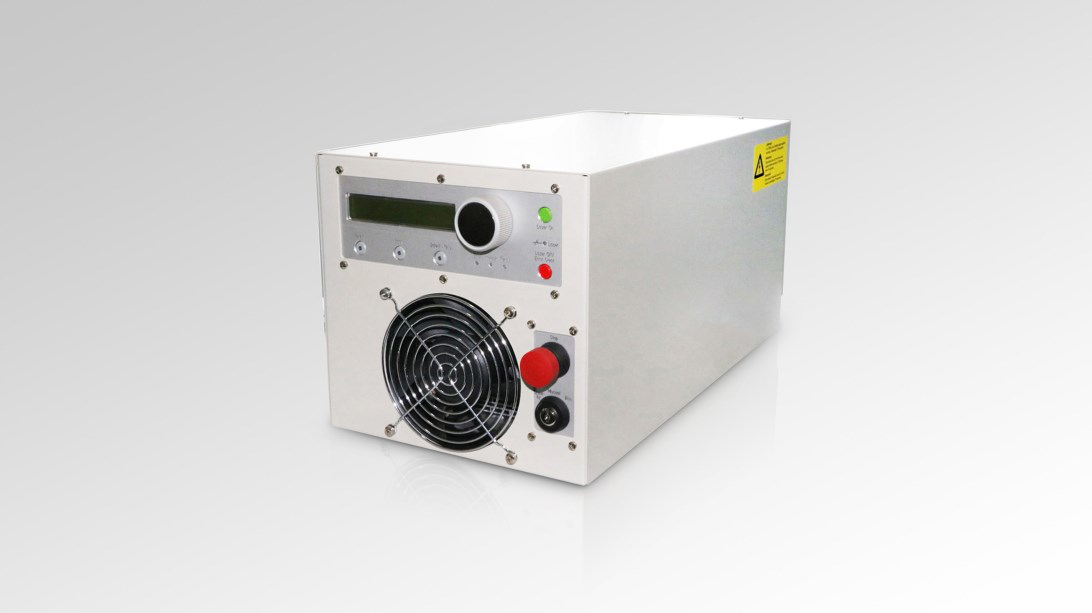

Industrial Laser System for Material Processing - Activation Series
The Activation Series is a turnkey industrial laser system designed for material processing applications. It features reliable control and protection functions, closed-loop process control, and easy integration into production machine interfaces.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Product Code ACT000005 | LM-AC50-980-F200-3 |
| Product Code ACT000055 | LM-AC50-980-F200-5 |
| Product Code ACT000056 | LM-AC50-980-F200-10 |

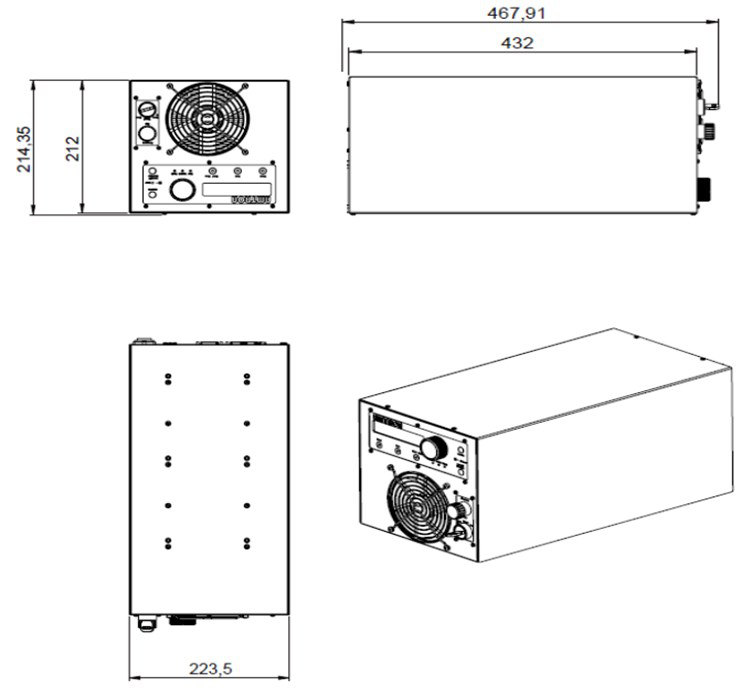

| Dimensions (height×width×depth) ACT000005 | 212×223×450mm |
| Dimensions (height×width×depth) ACT000055 | 212×223×450mm |
| Dimensions (height×width×depth) ACT000056 | 212×223×450mm |
| Max. Weight | 10kg |
| CW-nominal Output Power ACT000005 | 50W |
| CW-nominal Output Power ACT000055 | 50W |
| CW-nominal Output Power ACT000056 | 50W |
| Fiber Diameter | 200μm |
| Fiber Plug Type | SMA905 |
| Fiber Length ACT000005 | 3m |
| Fiber Length ACT000055 | 5m |
| Fiber Length ACT000056 | 10m |
| Max. Operation Current | 16A |
| Supply Frequency | 50-60Hz |
| Number of Leads | 1P+N+PE |
| Power Plug Type | CEE |
| Operating Temperature | 15~35°C |
| Chiller Type | Air |
| Cooling Capacity | 150W |
| Pilot Beam | ● |
| Key Main Switch | ● |
| Pyrometer Control | ○ |
| Power-meter Control | ○ |
| Internal Pulse Modus | ● |
| Laser Process Head | ● |
Applications
Key Features
Datasheet
