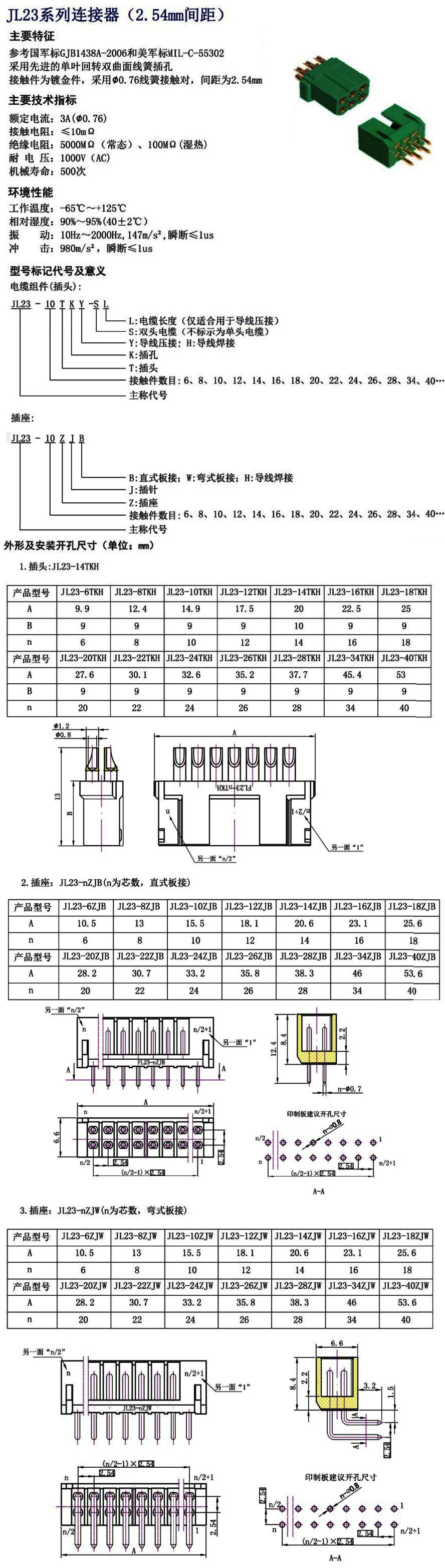

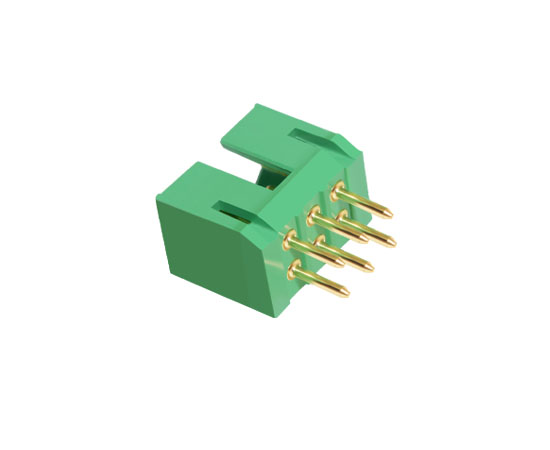

JL23 Series Connectors (2.54mm Pitch)
Rated current: 3A (φ0.76) Contact Resistance: ≤10mΩ Insulation Resistance: 5000MΩ (常态), 100MΩ (湿热) Withstanding Voltage: 1000V (AC) Mechanical Life: 500次 -
Circular Push-Pull Connectors

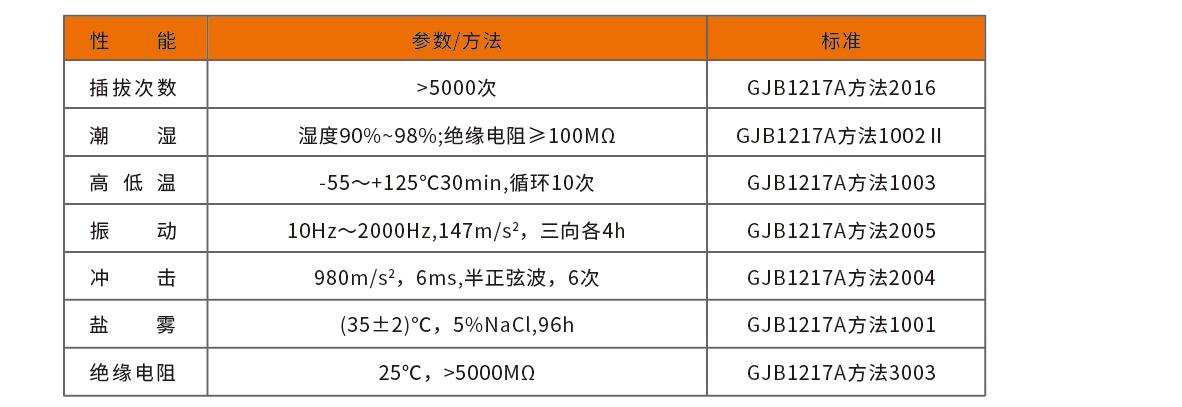

Insertion Cycles: ＞5000次 Humidity: 湿度90%-98%;绝缘电阻≥100MΩ High and Low Temperature: -55~125°C,30min,循环10次 Vibration: 10Hz~2000Hz,147m/s²,三向各4h Shock: 980m/s²,6ms,半正弦波,6次 -
PHG Series Circular Connectors
Insertion Cycles: >5000次 Humidity Resistance: 湿度90%-98%;绝缘电阻≥100MΩ High and Low Temperature Resistance: -55~125°C30min,循环10次 Vibration Resistance: 10Hz~2000Hz,147m/s²,三向各4h Shock Resistance: 980m/s²,6ms,半正弦波,6次 -

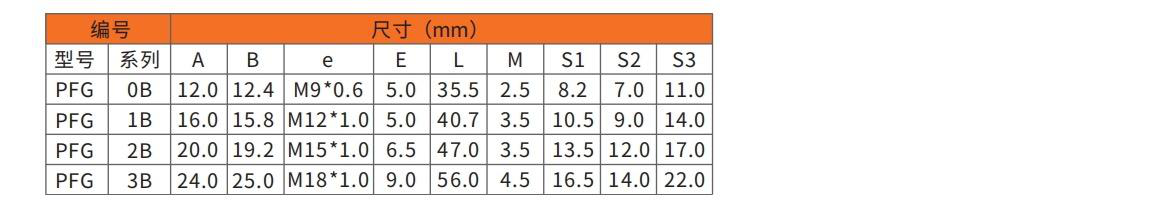

PFG Series Connectors
Dimension A (mm) 0B: 12.0 Dimension A (mm) 1B: 16.0 Dimension A (mm) 2B: 20.0 Dimension A (mm) 3B: 24.0 Dimension B (mm) 0B: 12.4 -
Circular Connector
Rated Voltage 7mm 4 cores: AC500V/min Rated Current 7mm 4 cores: 2A Insulation Resistance 7mm 4 cores: MIN 1,000Ω Pin Resistance 7mm 4 cores: MAX 10Ω Solder Cup Size 7mm 4 cores: Φ0.8 -
Circular Connector
Series: 7mm, 10mm, 13mm Number of Pins: 4, 6, 10, 12, 20 Dimension A (mm): 15.6, 17.8 Dimension B (mm): 15.6, 18 Dimension C (mm): 8.85, 11.9, 15.4 -
Circular Push-Pull Connectors
Mating Cycles: >5000次 Humidity: 湿度90%-98%;绝缘电阻≥100MΩ High and Low Temperature: -55~125°C30min,循环10次 Vibration: 10Hz~2000Hz,147m/s²,三向各4h Shock: 980m/s²,6ms,半正弦波,6次 -
HGG Series Circular Connectors
Insertion Cycles: >5000次 Humidity Resistance: 湿度90%-98%;绝缘电阻≥100MΩ High and Low Temperature: -55~125°C30min,循环10次 Vibration: 10Hz~2000Hz,147m/s²,三向各4h Shock: 980m/s²,6ms,半正弦波,6次 -

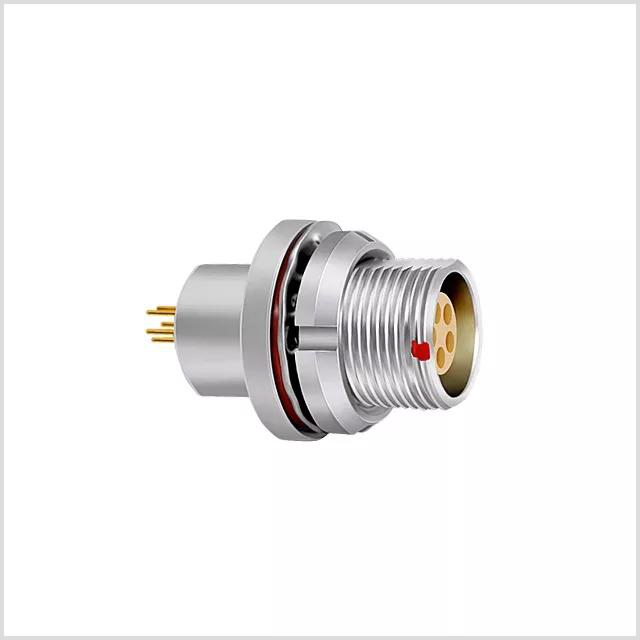

HEG Series Circular Connectors
Insertion Cycles: >5000次 Humidity: 湿度90%~98%;绝缘电阻≥100MΩ High and Low Temperature: -55~125°C30min,循环10次 Vibration: 10Hz~2000Hz,147m/s²,三向各4h Shock: 980m/s²,6ms,半正弦波,6次 -
Circular Connector
Insertion Cycles: >5000次 Humidity Resistance: 湿度90%-98%;绝缘电阻≥100MΩ High and Low Temperature: -55~125°C30min,循环10次 Vibration: 10Hz~2000Hz,147m/s²,三向各4h Shock: 980m/s²,6ms,半正弦波,6次 -

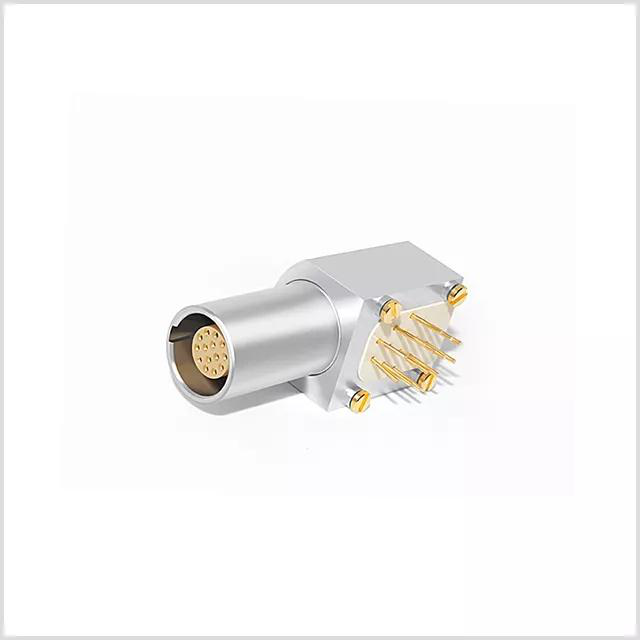

EPG Series Connectors
Insertion Cycles: >5000次 Humidity Resistance: 湿度90%~98%;绝缘电阻≥100MΩ Temperature range: -55~125°C30min,循环10次 Vibration: 10Hz~2000Hz,147m/s²,三向各4h Shock: 980m/s²,6ms,半正弦波,6次 -
光电连接器
Plugging Cycles: ＞5000次 Humidity: 湿度90%~98%;绝缘电阻≥100MΩ High and Low Temperature: -55~125°C30min,循环10次 Vibration: 10Hz~2000Hz,147m/s²,三向各4h Shock: 980m/s²,6ms,半正弦波,6次 -

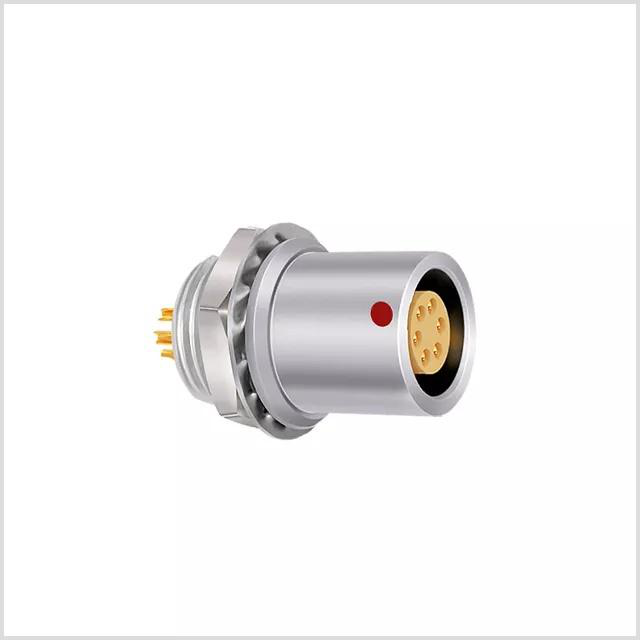

EHG Series Circular Connectors
Insertion Cycles: >5000次 Humidity: 湿度90%-98%;绝缘电阻≥100MΩ High and Low Temperature: -55~125°C30min,循环10次 Vibration: 10Hz~2000Hz,147m/s²,三向各4h Shock: 980m/s²,6ms,半正弦波,6次 -

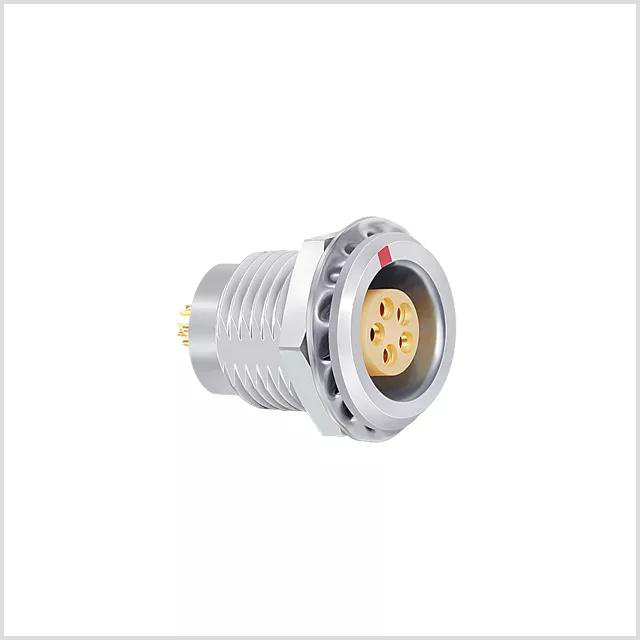

Circular Push-Pull Connectors
Mating Cycles: >5000次 Humidity: 湿度90%~98%;绝缘电阻≥100MΩ Temperature range: -55~125°C30min,循环10次 Vibration: 10Hz~2000Hz,147m/s²,三向各4h Shock: 980m/s²,6ms,半正弦波,6次 -

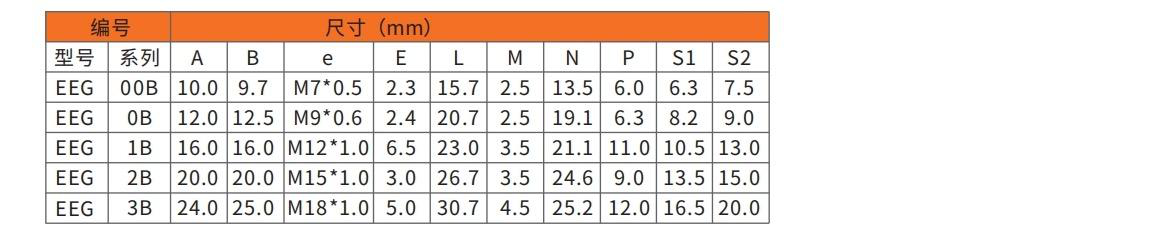

EEG Series Connectors
Dimension A(mm) EEG 00B: 10.0 Dimension B(mm) EEG 00B: 9.7 Dimension e(mm) EEG 00B: M7*0.5 Dimension E(mm) EEG 00B: 2.3 Dimension L(mm) EEG 00B: 15.7 -
Circular Connector
Insertion Cycles: >5000次 Humidity: 湿度90%-98%;绝缘电阻≥100MΩ High and Low Temperature: -55~125°C30min,循环10次 Vibration: 10Hz~2000Hz,147m/s²,三向各4h Shock: 980m/s²,6ms,半正弦波,6次 -

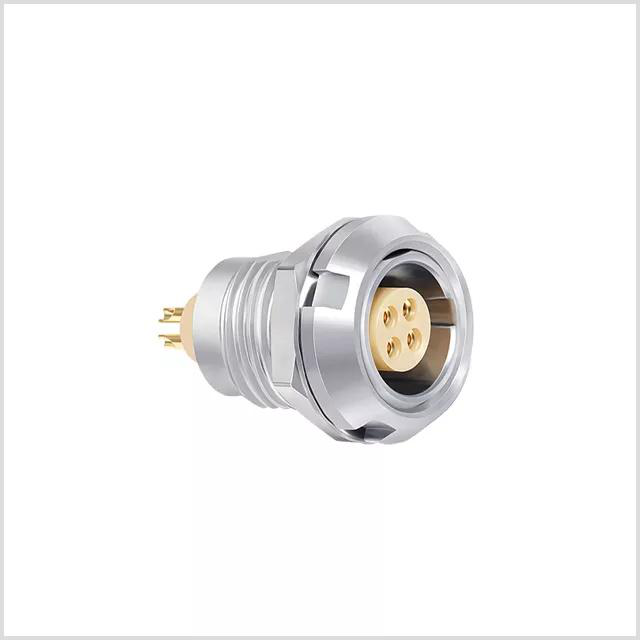

ECG Series Connectors
Insertion Cycles: >5000次 Humidity: 湿度90%-98%;绝缘电阻≥100MΩ High and Low Temperature: -55~125°C30min,循环10次 Vibration: 10Hz~2000Hz,147m/s²,三向各4h Shock: 980m/s²,6ms,半正弦波,6次 -

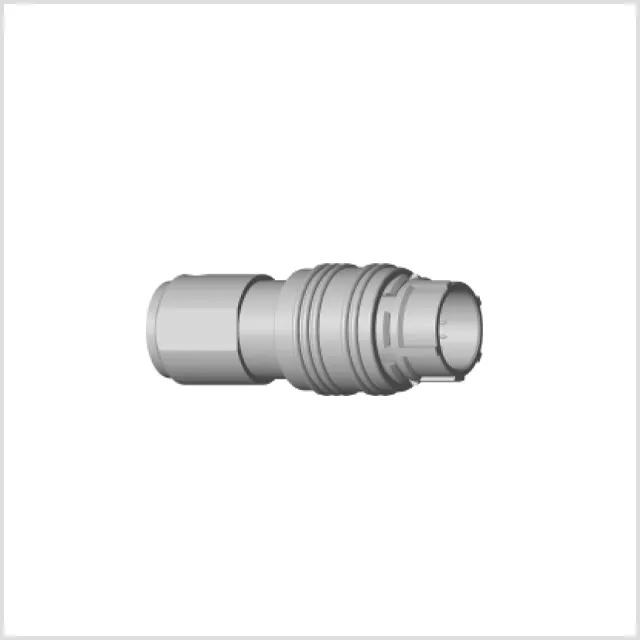

HR25A Connector
Model: HR25A A (mm): 13 L (mm): 32.8 S1 (mm): 10 Max Cable Diameter (mm): 6.5 -
Circular Connector
Series: 7mm, 10mm, 13mm, 25mm Number of Pins: 4, 5, 6, 10, 12, 20 Rated Voltage: AC500V/min (7mm, 4 pins), AC300V/min (others) Rated current: 2A Insulation Resistance: MIN 1,000Ω -
Circular Connector
Series: 7mm, 10mm, 13mm, 25mm Number of Pins: 4, 5, 6, 10, 12, 20 Dimension A (mm): 35, 43, 58.8 Dimension B (mm): 11.5, 14.7, 19 Dimension C (mm): 7.5, 9, 13
