Photonics Source provides 268 products. Download datasheets, request quotes, and compare function, price, and availability.
-

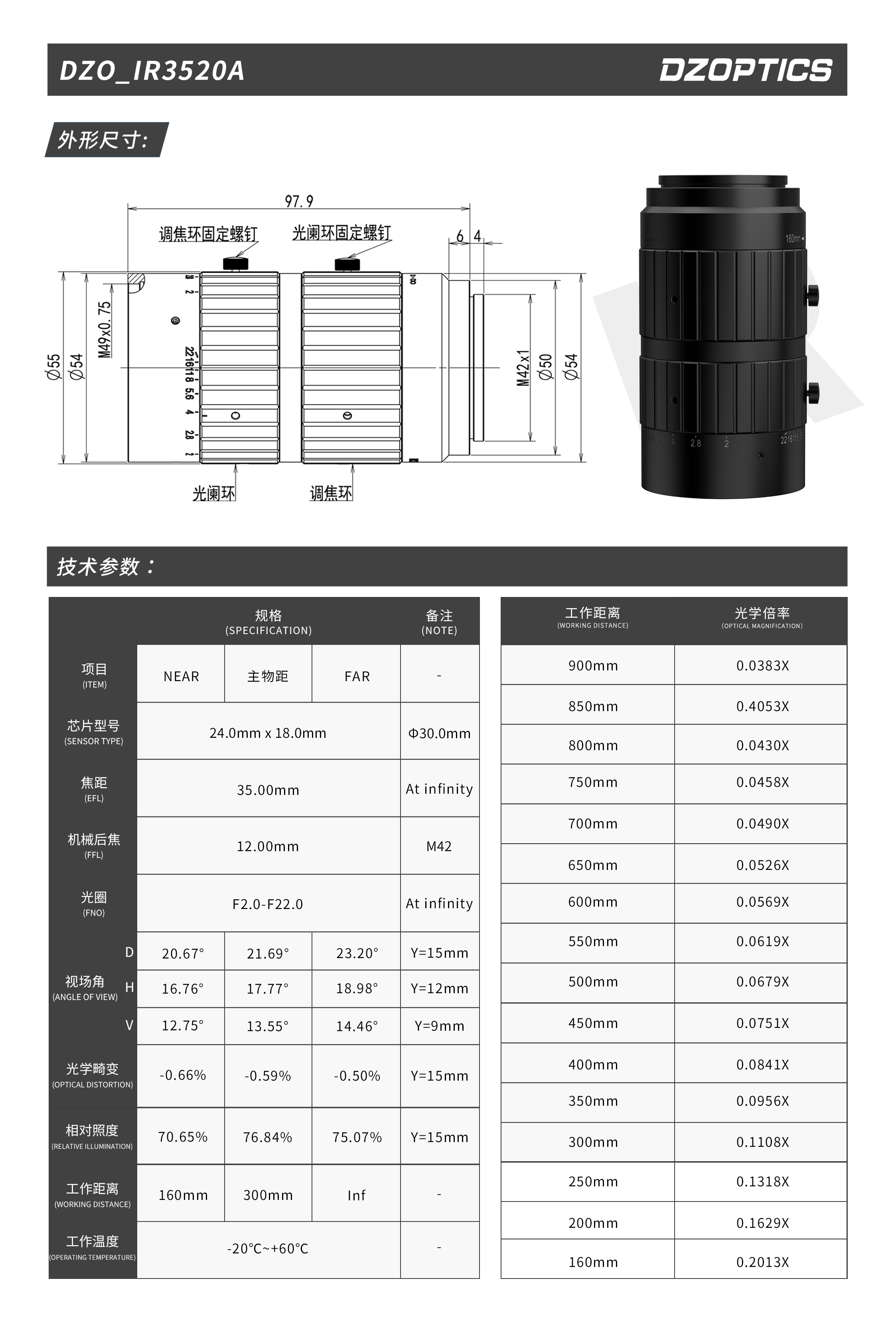

DZO_IR3520A
Sensor Type: 24.0mm×18.0mm | Φ30.0mm Focal Length: 35.00mm | At infinity Mechanical Back Focal Length: 12.00mm | M42 Aperture: F2.0-F22.0 | At infinity Angle of View: 20.67° | Y=15mm, 21.69° | Y=12mm, 23.20° | Y=9mm -
DZO LA0818A 2/3" C 10M
Focal Length: 8mm Max Aperture Ratio: 1:1.8 F/# Range: F1.8-F16 Focus Range: 100mm-Inf Max Image Size: 2/3" (Φ11mm) -
IR3515A1
Magnification: 0x, 0.08x, 0.115x, 0.125x, 0.14x, 0.17x Working Distance(mm): ∞, 417.6, 326.4, 299.7, 267.4, 220 Conjugate Distance(mm): ∞, 595.8, 450.6, 423.8, 391.5, 344.1 FOV(mm): ∞, 381.3, 265.6, 244.9, 218.1, 142.9 Flange Focal Distance(mm): 12 -
IR2514A
Effective Focal Length (EFL): 25.3 Magnification: 0.0839, 0.0504, 0.0121 Working Distance (mm): 290.36, 491.60, inf Conjugate Distance (mm): 353.50, 552.68, - Field of View (FOV): Ø193.2, Ø321.2, - -
IR1214A
Effective Focal Length (EFL): 12.3 Magnification: 0.0294, 0.0172, 0.0121 Working Distance (mm): 400, 700, 1000 Conjugate Distance (mm): 475.66, 775.51, 1075.44 Field of View (FOV): 6543.44, 9292.94, 13121.2 -
GLX6060
Magnification: 0.67X Working Distance: 96±2 Max Image Circle: Φ22 F.No: 4.5 Resolution (OBJ): 1μ -
FFL3518
Wavelength(nm): 450, 405 Object Distance(mm): 452, 898, 2551 Working Distance(mm): 451, 897, 2550 Conjugate Distance(mm): 512, 956.11, 2607.86 Back Focal Length(mm): 15.15, 13.26, 12.01, 14.21, 12.41, 11.46 -
FFL3022
Magnification: 0.35X Working Distance(mm): 40.2 Image Distance(mm): 102.2 Conjugate Distance(mm): 167.2 Flange Focal Distance(mm): 101.1 -
FFL3518
Wavelength(nm): 450,405 Object Distance(mm): 452,898,2551 Working Distance(mm): 45.85 Conjugate Distance(mm): 512,956.11,2607.86 Back Focal Length(mm): 15.15,13.26,12.01,14.21,12.41,11.46 -
FFL2518C
EFL: 25 Working Distance: 110, 164, 177, 189 Conjugate Distance: 154.774, 206.916, 219.645, 231.428 Flange Focal Distance: 13.49, 11.63, 11.36, 11.15 Max Image Circle: Ø16 -
FFL2518A
Effective Focal Length (EFL): 25 Working Distance: 110, 164, 177, 189 Conjugate Distance: 154.774, 206.916, 219.645, 231.428 Flange Focal Distance: 13.49, 11.63, 11.36, 11.15 MAX Image Circle: 16 -
FFL2518B
Effective Focal Length (EFL): 25 Working Distance: 110, 164, 177, 189 Conjugate Distance: 154.774, 206.916, 219.645, 231.428 Flange Focal Distance: 13.49, 11.63, 11.15 MAX Image Circle: 16 -
FFL2518-D-655
Effective Focal Length (EFL): 25 Working Distance: 260.2, 415.2, 900.2, 1194.2 Conjugate Distance: 305.88, 459.84, 943.93, 1237.75 Flange Focal Distance: 14.03, 12.99, 12.08, 11.90 Max Image Circle: Ø9 -
FFL1218
Outer Diameter: 42 Length: 51 Thread Specification: M24×0.75 Image Surface Diameter: 30.6 Front End Diameter: 38.8 -
FFL1620
Wavelength (nm): 450, 405 Object Distance (mm): 380, 480, 600 Working Distance (mm): 379, 479, 559 Conjugate Distance (mm): 452.15, 552, 671.89 Back Focal Length (mm): 14.08, 13.93, 13.82 -
FFL05070A
Focal Length: 50.2 F Number: 5.5 Working Distance: 74.6 Object Field: 141.15 Magnification: 0.5X -
FFL2208B
Magnification: 0.67X Working Distance: 49.6 Conjugate Distance: 92 Flange Focal Distance: 23.4 Max Image Circle: Ø6.4 -
FF2202A2
Magnification: 0.91X Working Distance: 39.8 Conjugate Distance: 88.2 Flange Focal Distance: 29.4 Max Image Circle: Ø6.4 -
FFL2200A
Magnification: 0.91X Working Distance: 39.8 Conjugate Distance: 88.2 Flange Focal Distance: 29.4 Max Image Circle: Ø6.4 -
SD16502
Material: 6061 T6 Length(mm): 117 Diameter(mm): 24 Inner Diameter(mm): 23.2 Wall Thickness(mm): 4
