Photonics Source provides 263 products. Download datasheets, request quotes, and compare function, price, and availability.
-

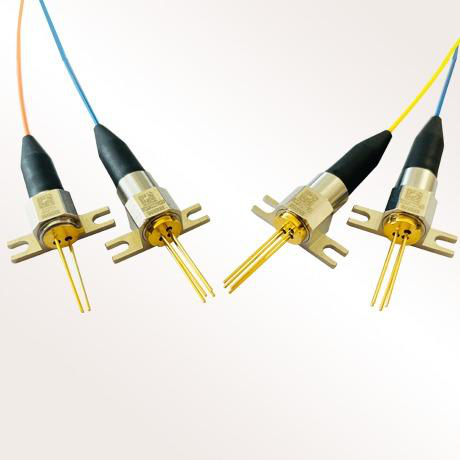

GTA1003 CWDM DFB Pulse Laser Diode Module
Reverse Voltage (monitor PD): 10V Reverse Voltage: 2V Operating Temperature: -20℃~+70℃ Storage Temperature: -40℃~+100℃ Soldering Temperature/Time: 260℃/10s -

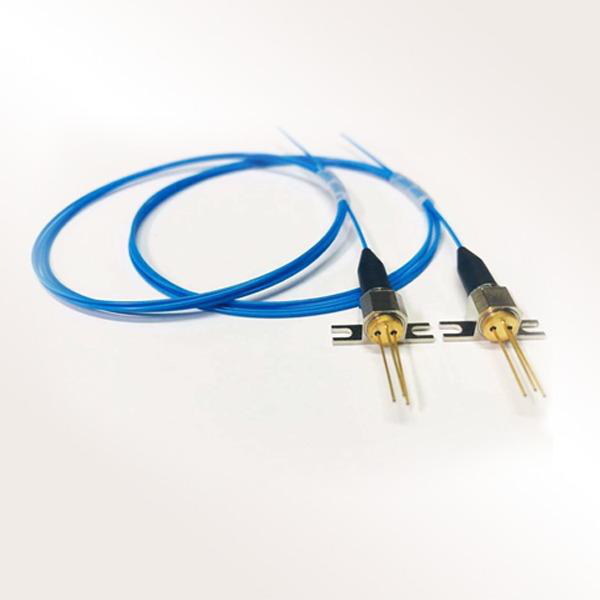

GTA1005 1310nm Pulse Laser
Pulsed Forward Current: 1.2A Reverse Voltage: 2.0V Operating Case Temperature: -20~+60°C Storage Temperature: -40~+85°C Soldering Temperature/Time: 260°C/10s -
Polarization Beam Combiner & Signal Combiner (6+1)x1
Product Type: PM (6+1)x1 Signal Wavelength Range (nm): 1064, 1500 Pump Wavelength Range (nm): 900~1000 Pump Input Fiber Type: Nufern 105/125 (NA 0.15 or 0.22 NA) Signal Input Fiber Type: PM 980, PM 1550, PM-6/125 DC or PM-8/125 DC -
(2+1)x1 Pump and Signal Combiner
Structure Type: (2+1)x1 Signal Wavelength Range: 1020~1080nm, 1530~1575nm, 1950~2050nm Pump Wavelength Range: 780~1000nm Pump Fiber Type: 105/125, NA0.08/0.46 Output Fiber Type: 105/125, NA0.08/0.46, 10/130, NA0.15/0.46 -
PM (2+1) × 1 Polarization Maintaining Multimode Pump Combiner
Product Model: PM (2+1) × 1 Signal Wavelength (nm): 1064, 1500 Pump Wavelength Range (nm): 900~1000 Pump Input Fiber Type: Nufern 105/125 (NA 0.15 or 0.22 NA) Signal Input Fiber Type: PM-GDF-6/125-M or CorActive DCF-UN-8/125-14-PM -
Multimode Pump and Signal Combiner (1+1)x1
Structure Type: (2+1)x1 Signal Wavelength Range (nm): 1550 Pump Wavelength Range (nm): 900~1000 Pump Fiber Type: 105/125, 0.15NA, 0.22NA Signal Input Fiber Type: 6/125DCF, 10/125DCF -
VD-I Series Laser Module
Wavelength (nm): 980±5 Output Power (mW): 10,20,30,50 Working Mode: CW Beam Mode: Quasi TEM00 Spectral Linewidth (nm): <3.0 -
High-Stability Laser Module
Wavelength (nm): 975±5 Output Power (mW): ＞1, 2, 3,...,30 Beam Mode: Near TEM00 Spectral Linewidth (nm): ＜0.06 (<0.03, optional) Beam Divergence (full angle, mrad): ＜1.0 -
VD-II Series Laser
Laser Wavelength (nm): 940 Output Power (mW): 1-50 Working Mode: CW Beam Mode: Quasi TEM00 Spectral Linewidth (nm): <3.0 -
915nm Laser Module
Wavelength (nm): 915 Output Power (mW): 1-50 Working Mode: CW Beam Mode: Quasi TE00 Spectral Linewidth (nm): <3.0 -
High Stability Laser Module
Wavelength(nm): 914±1 Output Power(mW): ＞1, 100, 200, 500 Output Mode: Near TEM00 Operation Mode: CW Power Stability(minutes, over 4 hours): ＜1%, ＜3%, ＜5% -
905nm Laser Module
Wavelength (nm): 905±10 Working Mode: CW Output Power (mW): >1, 100, 150 Power Stability (rms, over 4 hours): <1%, <3%, <5% Transverse: Near TEM00 -
860nm CW Laser
Wavelength (nm): 860±10 Working Mode: CW Output Power (mW): >100, 200...400 Power Stability (mins, over 4 hours): <1%, <2%, <3% Transverse: Near TEM00 -
808nm Diode Laser Module
Wavelength (nm): 808±5 Output Power (mW): 10,20,30,100 Output Mode: Near TEM00 Beam Diameter (mm): ~3×4 Operation Mode: CW -
808-5 Laser Module
Wavelength (nm): 808±5 Output Power (mW): 100,200,300,2000 Output Beam Diameter (mm): 50 Dimensions (L×W×H, mm): 116×50×63.5 Power Stability after Preheating (mrad): <0.05 -
808nm Fiber Coupled Laser
Wavelength (nm): 808 Output Power (mW): 50-100 Beam Mode: CW Fiber Numerical Aperture: 0.10-0.12 Fiber Connector: FC/PC / SMA905 -
808nm Fiber Coupled Laser
Wavelength (nm): 808 Output Power (mW): 1-50 Beam Mode: CW Fiber Numerical Aperture: 0.10-0.12 Fiber Connector: FC/PC / SMA905 -
808nm Diode Laser Module
Wavelength(nm): 808±5 Output Power(mW): 10,20,30,100 Output Mode: TEM00 Beam Quality (M2 factor): <1.1 Spot Diameter(mm): ~1.0 -
808.3nm Laser Module
Wavelength (nm): 808.3 Output Power (mW): 200,3000,5000,8000,10000 Working Mode: CW Beam Mode: Quasi TEM00 Spectral Linewidth (nm): <3.0 -
793nm CW Laser
Wavelength (nm): 793±5 Working Mode: CW Output Power (mW): ＞1, 100, 200, 300, 1000 Power Stability (mW; over 4 hours): ＜1%, ＜2%, ＜3% (＜0.5%, optional) Transverse Mode: Multimode
