Photonics Source provides 1448 products. Download datasheets, request quotes, and compare function, price, and availability.
-

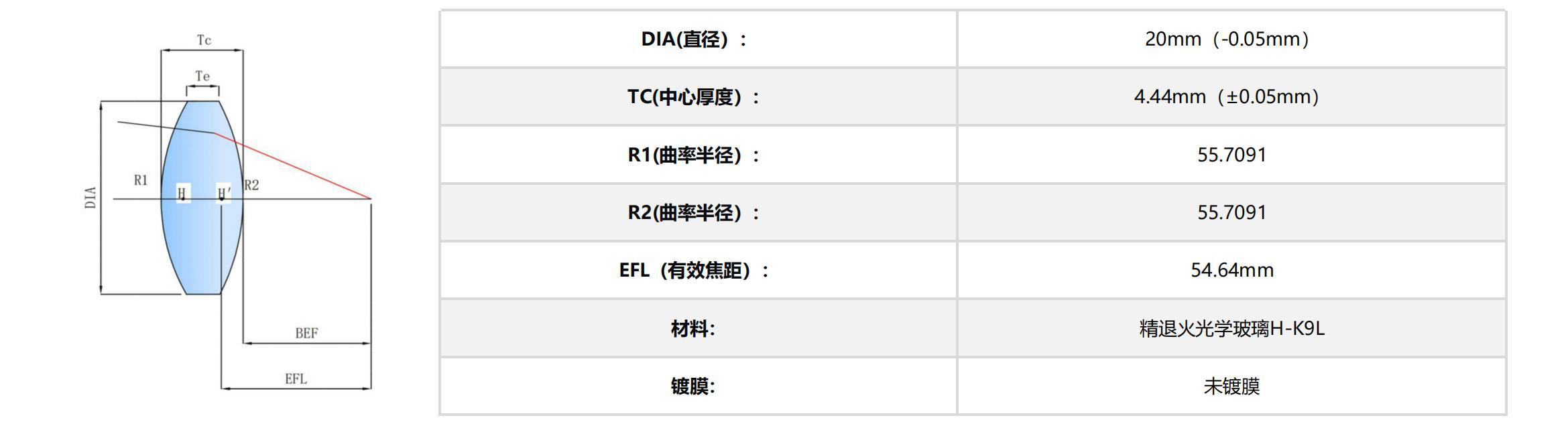

Precision Optical Lens
Diameter: 20mm (-0.05mm) Center Thickness: 4.44mm (±0.05mm) Radius of Curvature R1: 55.7091 Radius of Curvature R2: 55.7091 Effective Focal Length: 54.64mm -

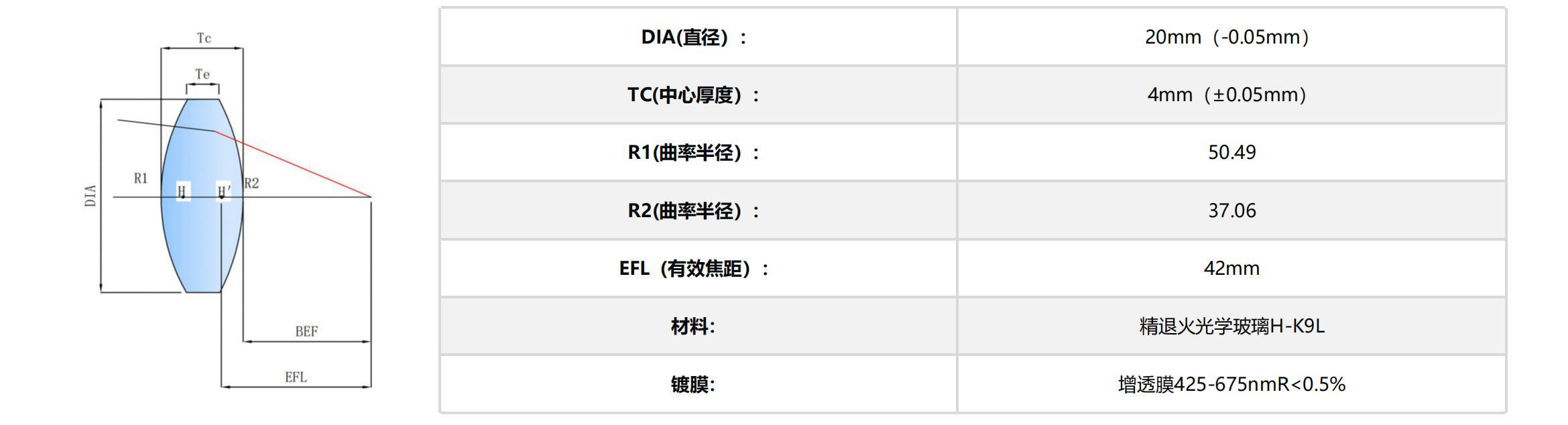

Precision Optical Lens
Diameter: 20mm(-0.05mm) Center Thickness: 4mm(±0.05mm) Radius of Curvature R1: 50.49 Radius of Curvature R2: 37.06 Effective Focal Length: 42mm -
Precision Optical Lens
Diameter: 19mm(-0.05mm) Center Thickness: 5mm(±0.05mm) Radius of Curvature R1: 43.97 Radius of Curvature R2: 22.96 Effective Focal Length: 30mm -

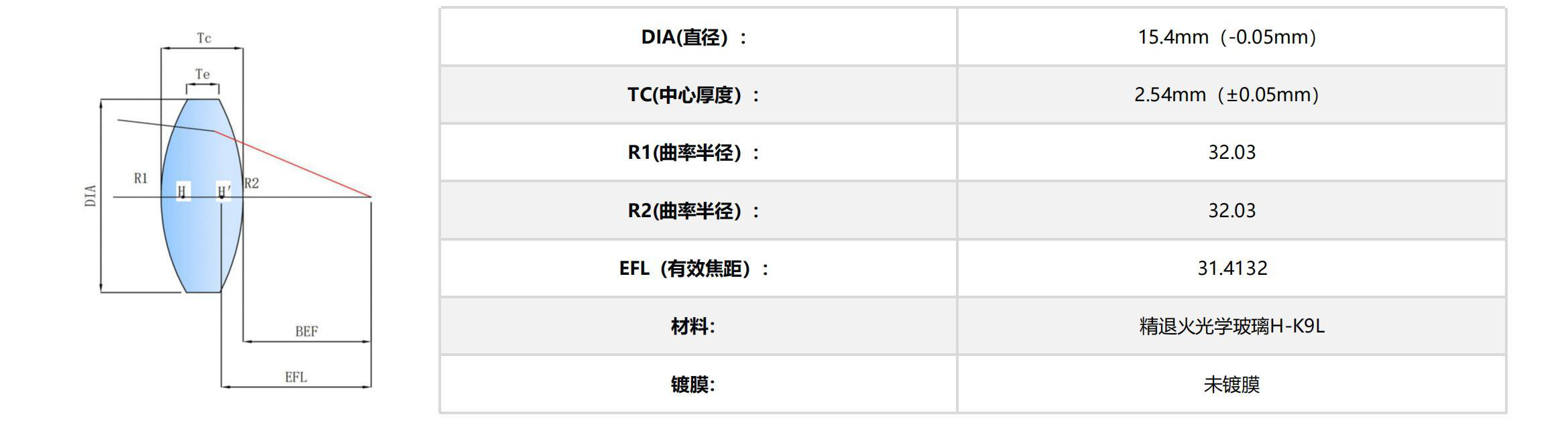

Precision Optical Lens
Diameter: 15.4mm(-0.05mm) Center Thickness: 2.54mm(±0.05mm) Radius of Curvature R1: 32.03 Radius of Curvature R2: 32.03 Effective Focal Length: 31.4132 -
Polarization Maintaining 1550nm Fiber-Coupled Acousto-Optic Modulator
Interaction Material: Tellurium dioxide Signal Wavelength (nm): 1550 Operating Wavelength Range (nm): ±30 Frequency (MHz): 150 Max. Insertion Loss (dB): 3.5 -
Polarization Maintaining 1550nm Fiber-Coupled Acousto-Optic Modulator (AOM Series)
Interaction Material: Tellurium dioxide Signal Wavelength (λc): 1550 Operating Wavelength Range: ±30 Frequency (MHz): 150 Max. Insertion Loss (dB): 3.5 -
FL-AMM Series
Length(mm) FL-AMM-11541003: 11.5 Width(mm) FL-AMM-11541003: 4.10 Thickness(mm) FL-AMM-11541003: 0.30 Ni Thickness(μm) FL-AMM-11541003: ≥1.0 Au Thickness(μm) FL-AMM-11541003: ≥0.25 -
High-Power Diode Lasers and Materials
Typical Power Output Single Emitter: 10W 808nm CW, 12W 915/940/976nm CW, 51W 1470nm CW Available Wavelengths Single Emitter: 660/808/915/940/976/1470nm Fast Axis Collimation Single Emitter: 1:1 or 1:2 optional, customizable Typical Power Output Single Bar: 60W 808nm CW, 100W 940/976/980nm CW, 80W 1060nm CW, 30W 1470nm CW Cooling Single Bar: Water-cooled or conduction-cooled -
Automotive Photonics Solutions
Projection Angle: 13° Field of View (FOV): 219° Projection Ellipse: 4121mm x 553mm MLA Height: 200mm Lens Array Diameter: ≤18mm -
Slow Axis Collimator
Material: S-TIH53 (Ohara) Length (L): 15.0±0.05mm Width (W): 7.0±0.05mm Thickness (Te): 2.81±0.05mm Clear Aperture (A x Aeff): 12.0x3.0mm² -
Telescope Array 150/500 and 200/400
Material: S-TIH53 (Ohara) Refractive Index n @ 808nm: 1.823 Product Code ZLA000390: ZLA000390 Product Code ZLA000579: ZLA000579 Product Code ZLA000593: ZLA000593 -
Microlens Array 18-00216
Material: Fused Silica Length (L): 10±0.05mm Width (W): 10±0.05mm Center Thickness (T): 1.2±0.01mm Lens Radius of Curvature: 8.6mm -
Engineered V-Groove Arrays
Ideal Positioning Accuracy (X/Y Directions, by means of inlayed fiber core mid-point) 标准精度版本: X≤500nm, Y≤750nm Ideal Positioning Accuracy (X/Y Directions, by means of inlayed fiber core mid-point) 高精度版本: X≤250nm, Y≤350nm Pitch (Spacing) Accuracy, Fiber-to-Fiber: ≤500nm Accumulative Pitch (Spacing) Accuracy, First-to-Last 标准精度版本: <1000nm Accumulative Pitch (Spacing) Accuracy, First-to-Last 高精度版本: <500nm -
Microprism Lens Array
Material: D-LAF50 (Customizable upon request) Outer Dimensions: 3×2.01×1.22mm (Customizable upon request) Designed Wavelength: 1310/1550nm NA: 0.15~0.25 Focal Length: 1.0~2.5 -
Fiber Coupler and Collimator
Material: Silicon Length (L): 1±0.01mm Width (W): 0.6±0.01mm Center Thickness (T): 0.5±0.01mm Clear Aperture: Φ0.500mm -
Coupler for Pumping Application
Material: S-LAM52 (Ohara) Length (L): 2.4±0.1mm Width (W): 2.4±0.1mm Thickness (T): 2.0±0.1mm Clear Aperture (A x Aeff): 1.5x1.5mm² -
Blue FAC 250
Material: FL-Blue Width (W): 0.4±0.05mm Thickness (T): 0.3172±0.01mm Clear Aperture: 3.15×0.3mm² Refractive Index n @ 445nm: 1.763 -
Engineered V-Groove Arrays
Ideal Positioning Accuracy (X/Y Directions, by means of inlayed fiber core mid-point) 标准精度版本: X<500nm, Y<750nm Ideal Positioning Accuracy (X/Y Directions, by means of inlayed fiber core mid-point) 高精度版本: X<250nm, Y<350nm Pitch (Spacing) Accuracy, Fiber-to-Fiber 标准精度版本: <500nm Pitch (Spacing) Accuracy, Fiber-to-Fiber 高精度版本: <200nm Accumulative Pitch (Spacing) Accuracy, First-to-Last 标准精度版本: <1000nm -
High-Precision Micro-Optics
Material: High-quality optical glass, fused silica, silicon, CaF2, polymer on glass Effective Focal Length: 0.11–7.7mm, customizable Back Focal Length: 0.034–5.000mm, customizable AR Coating: UV, VIS, NIR, 770–1070nm, 790–990nm, 400–480nm Beam Diameter/Output: 50–400μm, customizable -
Wafer-Level Optics Solutions
Micro Lens Array: Diffractive & refractive optics Encapsulated Optics: Wafer-level encapsulation Optical Sensor Module: Molded module Imaging Lenses: Folded path Projector Lenses: Folded path
