Photonics Source provides 110 products. Download datasheets, request quotes, and compare function, price, and availability.
-
D-25A16B-01-60B5C-R
Active Area Diameter: 16μm Wavelength Range: 960-1550-1700nm Sensitivity: -24dBm Reverse breakdown Voltage: 20-27-30V Dark Current: ≤100nA -
Unknown
Reverse breakdown Voltage: 35-50V Dark Current: ≤1nA Responsivity: 0.9-1A/W Multiplication Factor Vr=Vbr-1: 30 Multiplication Factor Vr=Vbr-2: 20 -

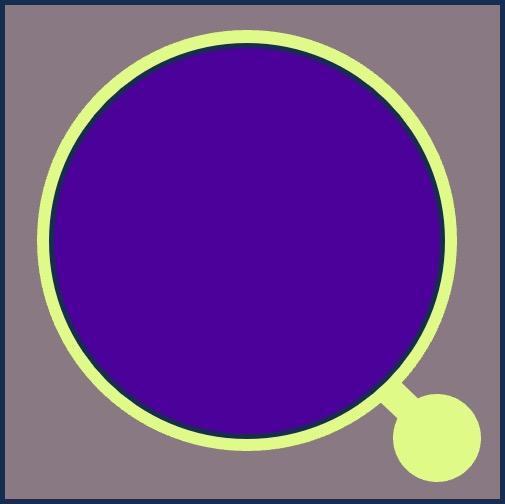

D-XXP65/200-01 & D-XXP65/250-01
Active Area Diameter (μm) D-XXP65/200-01: 200 Active Area Diameter (μm) D-XXP65/250-01: 250 Spectral Range (nm) D-XXP65/200-01: 900-1750 Spectral Range (nm) D-XXP65/250-01: 900-1750 Responsivity (A/W) Vr=-1V, λ=1550nm, T=-40°C D-XXP65/200-01: 0.9-1.1 -

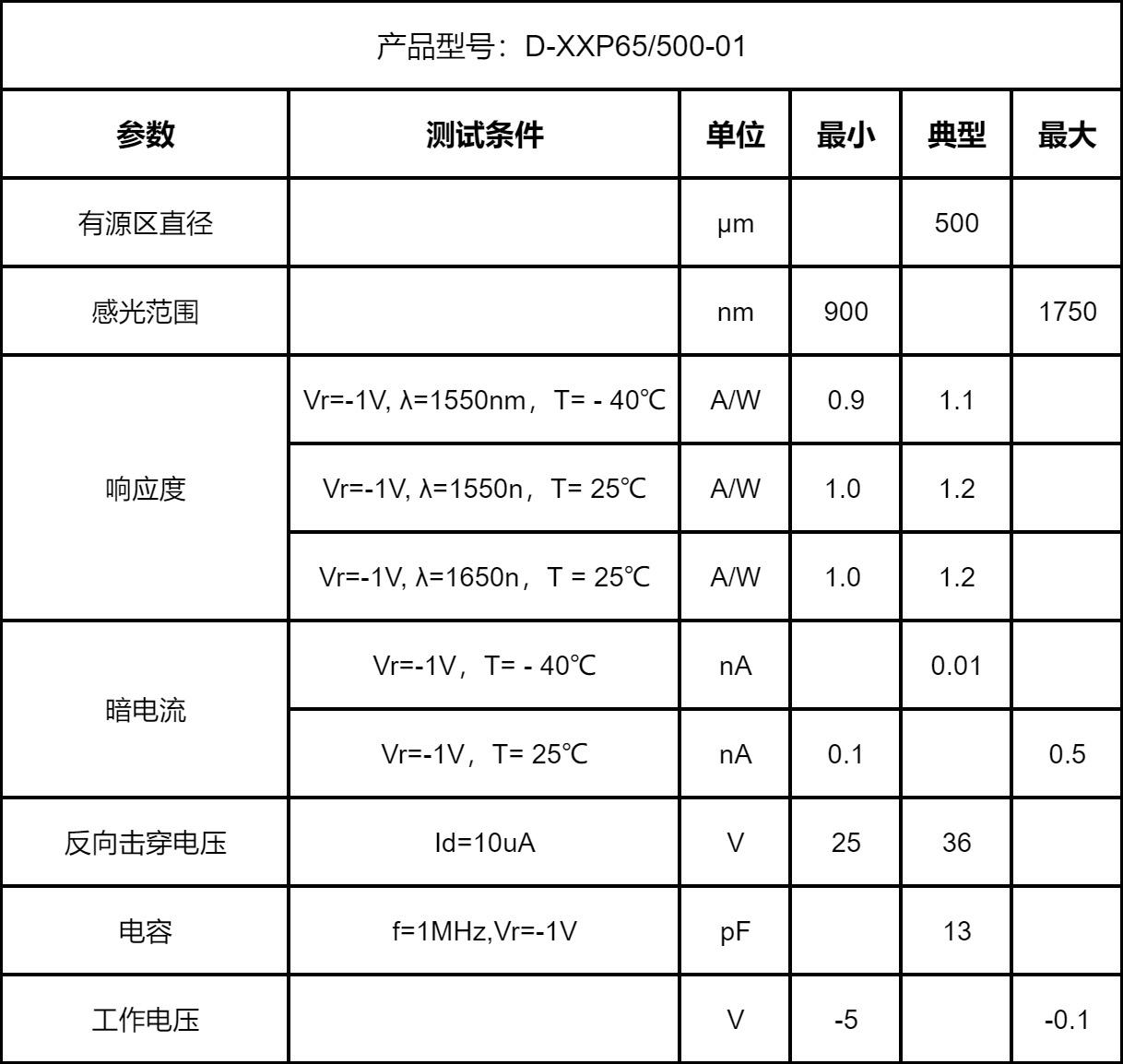

D-XXP65/500-01
Active Area Diameter: 500μm Spectral Range: 900-1750nm Responsivity (A/W) Vr=-1V, λ=1550nm, T=-40°C: 0.9-1.1 Responsivity (A/W) Vr=-1V, λ=1550nm, T=25°C: 1.0-1.2 Responsivity (A/W) Vr=-1V, λ=1650nm, T=25°C: 1.0-1.2 -
D-10P50F-01
Reverse breakdown Voltage: 30-35V Dark Current: 0.1-1nA Responsivity: 0.9-1A/W -3dB Bandwidth: 8GHz Capacitance: 0.25-0.3pF -
D-10A40F-01
Reverse Breakdown Voltage (Vbr): 28-37-41V Dark Current (Id): 10-20nA Responsivity (R): 0.8-1A/W -3dB Bandwidth (f) M=10: 6GHz -3dB Bandwidth (f) M=3: 7GHz -

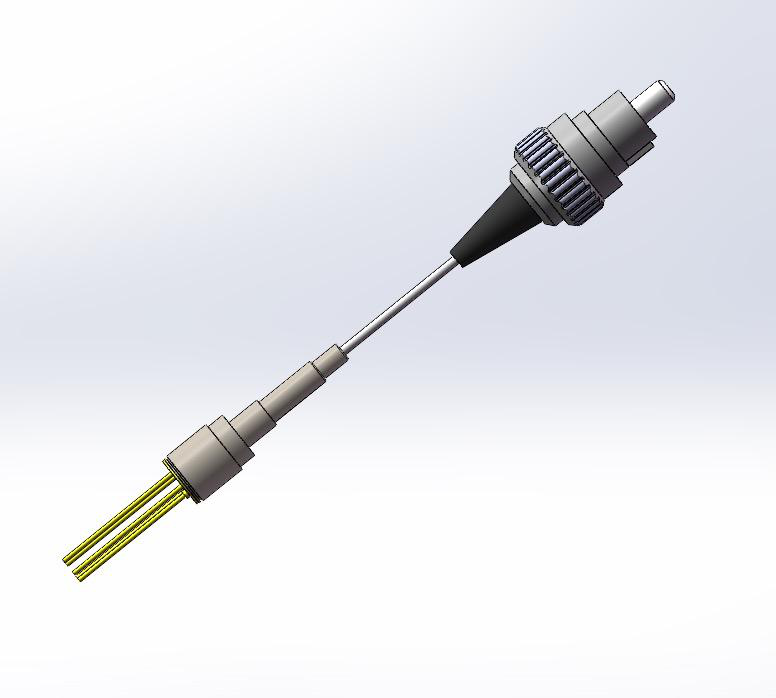

D-10A40F-01-60W5B-R
Active Area Diameter: 40μm Wavelength Range: 960-1550-1700nm Sensitivity: -30dBm Reverse breakdown Voltage: 28-37-41V Dark Current: 100nA -

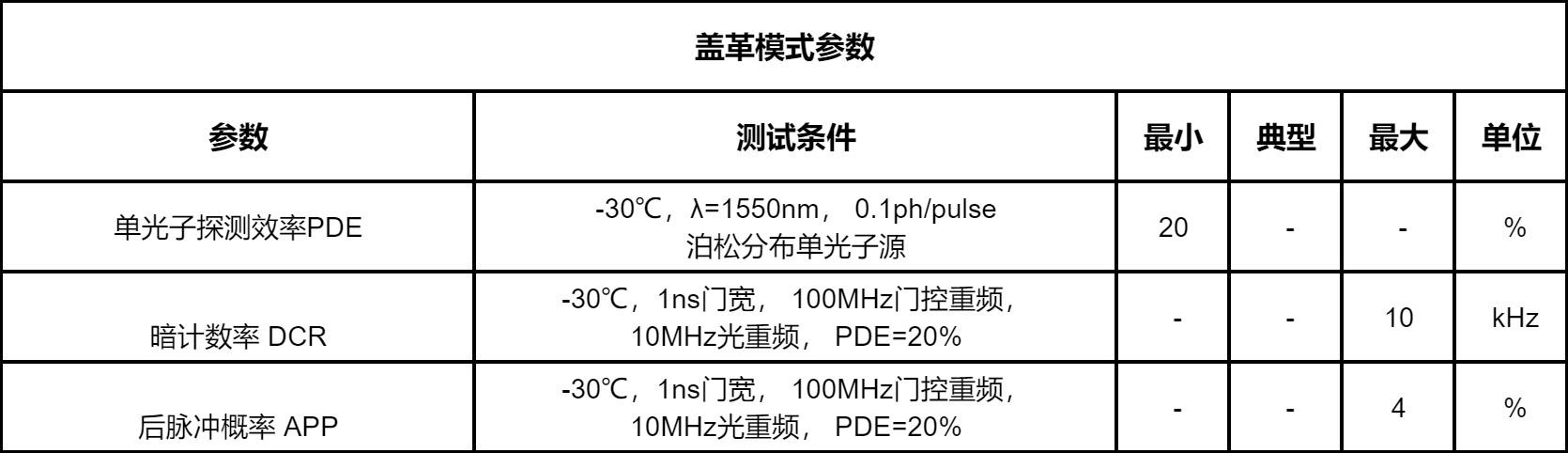

盖革模式光电探测器
Single Photon Detection Efficiency: 20%- Dark Count Rate: -10kHz Afterpulse Probability: -4% -

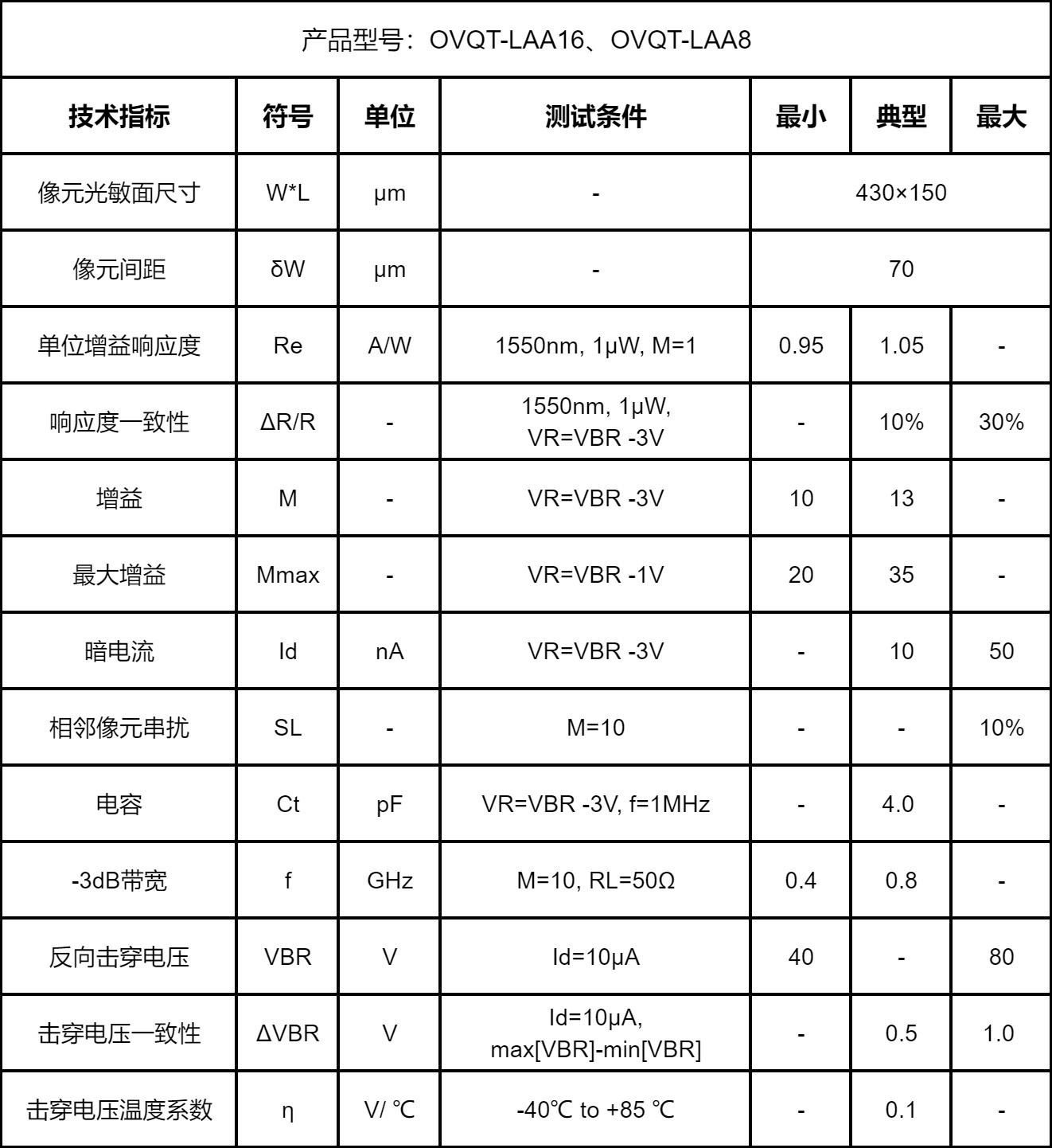

OVQT-LAA16, OVQT-LAA8
Pixel Sensitive Area Size (μm): 430×150 Pixel Pitch (μm): 70 Unit Gain Responsivity (A/W): 0.95-1.05 Responsivity Uniformity: -10%-30% Gain: 10-13 -

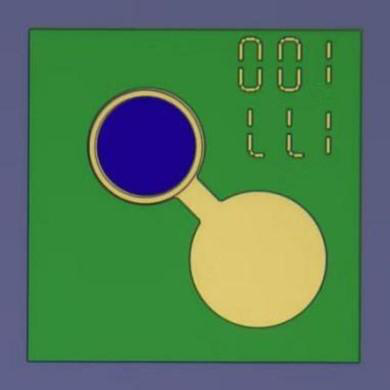

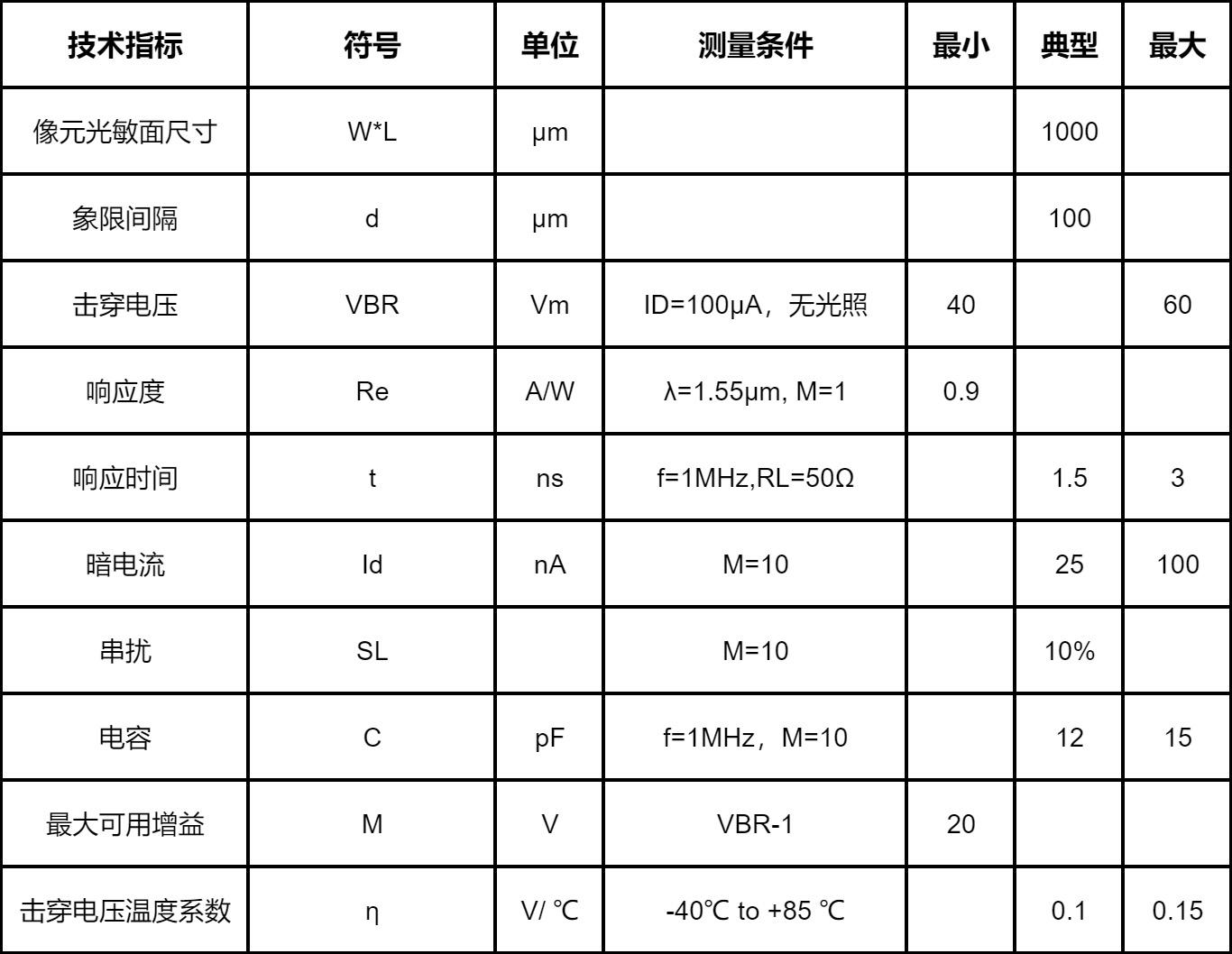

Unknown
Pixel Sensitive Area Size: 1000μm Quadrant Spacing: 100μm Breakdown Voltage: 40-60Vm Responsivity: 0.9A/W Response Time: 1.5-3ns
