Conventional Beamsplitter Cube

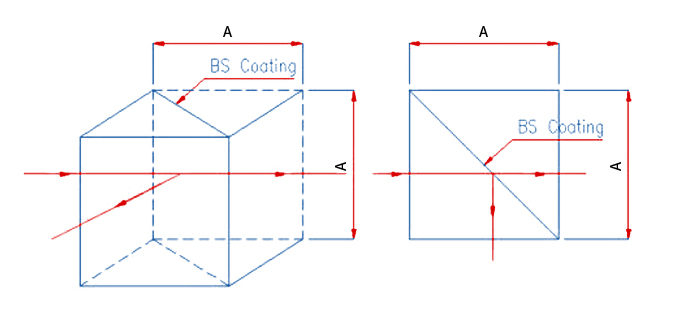

A conventional beamsplitter cube consists of two right-angle prisms. One hypotenuse face has a metallic coating or a highly reflective dielectric coating, while the other faces have AR coatings.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Material | H-K9L B-BK7 JGS1 |
| Dimensions | 10mm 12.7mm 20mm 25.4mm 50.8mm or Custom |
| Dimensional tolerance 。 | +0.00/-0.05 |
| Surface Quality | 20-10 10-5 |
| CA | >90% |
| Surface Flatness [@633nm] | 1/10 λ@633nm |
| Transmission / Reception [±5%; under Natural Light] | 50/50±5%; under natural light, T=(Ts+Tp)/2 and R=(Rs+Rp)/2. |
| Wavelength | 488、532、632.8、650、808、850、980、1064、1310、1550 nm 450-650、650-900、900-1200、1200-1550、1500-1610 nm |
Datasheet
