1.5 μm Ultralow-Noise Seed Source
The 1.5 μm ultralow-noise seed source is entirely independently owned intellectual property with internationally leading performance. An innovative combined optical and optoelectronic feedback noise-suppression scheme achieves intensity noise below −138 dB/Hz over 1 MHz–100 MHz and power stability better than 0.5% over 30 minutes. Features: ultralow intensity noise, exceptional power stability and fully independent intellectual property.
Save to Favorites
Overview

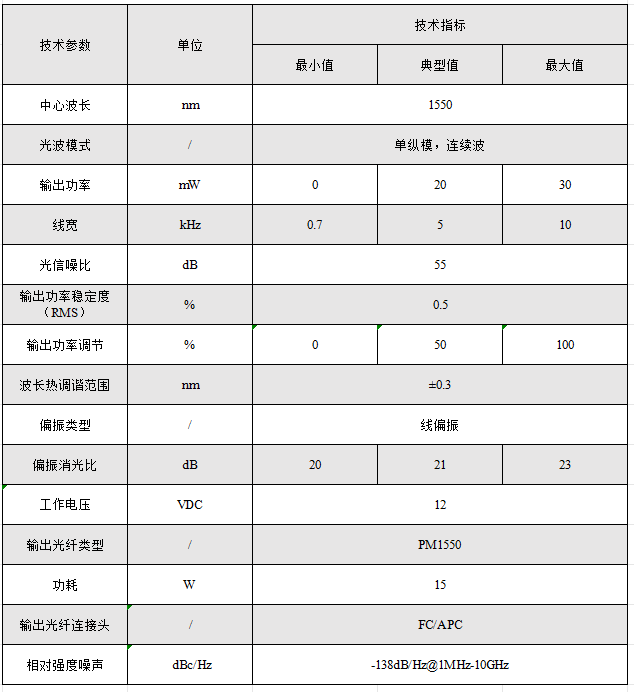

Specifications
| Parameter | Value |
|---|---|
| Center wavelength | 1550 nm |
| Optical Wave Mode | Typical ： Single longitudinal mode , CW |
| Output Power | Typical ：20 mW； Max ：30 mW |
| Linewidth | Min ：0.7 kHz； Typical ：5 kHz； Max ：10 kHz |
| Optical signal-to-noise ratio | 55 dB |
| Output Power Stability (P-P) | <0.5 % |
| Output Power adjustment | 1-100 % |
| Operating temperature | Min ：-10 °C； Max ：45 °C |
| Polarization type | Linear polarization |
| Polarization Extinction ratio | Min ：20 dB； Typical ：21 dB； Max ：23 dB |
| Operating voltage | 12 VDC |
| Output Fiber Type | PM1550 |
| Power consumption | 15 W |
| Output Fiber connector | FC/APC |
| Intensity Noise [@1MHz-10GHz] | <-138@1MHz-10GHz |
