1.0 μm Ultralow-Noise Laser Seed Source
The 1.0 μm ultrastable, low-noise laser seed source is designed for advanced applications including new-energy laser driving, coherent lidar, precision interferometry and quantum optics. Low-RIN laser technology and highly stable power control suppress accumulated system noise, providing long-term power stability and extremely low intensity fluctuations to improve detection sensitivity and precision. Features: ultralow intensity noise, exceptional power stability and fully independent intellectual property.
Save to Favorites
Overview
Specifications

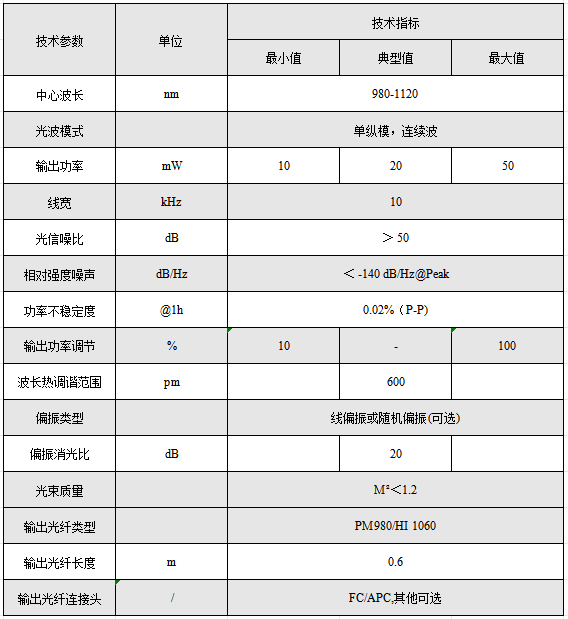

| Parameter | Value |
|---|---|
| Wavelength Range | 980-1120 nm |
| Optical Wave Mode | Single longitudinal mode ， CW |
| Output Power | Min ：10 mW； Typical ：20 mW； Max ：50 mW |
| Linewidth | 10 kHz |
| Optical signal-to-noise ratio | >50 dB |
| Relative Intensity Noise [Peak] | <-140 dB/Hz |
| Output Power Instability [1h(P-P)] | 0.02 % |
| Output Power adjustment | Min ：10 %； Max ：100 % |
| Wavelength Thermal Tuning Range | Typical ：600 pm |
| Polarization type | Linear polarization |
| Polarization Extinction ratio | Typical ：20 dB |
| Beam quality M² | <1.2 |
| Operating voltage | 5 VDC |
| Power consumption | 13 W |
| Operating temperature | Min ：-10 °C； Max ：45 °C |
| Storage temperature | Min ：-40 °C； Max ：70 °C |
| Output Fiber Type | PM980/HI1060 |
| Output Fiber Length | 0.6 m |
| Output Fiber connector | FC/APC， Other optional |
| Specifications Dimensions | 175(L)*140(W)*25(H) |
