VDS20C-X508WP VDS20C series (5-megapixel) color vision sensor
Save to Favorites
Specifications
| Parameter | Value |
|---|---|
| Working Principle | Smart vision sensor |
| Housing Style | Square Type |
| Detection distance | 100~200 mm |
| Focal Length | 8 mm |
| Focusing method | Mechanical focus |
| Frame rate | 30 fps |
| Light source | Non-polarized standard white light |
| Imaging color | Color |
| Shutter | Rolling shutter |
| Indicator light | 1 green light spot indicating the center area of the scan position; 5 status LEDs and buzzer |
| Pixel size | 2.2 μm × 2.2 μm |
| Sensor size | 1/2.5‘’ |
| Exposure time | 20 μs~100000 μs |
| Operating voltage | 24 V DC |
| Power consumption | 15 W |
| Output Mode | Two-channel input control; optocoupler isolated input; supports NPN/PNP type; three-channel optocoupler isolated output |
| Communication Protocol | TCP Server/TCP Client/Modbus TCP/Modbus RTU/ProfiNet/Ethernet/IP/MELSEC/SLMP/Serial |
| Communication Interface | RS232/RJ45 |
| Operating Temperature | 0~45 ℃ (no freezing) |
| Storage Temperature | -20 ℃~70 ℃ (non-freezing) |
| Working Humidity | 5 %~95 % RH (no condensation) |
| Storage humidity | 5 %~95 % RH (no condensation) |
| IP Rating | IP67 |
| Connection Method | M12/8-pin connector + M12/12-pin connector |

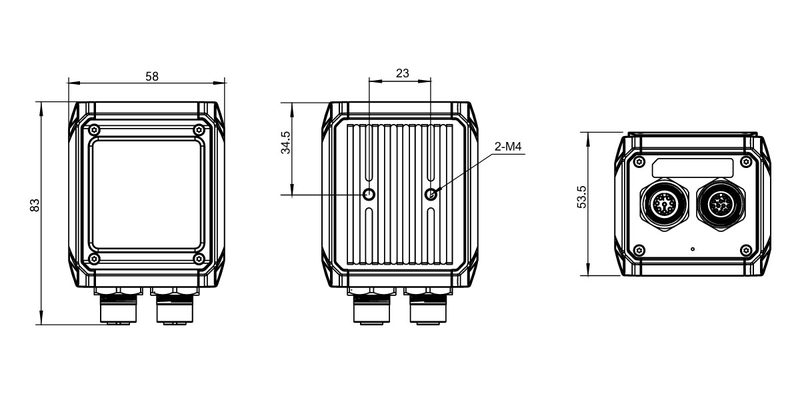

| Dimensions | 58 mm × 53.5 mm × 69 mm |
| Weight | Approx. 220 g |
| Accessories | M12-8PIN-3M (high-flex), M12-12PIN-3M (high-flex), L-shaped bracket, screw kit |
