VDS10-BH0106-RD VDS10 series (1-megapixel) monochrome vision sensor
Save to Favorites
Specifications
| Parameter | Value |
|---|---|
| Working Principle | Smart vision sensor |
| Housing Style | Square Type |
| Detection distance | 30~300 mm |
| Focal Length | 6 mm |
| Focusing method | Manual focus |
| Frame rate | 60 fps |
| Light source | Polarized red light |
| Imaging color | Monochrome |
| Shutter | Global |
| Indicator light | 2 green light dots indicate the center area of the code scanning position; 3 status LEDs and a buzzer |
| Pixel size | 3 μm × 3 μm |
| Sensor size | 1/4" |
| Exposure time | 20 μs~10000 μs |
| Gain | 0 ~ 255 dB |
| Operating voltage | 24 V DC |
| Power consumption | 5 W |
| Output Mode | Two-channel input control; optocoupler isolated input; supports NPN/PNP type; three-channel non-isolated output |
| Communication Protocol | TCP Server/TCP Client/Modbus TCP/Modbus RTU/ProfiNet/Ethernet/IP/MELSEC/SLMP/Serial |
| Communication Interface | RS232/RJ45 |
| Operating Temperature | 0~45 ℃ (no freezing) |
| Storage Temperature | -20 ℃~70 ℃ (non-freezing) |
| Working Humidity | 5 %~95 % RH (no condensation) |
| Storage humidity | 5 %~95 % RH (no condensation) |
| IP Rating | IP67 |
| Connection Method | M12/17-pin pigtail connector (30 cm) |

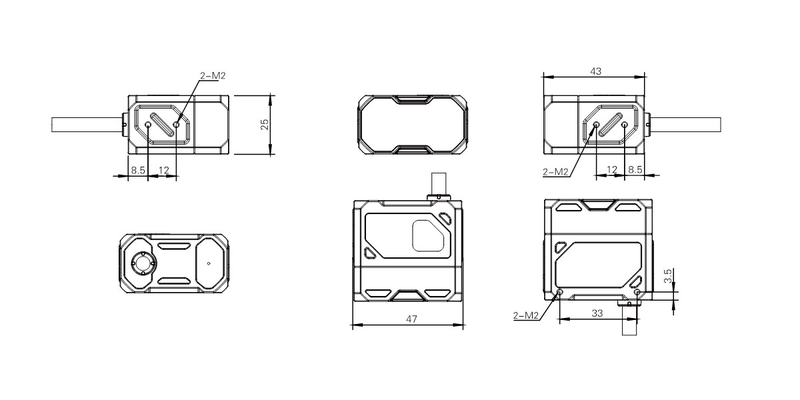

| Dimensions | 47 mm × 25 mm × 43 mm |
| Weight | Approx. 100 g |
| Accessories | 3 m branch composite cable, L-shaped bracket, 24 V power adapter (optional), screw kit |
