RCH10-0206U RCH series handheld code reader
Save to Favorites
Specifications
| Parameter | Value |
|---|---|
| Working Principle | CMOS |
| Housing Style | Handle type |
| Detection distance | DM 5 mil:10~60 mm;DM 10 mil:10~100 mm |
| Field of view | Horizontal: 31 °; Vertical: 20 ° |
| Inspection angle | Tilt angle: ±60 °; skew angle: ±60 °; rotation angle: 360 ° |
| Symbol contrast | 20 % |
| Minimum reading precision | DM 5 mil |
| Focal Length | 6.8 mm |
| Frame rate | 60 fps |
| Light source | White LED |
| Barcode types | 1D codes: Code 39/Code 93/Code 128/EAN-8/EAN-13/Interleaved 2 of 5/UPC; 2D codes: QR code/DataMatrix |
| Aimer | Green LED |
| Indicator light | Tri-color LED, OLED display, buzzer, vibrator |
| Pixel size | 3 μm × 3 μm |
| Sensor size | 1/4" |
| Operating voltage | 12~24 VDC;USB:5 V DC |
| Power consumption | 2 W |
| Communication Protocol | USB(HID/CDC) |
| Communication Interface | USB2.0 |
| Lens mount | M8 |
| Trigger | Single trigger button, four user interaction buttons |
| Button lifespan | 100,000 times |
| Drop height | 2 m |
| User software | CCS |
| Operating Temperature | -10 ℃~45 ℃ (no freezing) |
| Storage Temperature | -30 ℃~70 ℃ (no freezing) |
| Working Humidity | 20 %~95 % RH (no condensation) |
| Storage humidity | 5 %~95 % RH (no condensation) |
| IP Rating | IP65 |
| Connection Method | Wire harness |

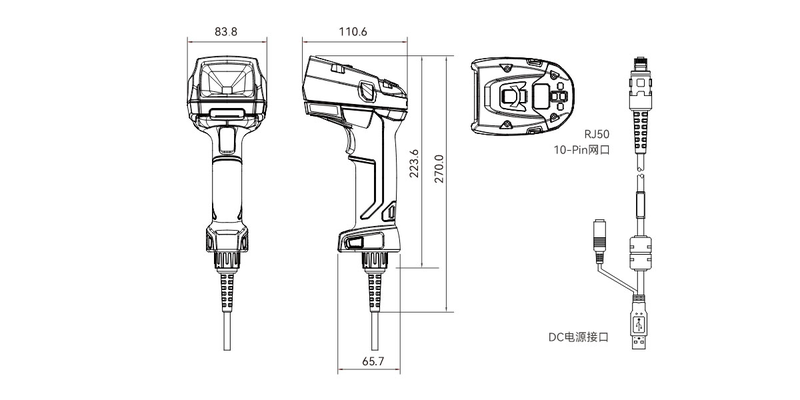

| Dimensions | 223.6 mm × 110.6 mm × 83.8 mm |
| Weight | Approx. 380 g |
