RCH12-03DEP RCH12 series handheld code reader
Save to Favorites
Specifications
| Parameter | Value |
|---|---|
| Working Principle | CMOS |
| Housing Style | Handle type |
| Detection distance | DM(5 mil):25~60 mm;DM(15 mil):10~100 mm;QR(5 mil):25~70 mm;QR(15 mil):10~100 mm;Code 128(5 mil):25~75 mm;Code 128(15 mil):20~210 mm |
| Field of view | Horizontal: 40 °; Vertical: 30 ° |
| Inspection angle | Tilt angle: ±60 °; skew angle: ±60 °; rotation angle: 360 ° |
| Symbol contrast | 20 % |
| Minimum reading precision | 5 mil |
| Focal Length | 4.8 mm |
| Frame rate | 60 fps |
| Light Source | Direct light: red/blue switchable, optional UV light; uniform light: red |
| Barcode types | 1D codes: Code 39/Code 93/Code 128/EAN-8/EAN-13/Interleaved 2 of 5/UPC; 2D codes: QR code/DataMatrix |
| Aimer | Red laser |
| Indicator light | Tri-color LED, OLED display, buzzer, vibrator |
| Pixel size | 3 μm × 3 μm |
| Sensor size | 1/4" |
| Operating voltage | 12~24 V DC |
| Power consumption | 2 W |
| Communication Protocol | TCP/IP,EIP,MC,Profinet,Modbus TCP,RS232 |
| Communication Interface | RJ45, RS-232, DC terminal |
| Lens mount | M5 |
| Trigger | Single trigger button, four user interaction buttons |
| Button lifespan | 100,000 times |
| Drop height | 1.5 m |
| User software | XS Reader |
| Operating Temperature | -10 ℃~45 ℃ (no freezing) |
| Storage Temperature | -30 ℃~70 ℃ (no freezing) |
| Working Humidity | 20 %~80 % RH (no condensation) |
| Storage humidity | 5 %~95 % RH (no condensation) |
| IP Rating | IP42 |
| Connection Method | Plug-in type (cable included) |

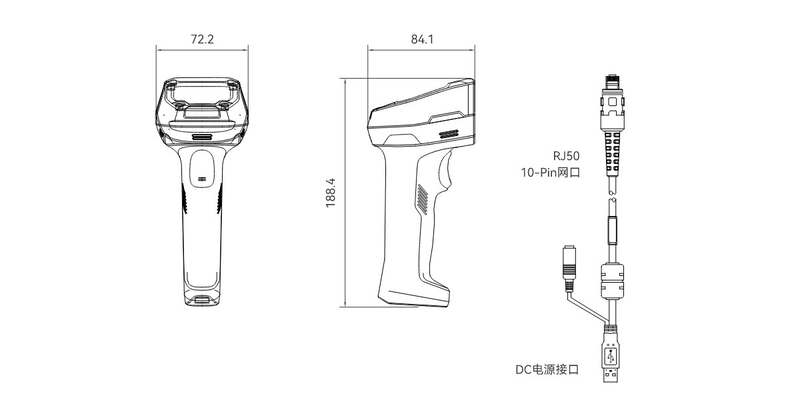

| Dimensions | 188.4 mm × 84.10 mm × 72.2 mm |
| Weight | Approx. 220 g (excluding cable) |
