RCD-AI100-X16RD RCD series fixed-mount code reader
Save to Favorites
Specifications
| Parameter | Value |
|---|---|
| Working Principle | CMOS |
| Housing Style | Square Type |
| Detection distance | 100~1000 mm |
| Field of view | 240x150 mm/1000 mm |
| Focal Length | 16 mm |
| Focusing method | Mechanical focus |
| Frame rate | 60 fps |
| Light source | Polarized red light |
| Imaging color | Monochrome |
| Barcode types | 1D codes: Code 39/Code 93/Code 128/EAN-8/EAN-13/Interleaved 2 of 5/UPC/Pharmacode; 2D codes: QR code/DataMatrix |
| Shutter | Global |
| Indicator light | 1 green light spot indicating the center area of the scan position; 5 status LEDs and buzzer |
| Pixel size | 3 μm × 3 μm |
| Sensor size | 1/4" |
| Exposure time | 20 μs~1 s |
| Gain | 0 ~ 255 dB |
| Operating voltage | 24 V DC |
| Power consumption | 15 W |
| Output Mode | Two-channel input control; optocoupler isolated input; supports NPN/PNP type; three-channel output control |
| Communication Protocol | TCP Server/TCP Client/Modbus TCP/Modbus RTU/ProfiNet/Ethernet/IP/MELSEC/SLMP/Fins/Serial |
| Communication Interface | RS232/RJ45 |
| Operating Temperature | 0~45 ℃ (no freezing) |
| Storage Temperature | -20 ℃~70 ℃ (non-freezing) |
| Working Humidity | 5 %~95 % RH (no condensation) |
| Storage humidity | 5 %~95 % RH (no condensation) |
| IP Rating | IP67 |
| Connection Method | M12/8-pin connector + M12/12-pin connector |

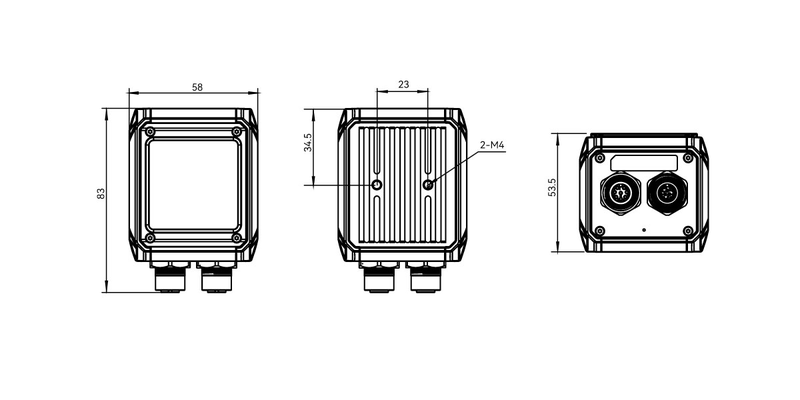

| Dimensions | 58 mm × 53.5 mm × 83 mm |
| Weight | Approx. 220 g |
| Accessories | M12-8PIN-3M (high-flex), M12-12PIN-3M (high-flex), L-shaped bracket, 24 V power adapter (optional), screw kit |
