RCD30-AI120-H06BF RCD30 series fixed-mount code reader
Save to Favorites
Specifications
| Parameter | Value |
|---|---|
| Working Principle | CMOS |
| Housing Style | Square Type |
| Detection distance | 30~300mm |
| Field of view | Horizontal: 38°; Vertical: 25° |
| Focal Length | 6mm |
| Focusing method | Manual focus |
| Frame rate | 120fps |
| Illumination system | Direct light + polarized light + uniform light |
| Light source | Blue LED |
| Imaging color | Monochrome |
| Barcode types | 1D codes: Code 39/Code 93/Code 128/EAN-8/EAN-13/Interleaved 2 of 5/UPC; 2D codes: QR code/DataMatrix |
| Shutter | Global |
| Aimer | 2 green LED dots |
| Indicator light | 2 green light dots indicate the center area of the code scanning position; 3 status LEDs and a buzzer |
| Pixel size | 3 μm × 3 μm |
| Sensor size | 1/3.7" |
| Exposure time | 80μs~50000μs |
| Gain | 1~15dB |
| Operating voltage | 24V DC |
| Power consumption | 3W |
| Output Mode | 2 isolated IO inputs, 2 isolated IO outputs |
| Communication Protocol | RS232，TCP/IP，EIP，FTP，Profinet，Modbus TCP |
| Communication Interface | RS232，Ethernet/100Mbps |
| Operating Temperature | -10℃~50℃（No Freezing） |
| Storage Temperature | -20℃~70℃ (non-freezing) |
| Working Humidity | 5%~95% RH (no condensation) |
| Storage humidity | 5%~95% RH (no condensation) |
| Protection Rating | IP65 |
| Connection Method | Connector |

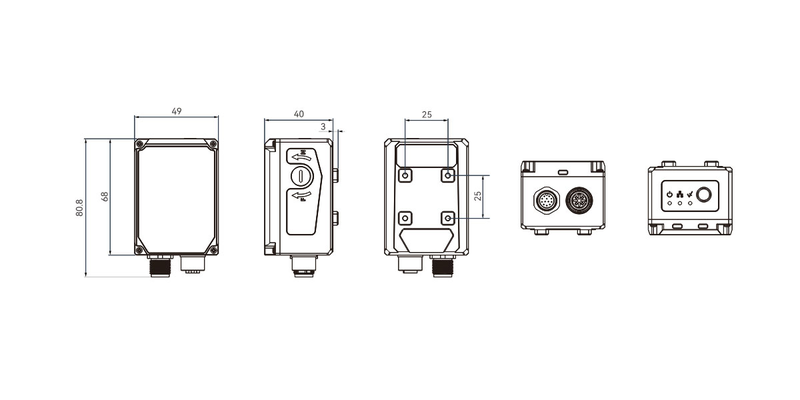

| Dimensions | 68 mm × 49 mm × 40 mm |
| Weight | Approx. 200g |
Datasheet
