PSIL-90 High-Precision
PSIL-90 is a hand-held high-precision electro-stunting imaging detection device;
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| UV optical | 1 pC@15 m Tested and certified by Innogy SE-European Germany: IEC 60270:2000 |
| Minimum RIV Detection | 3.6 dB uV (RIV)@1MHz@10m tested and certified by Innogy SE-Eurotest: NEMA107-1987 Minimum |
| UV Sensitivity | 1.5 x 10718watt/cm2 |
| Field of View | H:10° - 1.6°V: 5.6° - 0.9° optical and numerically synchronized with visible channels |
| Focus | Full manual and automatic focus of both corridors |
| UV Zoom | 2 times optic 6.25 times, from visible light channels |
| UV Spectral Range | 240-280nm |
| Ultraviolet Visible Light Collar with Precision | Offset <1 mradians |
| Minimum Visible-Light Sensitivity | 0.07 Lux |
| Video Standard | HYDRA, 720p, 1280X 720px |
| View | Horizontal H:10° - 1.6°V: 5.6° -0 g° optical and numerically synchronized with U-channels |
| Focus Range | 0.6m ~ Infinite distance, automatic and manual |
| Visible Focus | 25 times optical, 12 times numerical, continuous |
| UV and Visible Channel Display Mode | Combined WV and Visible Light, UV only, Visible Light only |
| Input | Keyboards, backlights, menus, automatic entry paper, microphones, GPS, temperature and humidity |
| Output | HOMI, Auxiliary, 1GB Ethernet, Bluetooth, Wi-Fi, Mini USB, speaker (inline + external) |
| Flashlight | Inside, LED, 2 moves |
| Operating and Storage Temperature Range | -20°0 to +552C, no fan |
| Weight | 2.2 Kg |
| Power Consumption | 15 W |
| Mounting Point | Standard 1/4 inch x 20 thread tripod installed |
| Videos and Images | Gallery display and replay video, audio and static images |
| Type | Colour, readable in the sun, TFT LCD |
| Video Format | MOV res. 720p |
| Resolution | WVGA, 800 x 480 Pixels RGB |
| Dimensions | 5" |
Datasheet
Please provide your email to download the datasheet.
Invalid email format. Please try again.
Supplier Information
Related Products
-
Image Test Chart
Optical Inspection
Uvataoptics
1. Image test chart design and processing services with precision up to 25400dpi; 2. Inverse-distortion image test chart design and production services; 3. Charts can be made of film or optical glass; 1. Image test chart design and processing services with precision up to 25400dpi; 2. Inverse-distortion image test chart design and production services; 3. Charts can be made of film or optical glass; 1. Image test chart design and processing services with precision up to 25400dpi; 2. Inverse-distortion image test chart design and production services; 3. Charts can be made of film or optical glass; Non-checkerboard SFR chart Non-checkerboard SFR chart Non-checkerboard SFR chart Checkerboard inverse-distortion chart Checkerboard inverse-distortion chart Checkerboard inverse-distortion chart Checkerboard SFR chart Checkerboard SFRch
-

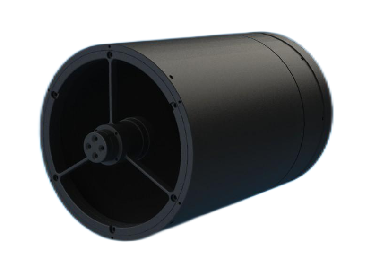

24 Cassegrain Collimator
Optical Inspection
Huanmeioptics
24 Cassegrain collimator Website description 24 Cassegrain collimator Name Description Content Home About Huanmei Product Center LiDAR Antennas Collimators Optical Lenses Opto-mechanical system customization Solutions News & Events Company News Industry News Talent Development Product Center Home > 24 Cassegrain collimator 24 Cassegrain collimator Price: 0.00 Market price: 0.00 Product information Product description Previous: 200mm collimator Next: Industrial lens Company Profile Company Honors LiDAR Antennas Collimators Optical Lenses Opto-mechanical systems Customization News & Events Location: No. 7 Tonglian Road, Jiangning District, Nanjing, Liando U Valley Jiangning High-tech International Building 4#401, Phase III, Enterprise Harbor (Jiangning High-tech Park) Tel: 025-83600641 Manager Li: 18952020697 Manager Cai: 17766089286 Email: njexpert@163.com About Huanmei Product Center Solutions Talent Development copyright © 2022 Nanjing Huanmei Optical Technology Co., Ltd. Company News Industry News This website is powered by Huawei Cloud for computing and security services | Powered By Meicheng Internet
-

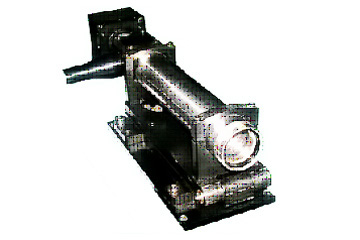

collimator
