Nanopositioning Stage
The REI180LM series nanopositioning stages use high-rigidity sliding-friction bearing systems and non-contact direct drive technology, providing nanometer-level precise positioning throughout the full travel range with millisecond-level fast settling performance. They can be combined with other stage products to build high-performance multi-axis systems.
Save to Favorites
Overview

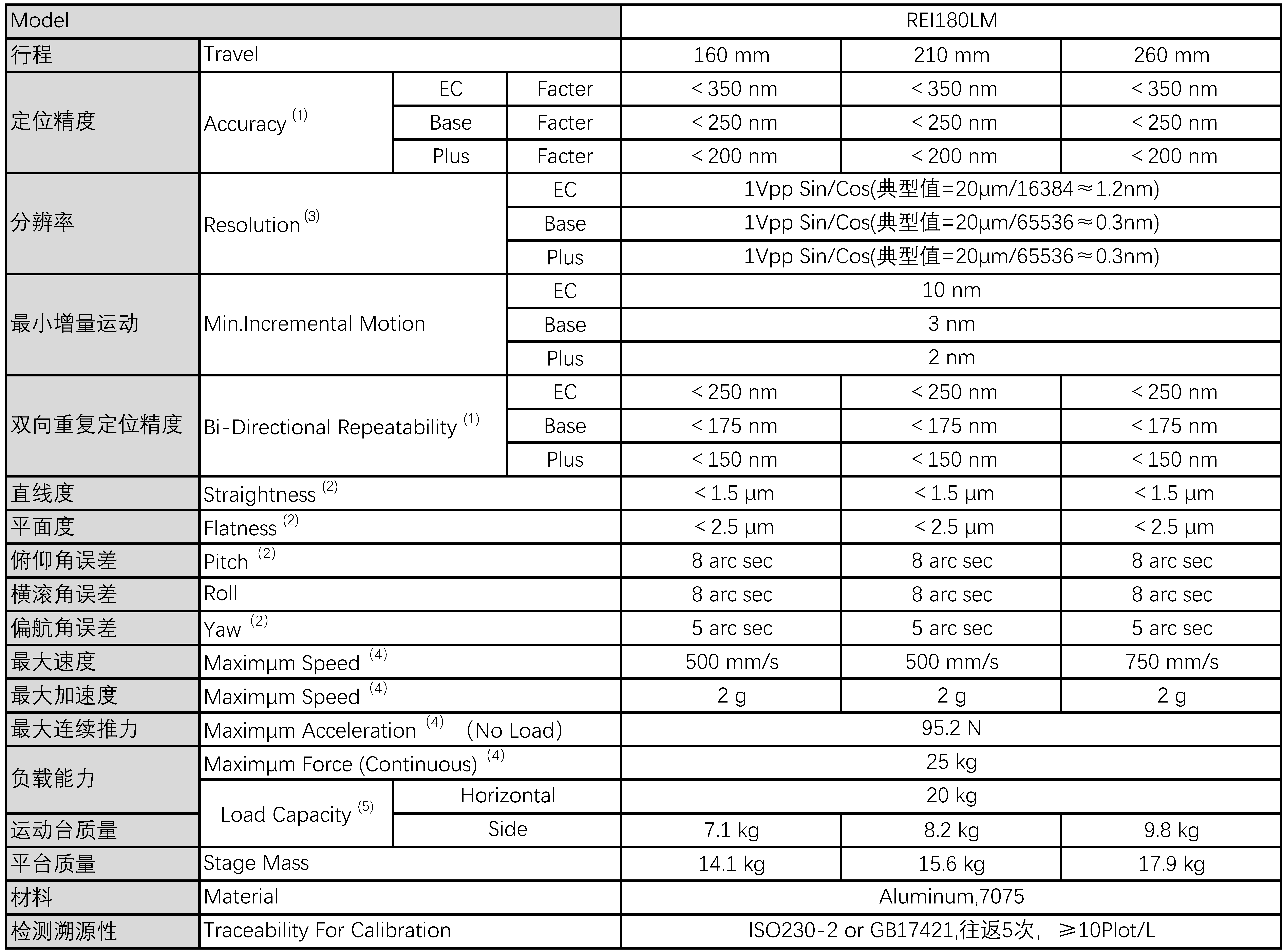

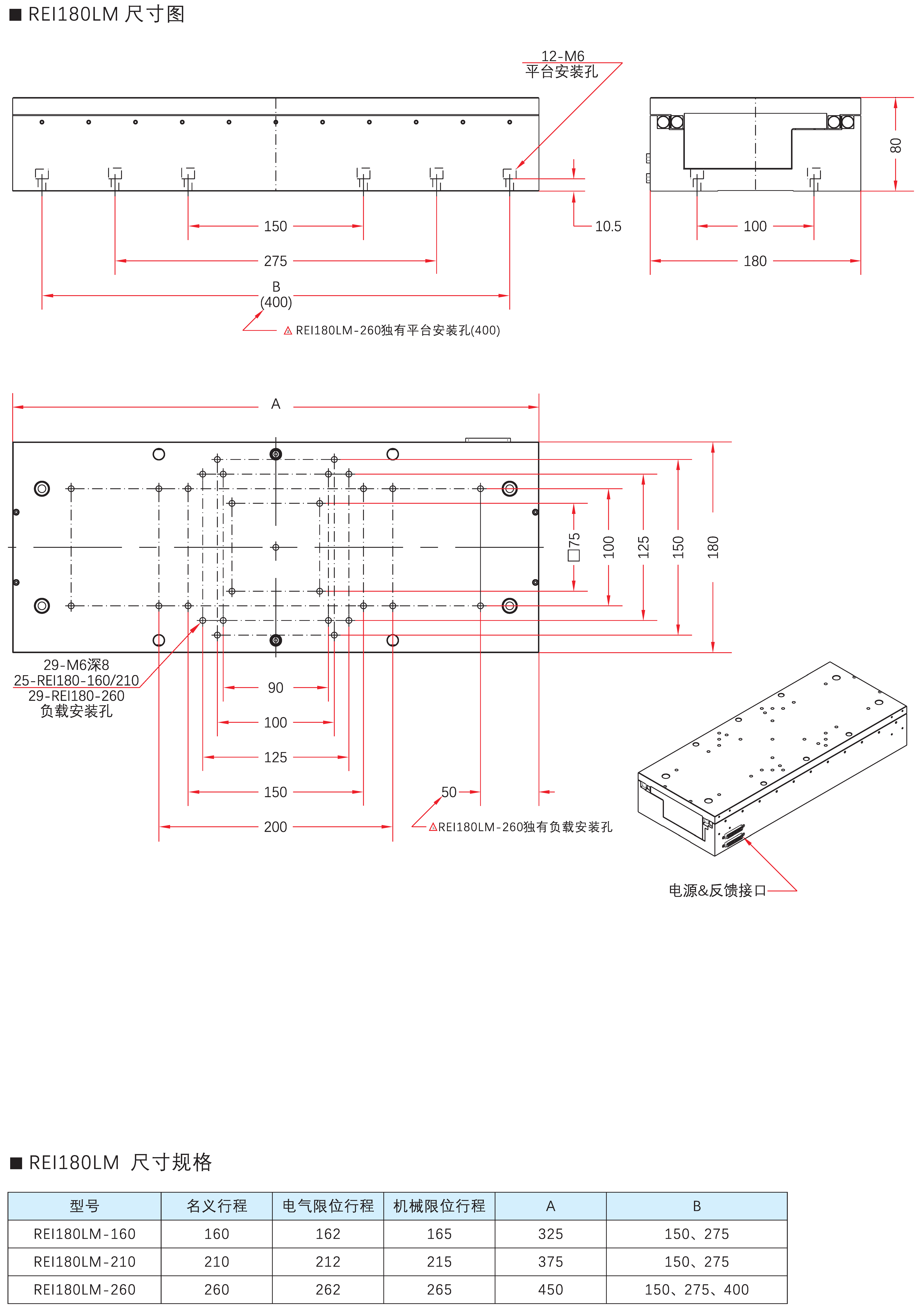

Specifications
| Parameter | Value |
|---|---|
| Straightness | < 1.5 μm |
| Flatness | < 2.5 μm |
| Roll | 8 arc secarc sec |
| Yaw | 5 arc secarc sec |
| Maximum Acceleration | 2 g (No Load) |
| Maximum Force (Continuous) | 95.2 N |
| Load Capacity (Horizontal) | 25 kg |
| Load Capacity (Side) | 20 kg |
| Traceability For Calibration | ISO230-2 or GB17421, 5 bi-directional runs |
Applications
Key Features
Datasheet
Supplier Information
Related Products
-
REI95XY Nanopositioning Stage
Foundation
Cnbhc
Travel: 25mm / 50mm Accuracy: EC: <350nm; Base: <250nm; Plus: <200nm; UHP: <175nm (25mm & 50mm)
The REI95XY is an integrated XY nanopositioning stage available in four accuracy grades: EC, Base, Plus and UHP, with travel options of 25 mm or 50 mm.
-
Sub-Micron Direct Drive Stage
Foundation
Cnbhc
Accuracy (Base): <0.6 μm @300mm; <0.75 μm @400mm; <0.75 μm @500mm; <0.75 μm @600mm Accuracy (Plus): <350 nm @300mm; <400 nm @400mm; <400 nm @500mm; <400 nm @600mm
The SWI560LM Ite IV series sub-micron precision direct drive stage is the latest generation of sub-micron direct drive stages refined through continuous optimization. It delivers high accuracy and high dynamic performance, achieving nanometer-level minimum incremental motion and sub-micron bi-directional repeatability; after linear error compensation, bi-directional repeatability is up to better than 150 nm and positioning accuracy better than 300 nm. The stage is directly driven by a high-efficiency coreless linear motor with zero-clearance transmission and zero cogging, providing smooth motion and outstanding dynamic response. Using a long-life SP-grade rolling-friction guideway bearing system combined with a specially designed low-friction integrated side-sealing structure, it effectively prevents process debris, dust and obvious particles from entering the stage, improving service life; an optional positive-pressure air purge system makes it suitable for industrial applications such as high-dynamic laser processing. The product offers four travel options of 300/400/500/600 mm and two configurations, Base and Plus, with maximum speeds up to 2000 mm/s and a complete single-axis/multi-axis cable management solution; cleanroom, vacuum and low-temperature versions can be provided through special treatment.
-
LMP series
Foundation
Thermo-test
Maximum machine base thickness: 40; 30mm Single Support weight: 4.7; 5.9; 9.3; 18.8kg
Specially formed elastic body subjects are combined with steel presses and outer plates;
-
VC-B structure
Foundation
Thermo-test
Flatness: ≤1.5mm/m² Size differential: ≤±1mm Gravity: ≥100µm
Product details;
-
VC-C Concrete Base
Foundation
Thermo-test
Size differential: ≤±1mm Epoxy thickness: ≥3mm Steel: ≥1.0E+08N/m
Product details;
