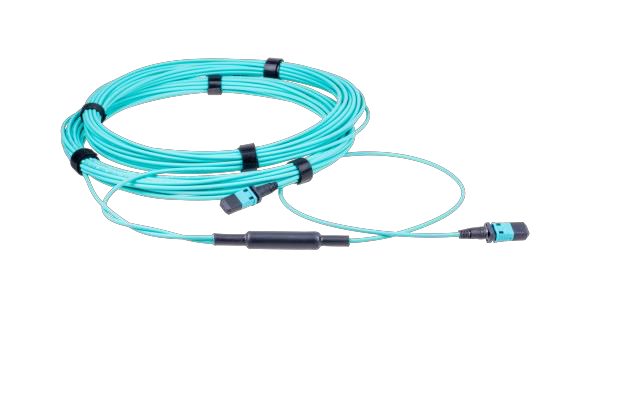

MPO Breakout Cable
HYC's MPO Breakout Cable features MPO connectors on both ends, providing compatibility with existing 24-core optical fiber connectors. It supports 40G transmission and is designed to meet the demands of 100G transmission, offering a cost-effective and low-loss solution for high-speed data transmission. It is widely used in QSFP AOC, QSFP28 AOC, CXP AOC, CFP AOC, and CPAK AOC products.
Specification Snapshot
Length (mm)
500~3000mm (customizable)
Insertion Loss (dB) Standard
<0.50dB
Insertion Loss (dB) Low
<0.35dB
Return Loss (dB)
>20dB
Request a Quote
Download Datasheet
Chat
Overview
HYC's MPO Breakout Cable features MPO connectors on both ends, providing compatibility with existing 24-core optical fiber connectors. It supports 40G transmission and is designed to meet the demands of 100G transmission, offering a cost-effective and low-loss solution for high-speed data transmission. It is widely used in QSFP AOC, QSFP28 AOC, CXP AOC, CFP AOC, and CPAK AOC products.
Specifications
| Parameter | Value |
|---|---|
| End Face Angle 8°/-8° | 8°/-8° |
| Length (mm) | 500~3000mm (customizable) |
| Length Tolerance (mm) | +0.3/-0.0mm~+0.5/-0.0mm |
| Insertion Loss (dB) Standard | <0.50dB |
| Insertion Loss (dB) Low | <0.35dB |
| Return Loss (dB) | >20dB |
| Fiber Count | 8F/12F/16F/24F |
| Fiber Type | OM2/OM3/OM4/OM5 |
Applications
1. Data centers 2. Servers
Key Features
1. Low insertion loss 2. High repeatability and stability 3. Precision and reliability 4. Compliance with GR1435 and RoHS standards
Datasheet
Product Datasheet
PDF
