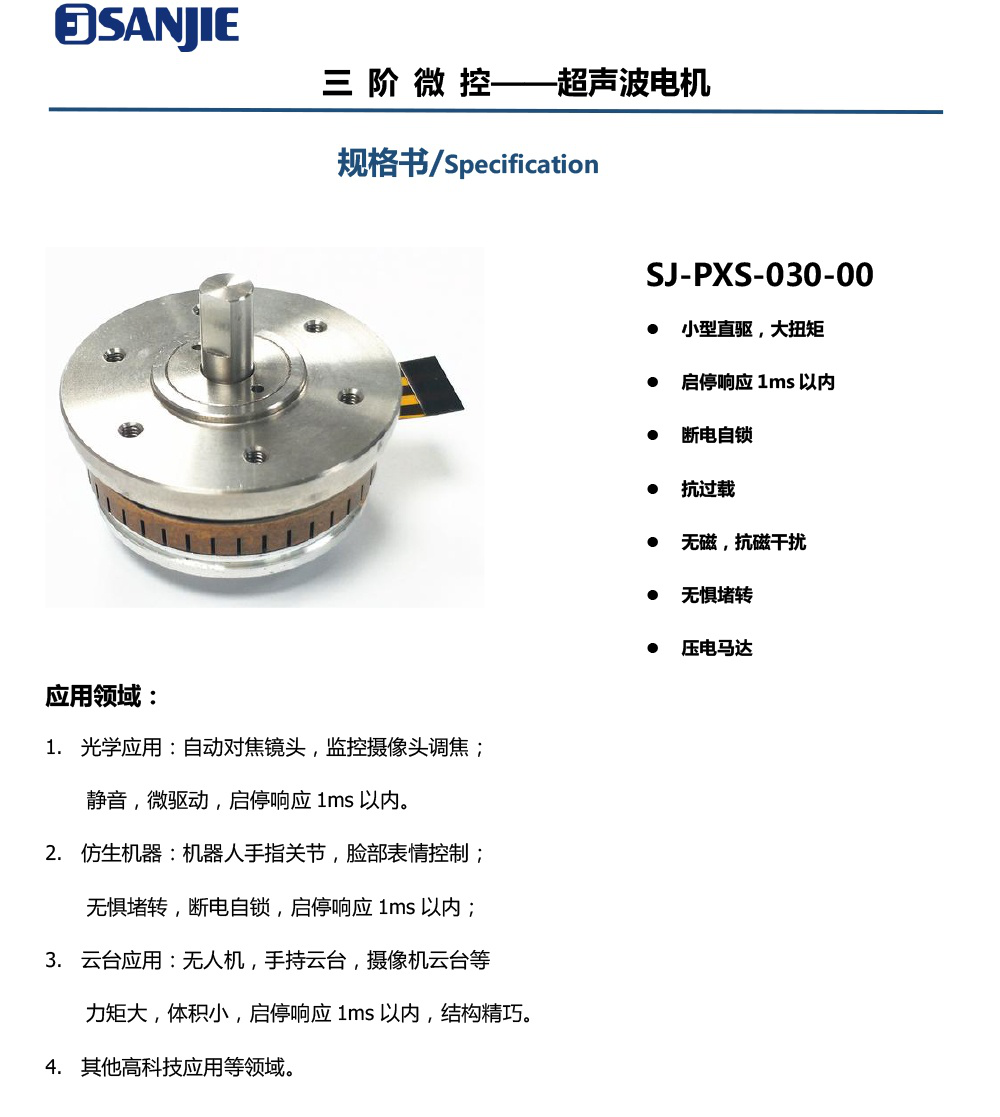

SJ-PXS-030-00

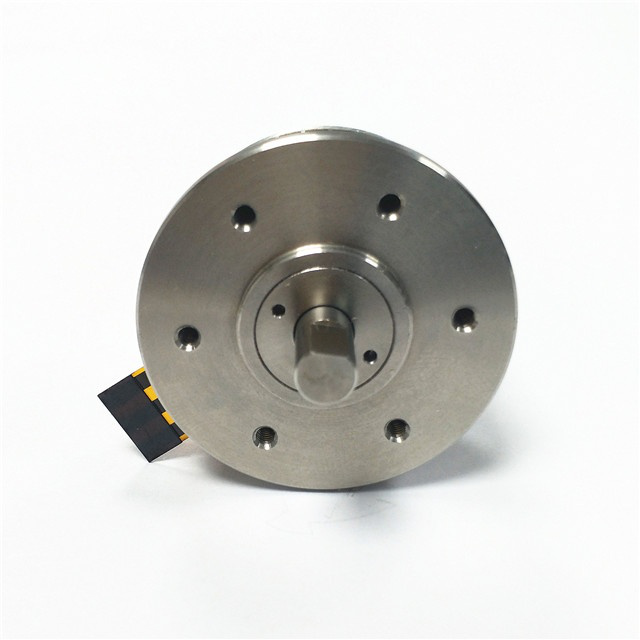

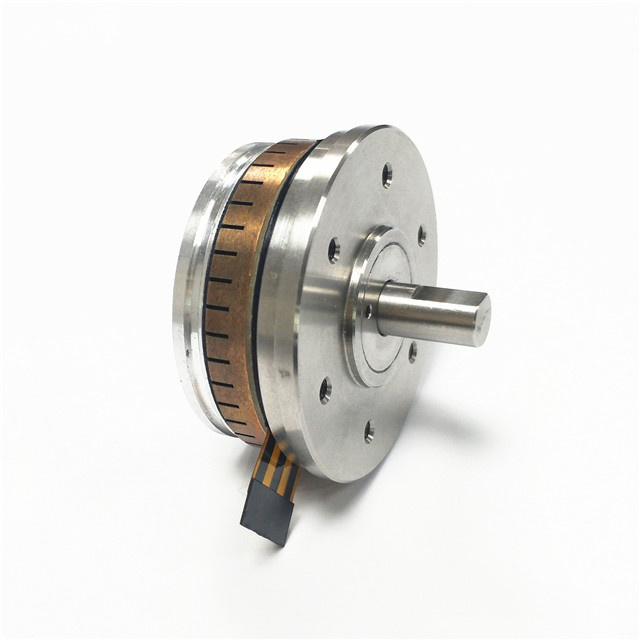

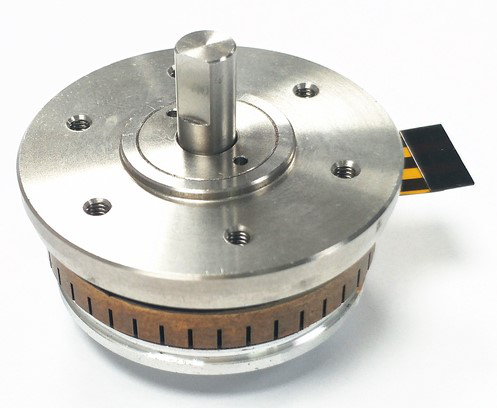

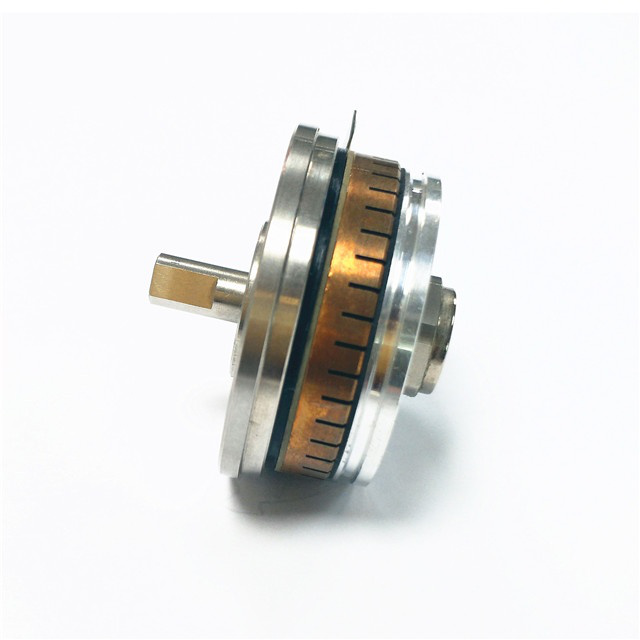

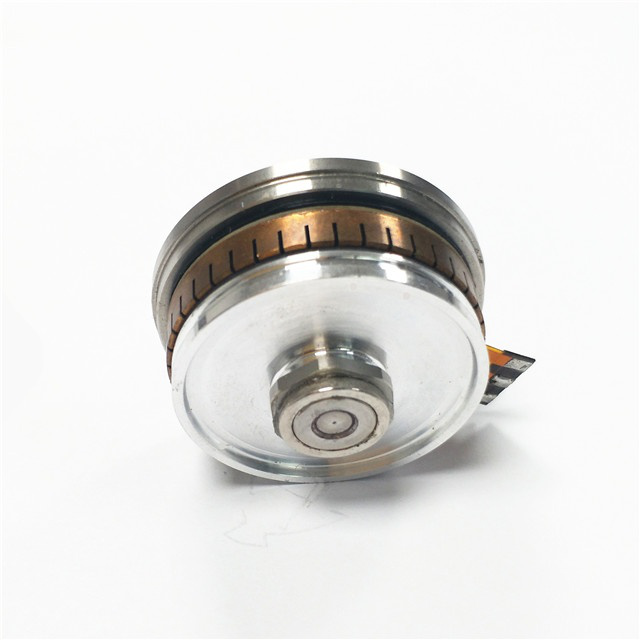

This is a compact ultrasonic motor with high torque and fast response time, suitable for precision applications.
Save to Favorites
Overview

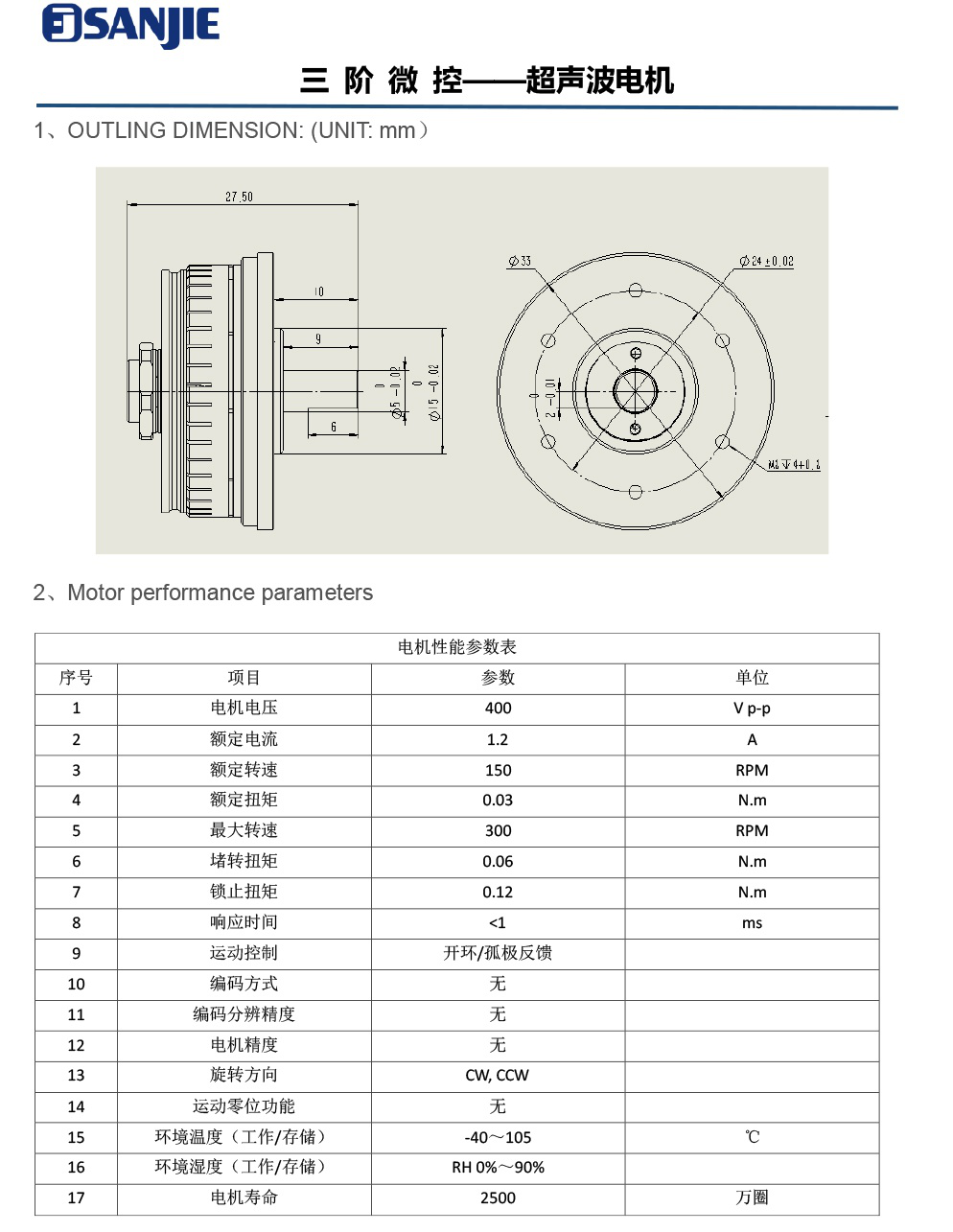

Specifications
| Parameter | Value |
|---|---|
| Motor Voltage | 400Vpp |
| Rated current | 1.2A |
| Rated Speed | 150RPM |
| Rated Torque | 0.03Nm |
| Maximum Speed | 300RPM |
| Stall Torque | 0.06Nm |
| Locking Torque | 0.12Nm |
| Response Time | <1ms |
| Motion Control | Open loop/feedback |
| Encoder Resolution | None |
| Motor Accuracy | None |
| Rotation Direction | CW |
| Rotation Direction | CCW |
| Zero Position Function | None |
| Ambient Temperature (Operation/Storage) | -40~105°C |
| Ambient Humidity (Operation/Storage) | RH 0%~90% |
