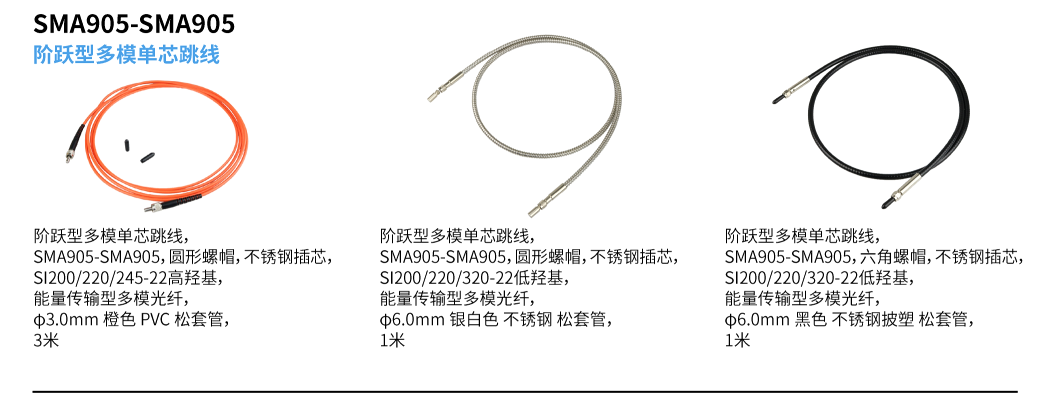

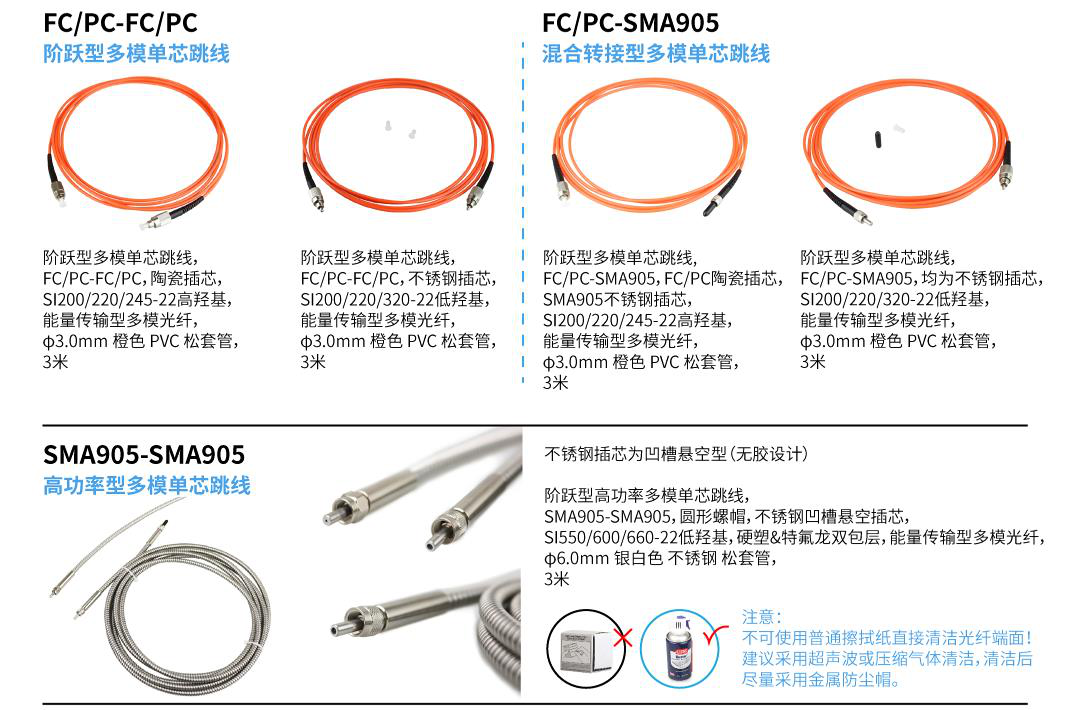

Step-index Multimode Fiber Patch Cables
Step-index multimode fiber patch cables are available with various numerical apertures and lengths, and optional AR coatings for high transmission efficiency. They are widely used in optical power transmission, spectral analysis, and medical applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Transmission Wavelength Range | 190~1200; 350~2500 |
| Common Fiber Core Diameter | 105, 200, 400, 600; 可选50, 60, 100, 800, 1000 |
| Common Numerical Aperture | 0.22; 可选0.14, 0.37 |
| Common Fiber Patch Cable Length | 1, 1.5, 2, 3, 5; 接受定制 |
| Common Protective Tube | PVC管, 铠装管, 金属软管, 带披覆金属软管, TPU管 |
| Spectral Range | 200~1100; 400~2200 |
| Core-Cladding Concentricity | ≤3 |
| Core Non-circularity | ≤3 |
| Transmission Efficiency | 85~98; 90~99 |

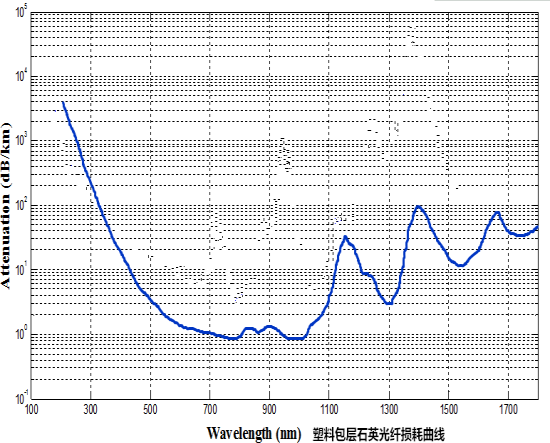

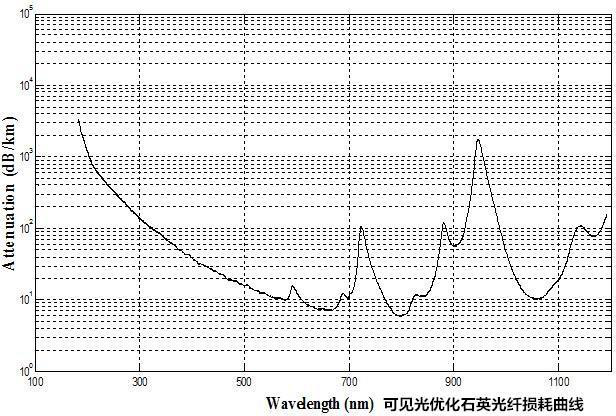

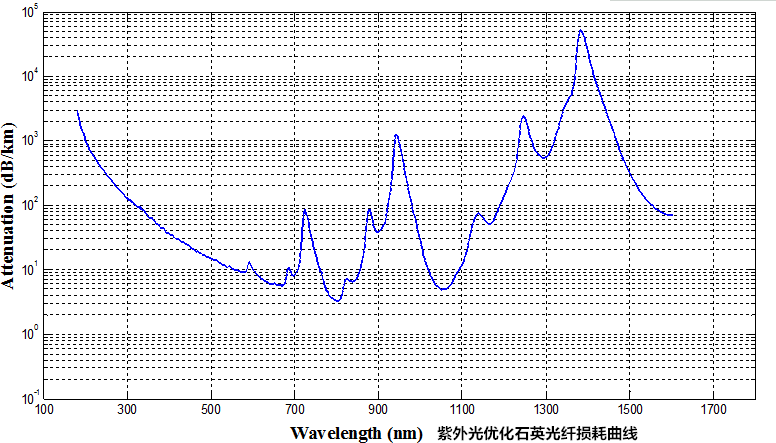

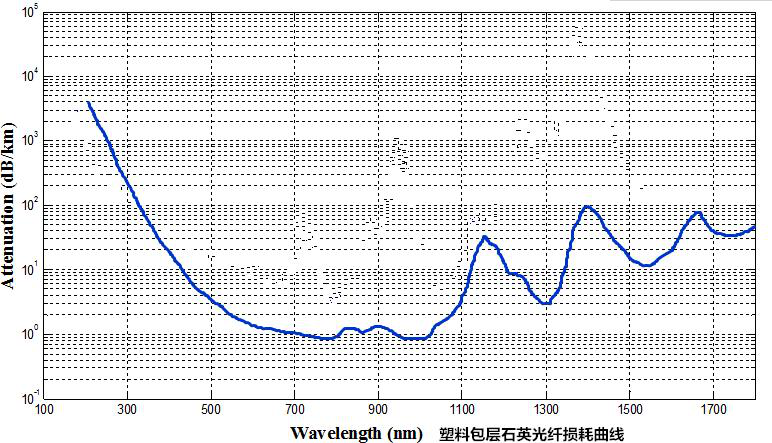

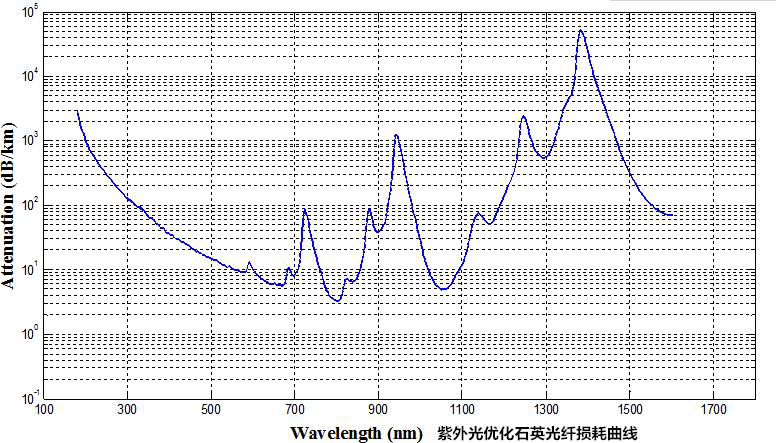

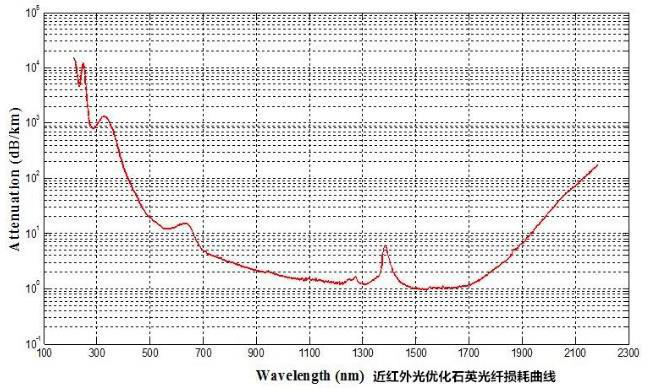

| Attenuation @850nm | ≤8 |
| Transmission Efficiency Range | 紫外(0.2~0.4μm):85~98; 可见光(0.4~0.7μm):97~99; 近红外(0.76~1.6μm):99; 氟气(0.6328μm):98; YAG(1.06μm):98; 氮(0.5145μm):98 |
