FAC-SACA Collimation Module FAC590 with SACA for ES100/P500

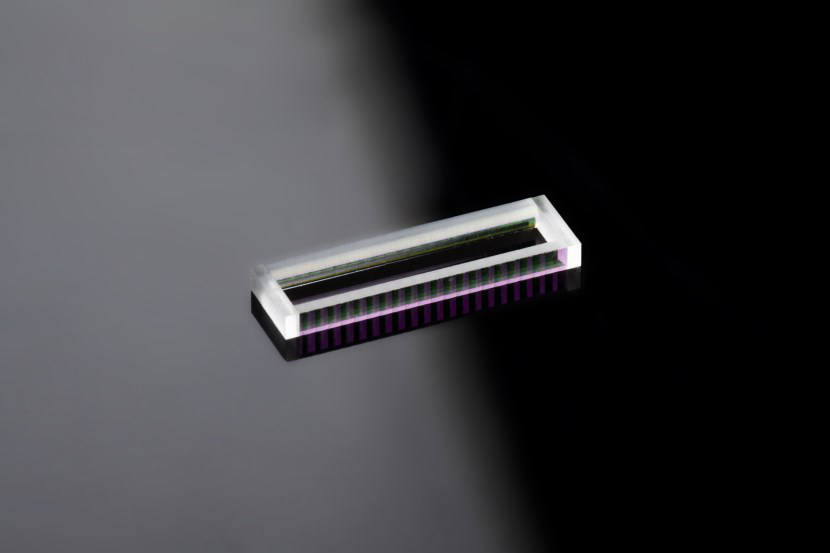

Collimation module consisting of FAC590 and SACA 100-500 mounted with side tabs for the collimation of the fast and slow axis of diode lasers. Emitter size of up to 100μm and emitter pitch 500μm.
Save to Favorites
Overview
Specifications

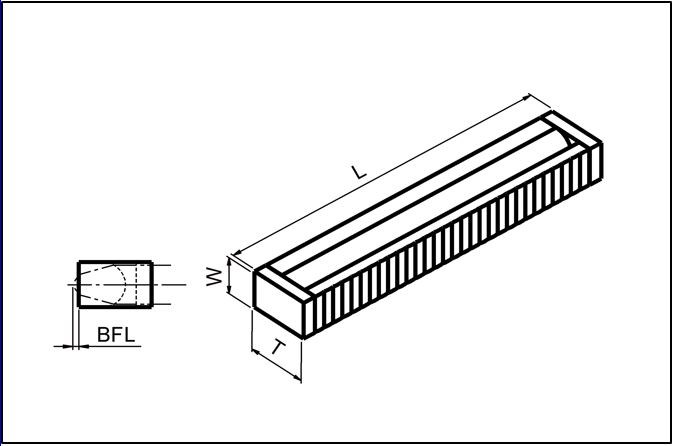

| Parameter | Value |
|---|---|
| Length (L) | 11.5±0.25mm |
| Width (W) | 1.0±0.05mm |
| Thickness (T) | 3.34±0.05mm |
| Clear aperture | 9.5×0.84mm² |
| Back focal length BFL @ 808nm | 0.15mm |
| Fast axis power within an angle of ±1.1mrad | >85% |
| Transmission | >98% |
| AR-coating | 790-990nm |
| Remaining divergence (FW1/e²) for slow axis | 40mrad (typically) |
Applications
Key Features
Datasheet
Supplier Information
Related Products
-
Single/Dual Fiber Collimator (COLL)
Collimators
Lightcomm
Operating wavelength [without connector]: 1310 or 1550, others on request Operating bandwidth [without connector]: ±50 nm Insertion loss [Single fiber; Grade P=Perfect; without connector]: ≤0.2 dB
Collimators are the basic parts for micro optical components like DWDM filter, isolator, circulator, and optical switch.
-

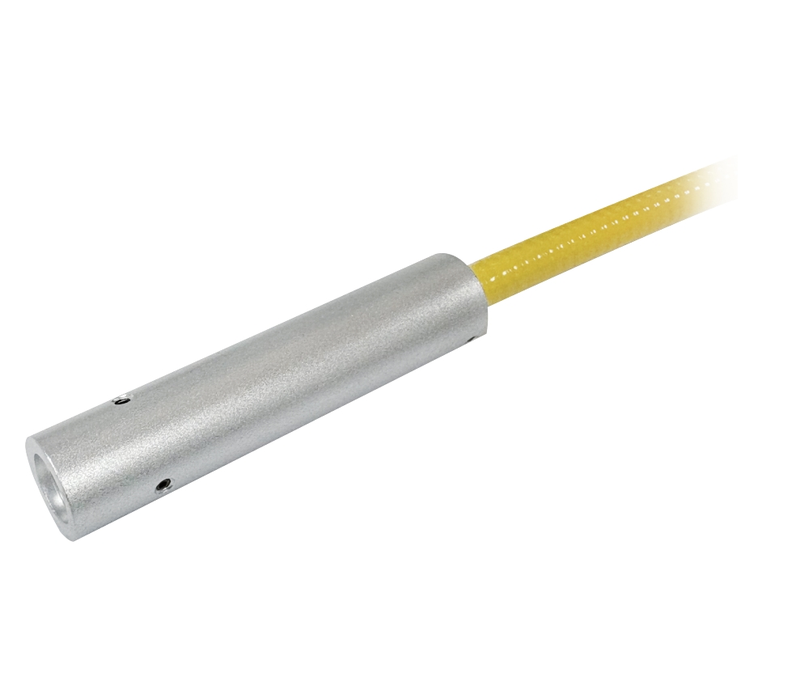

High Power Fiber Collimator
Collimators
Sicart
Center Wavelength (λc): 1064 nm Operating Wavelength Range: ± 10 nm Max. Insertion Loss (Free Space) [Max.; (Free Space)]: 0.3 dB
The 1064 nm PM Fiber Collimator is a basic element for in-line fiber optic components, such as isolator. It has low insertion loss and high return loss. The unique processing and high quality AR coating enable this PM Fiber collimator to handle high average power.
-

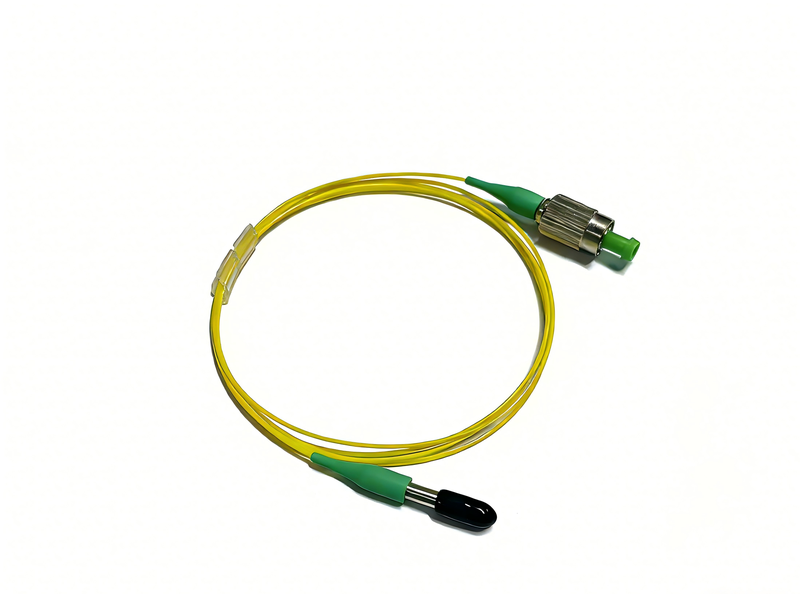

Fiber Collimator (Integrated)
Collimators
Bogaolaser
Center wavelength: 405nm Operating bandwidth [Center wavelength （nm）: 405nm]: ±20nm Return loss: ≥50 dB
Bogao Optoelectronics' fiber collimator consists of a fiber pigtail and focusing lens. It converts fiber-delivered laser light into a parallel beam through collimation and focusing. Collimation: the lens system converts light emerging from the fiber into a parallel beam, reducing divergence. Focusing: adjusting the distance between the lens and fiber end changes the focus position and working distance.
-

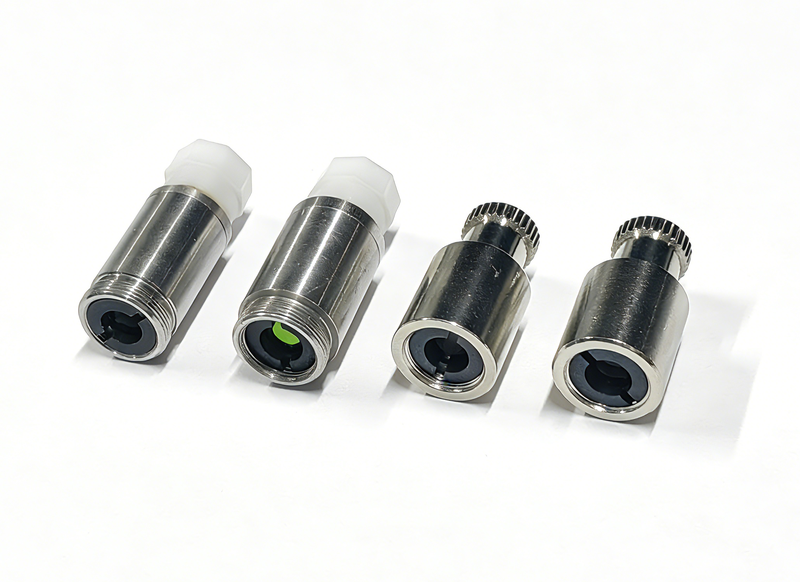

Fiber Collimator (Separate Units)
Collimators
Bogaolaser
Center wavelength: 405、450、488、505、520、638、660、785、808、850、905、940、980、1064、1310、1550 nm Operating bandwidth: ±10 nm Effective Focal Length: 4.5、6.2、8、11.2、15、18.5、24.5 mm
A fiber collimator uses a lens to convert a highly divergent beam with a small waist into a less divergent beam with a larger waist, enabling low-loss coupling into other optical devices.
-

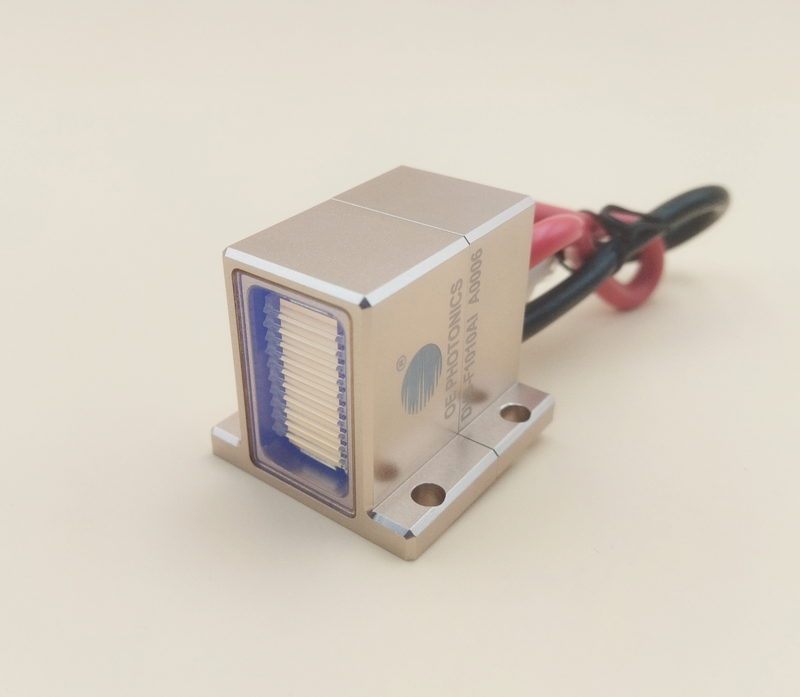

Laser Hair Removal ——DVS-F Fast-Axis Collimation Series DVS-F Collimated Series
