0603 White Light 100000K

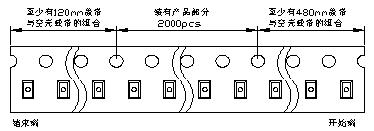

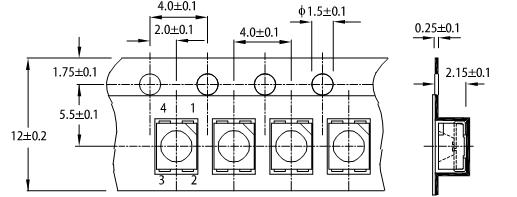

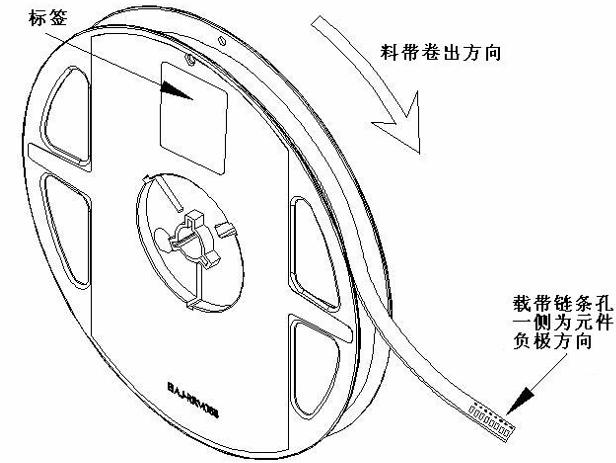

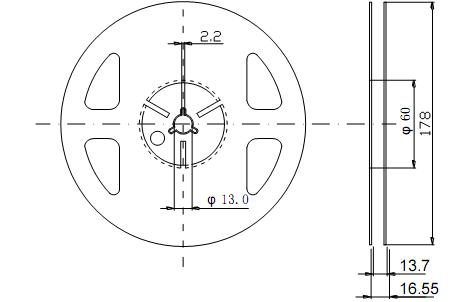

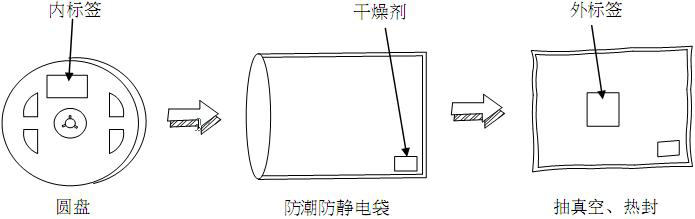

Appearance Dimensions 1.6*0.8*0.6mm, EIA Standard Packing, Eco-products, Compliance With ROHS Requirements, For Infrared Reflow soldering Process.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Appearance Dimensions | 1.6*0.8*0.6mm |
| Power Dissipation | 60mW |
| Max Pulse Current | 100mA |
| DC Forward Current | 20mA |
| Reverse breakdown Voltage | 5V |
| Electrostatic Discharge Threshold (HBM) | 2000V |
| Operating Temperature | -40~85°C |
| Storage Temperature | -40~85°C |

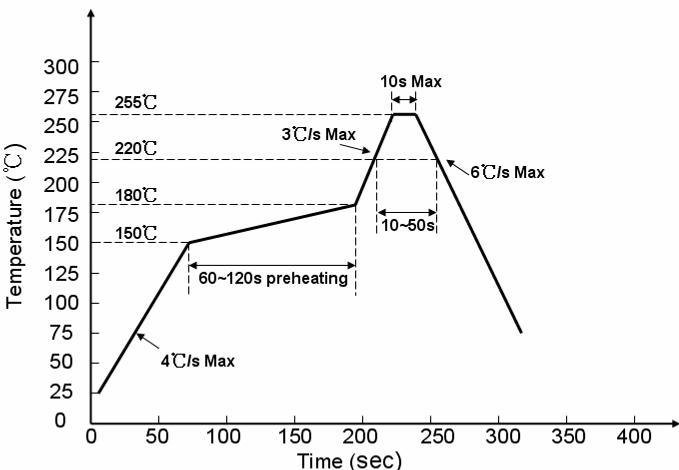

| Soldering Temperature | Reflow soldering: 260°C/10S, Hands soldering: 320°C/3S |

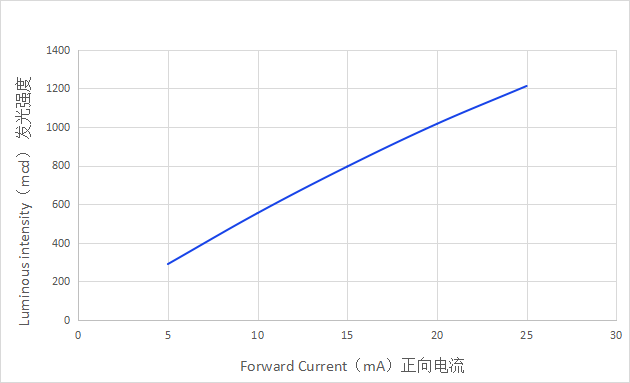

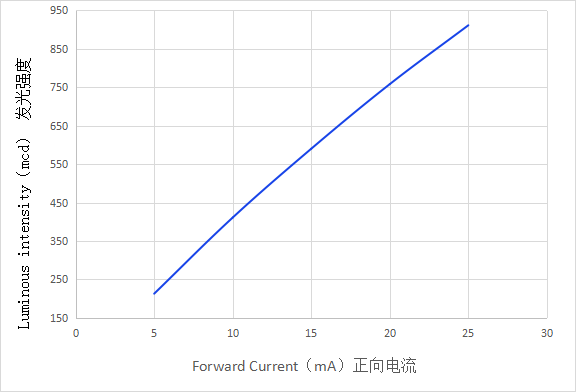

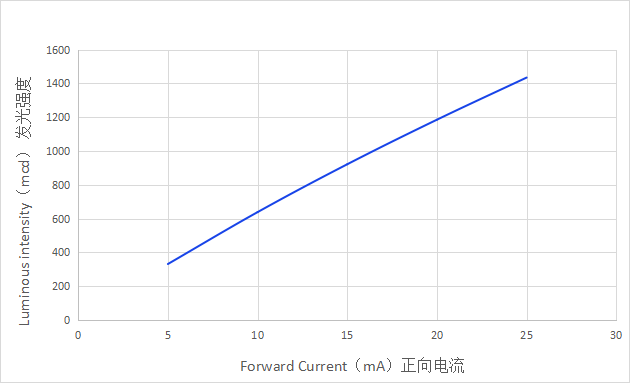

| Luminous Intensity | 650-850mcd |

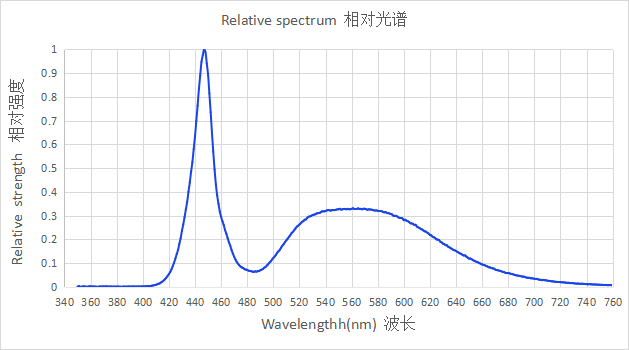

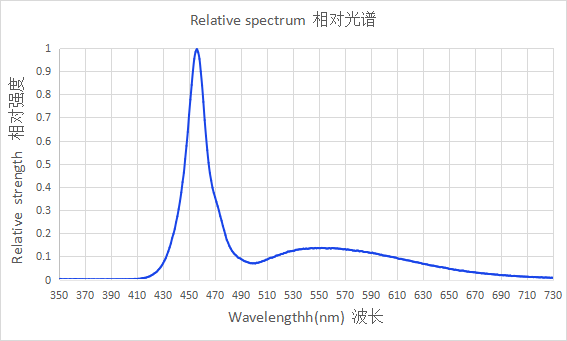

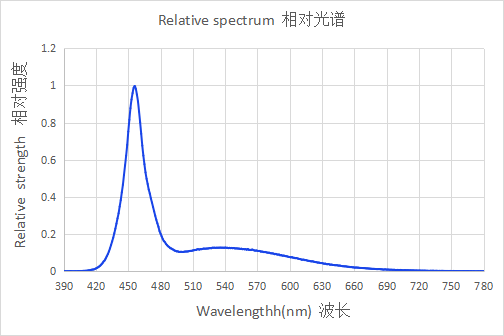

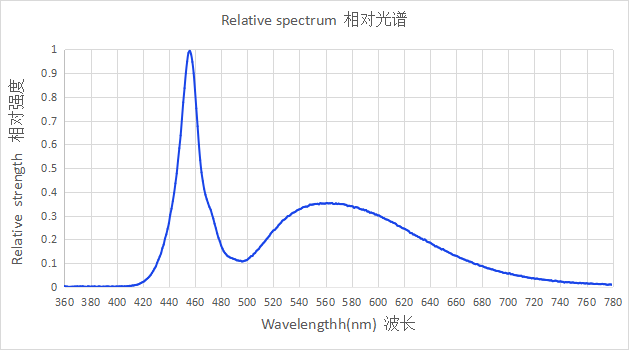

| Peak Wavelength | 456nm |

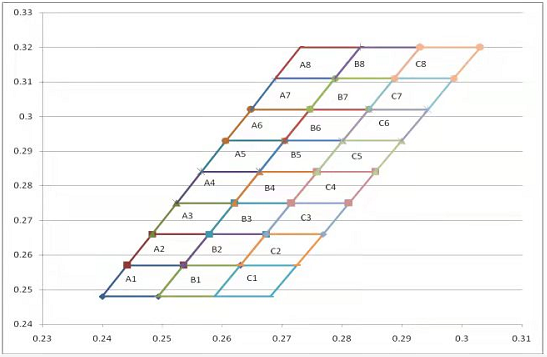

| Chromaticity Coordinates X | 0.2083 |
| Chromaticity Coordinates Y | 0.1732 |
| Color Temperature | 100000K |

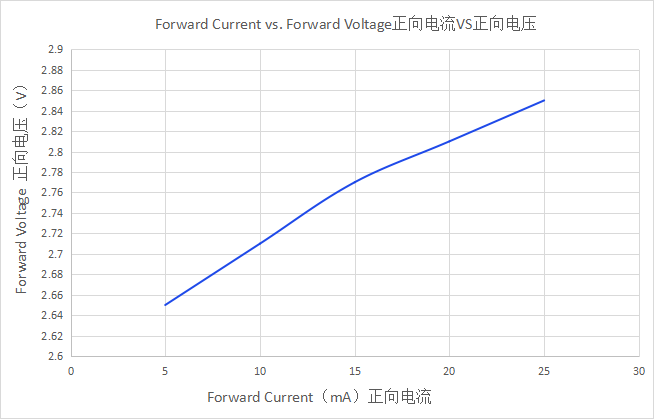

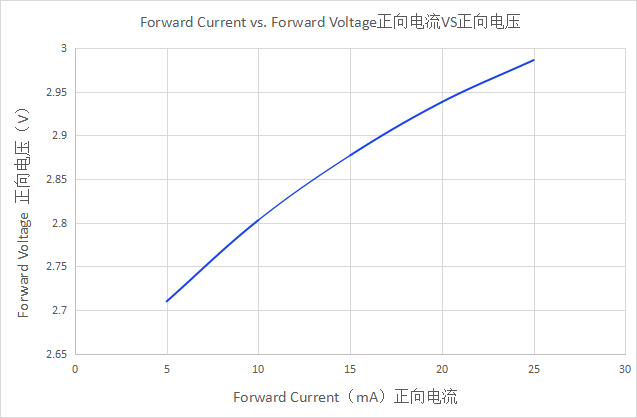

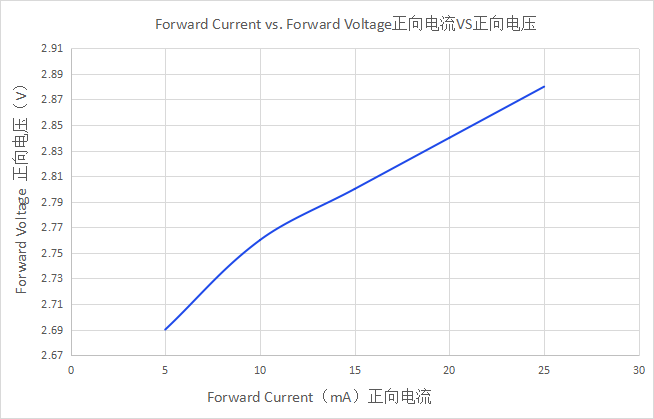

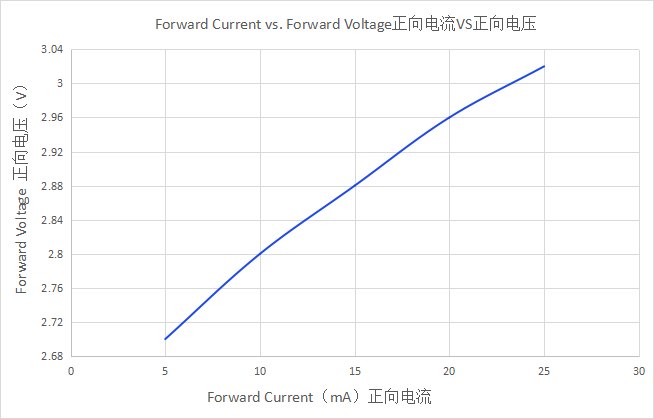

| Forward Voltage | 2.8-3.2V |
| Reverse Current | ≤10μA |

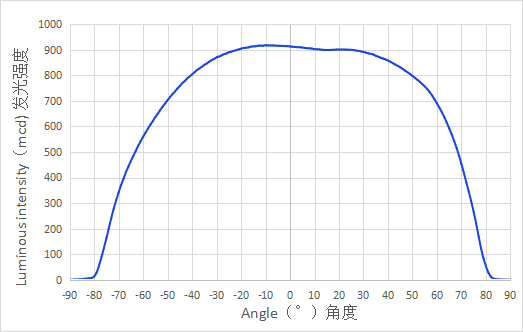

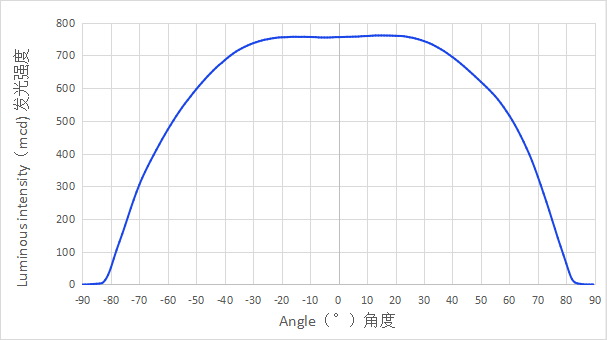

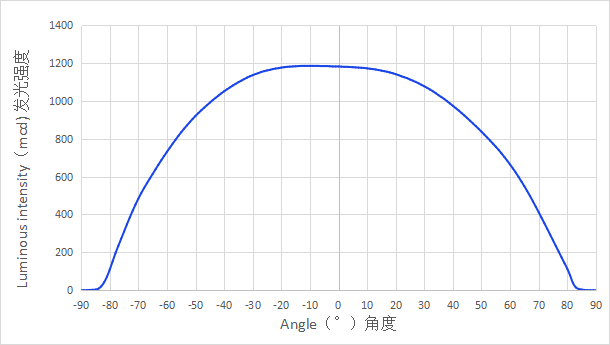

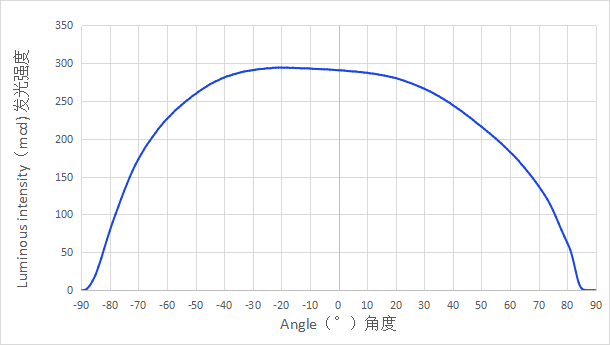

| Half Power View | 120° |
Applications
Key Features
Datasheet
